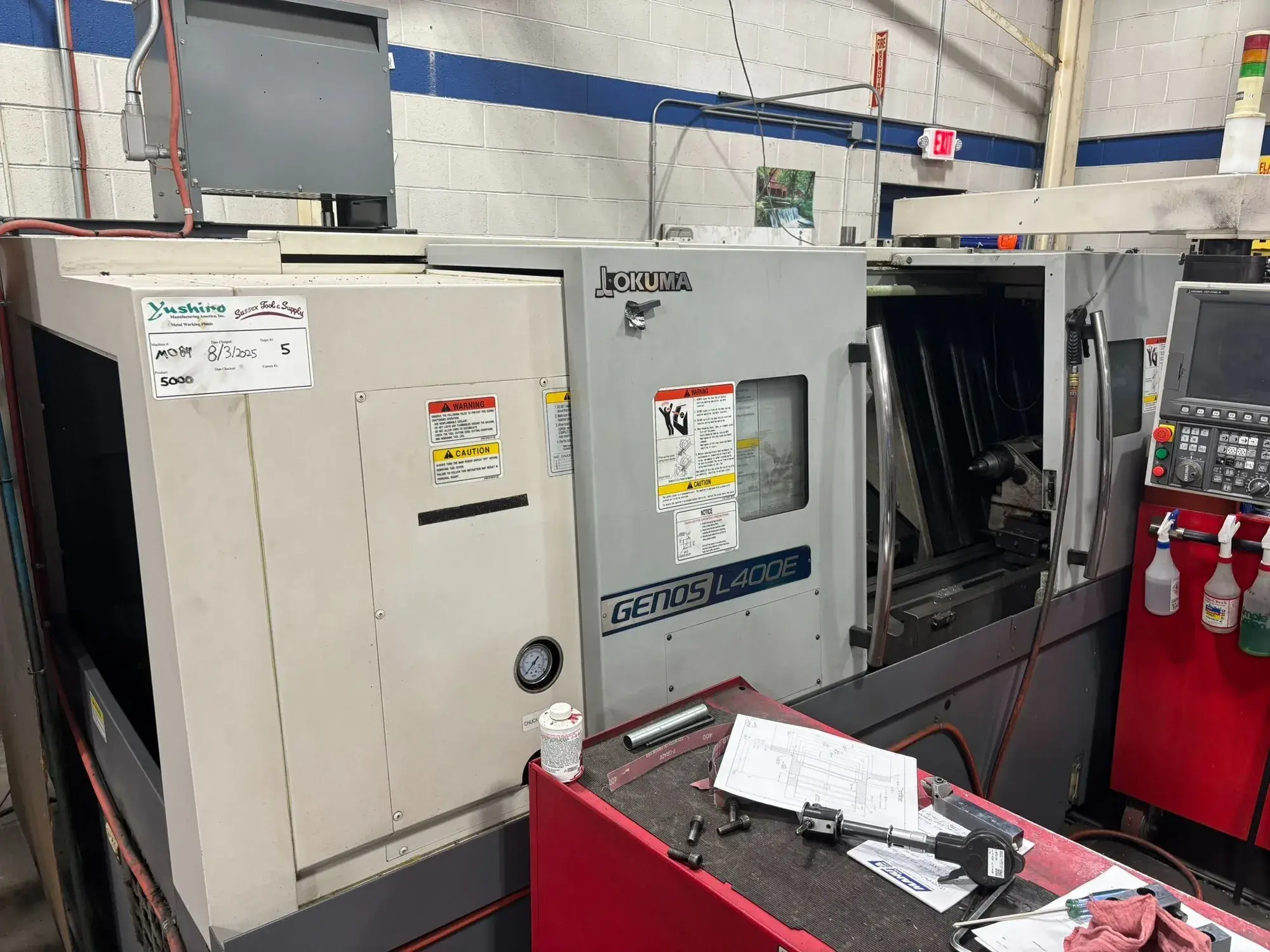

CNC lathe in used condition features a 10" 3-jaw chuck, OSP-P200L-R control, and 20 hp main motor. Offers 20.47" swing, 43.30" center distance, and 3,000 rpm spindle speed. Includes tool setter, chip conveyor, and coolant system.
| Swing | 20.47" | 519.94 mm |
| Machining Length | 43.31" | 1,100.1 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.75" | 69.85 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 15.35" | 389.89 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Weight | 10,150 pounds | 10,150 pounds |
OSP-P200L-R Control
Swing: 20.47"
Turning diameter: 15.35"
Center distance: 43.30"
Chuck size: 10"
Spindle Bore: 3.14"
X axis travel: 8.66"
Z axis travel: 45.03"
Rapid traverse (x/z): 787/985 ipm
Spindle nose: A2-8
Spindle speed: 3,000 rpm
Main motor: 20 hp
Turret capacity: 12
Machine weight: 10,150 pounds
OSP-P200L-R
10" 3-jaw Chuck
Tool Setter
Chip conveyor
Turret tool holders
Tailstock
Coolant system
