| Swing | 30" | 762 mm |
| Machining Length | 32" | 812.8 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
Specifications (subject to buyer verification):
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 30"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Equipped with (subject to buyer verification):

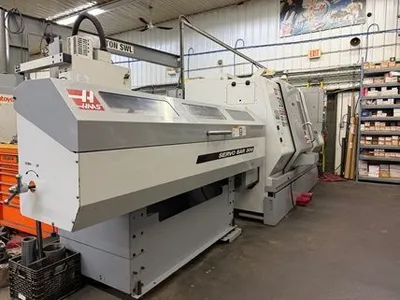

Barfeeder
