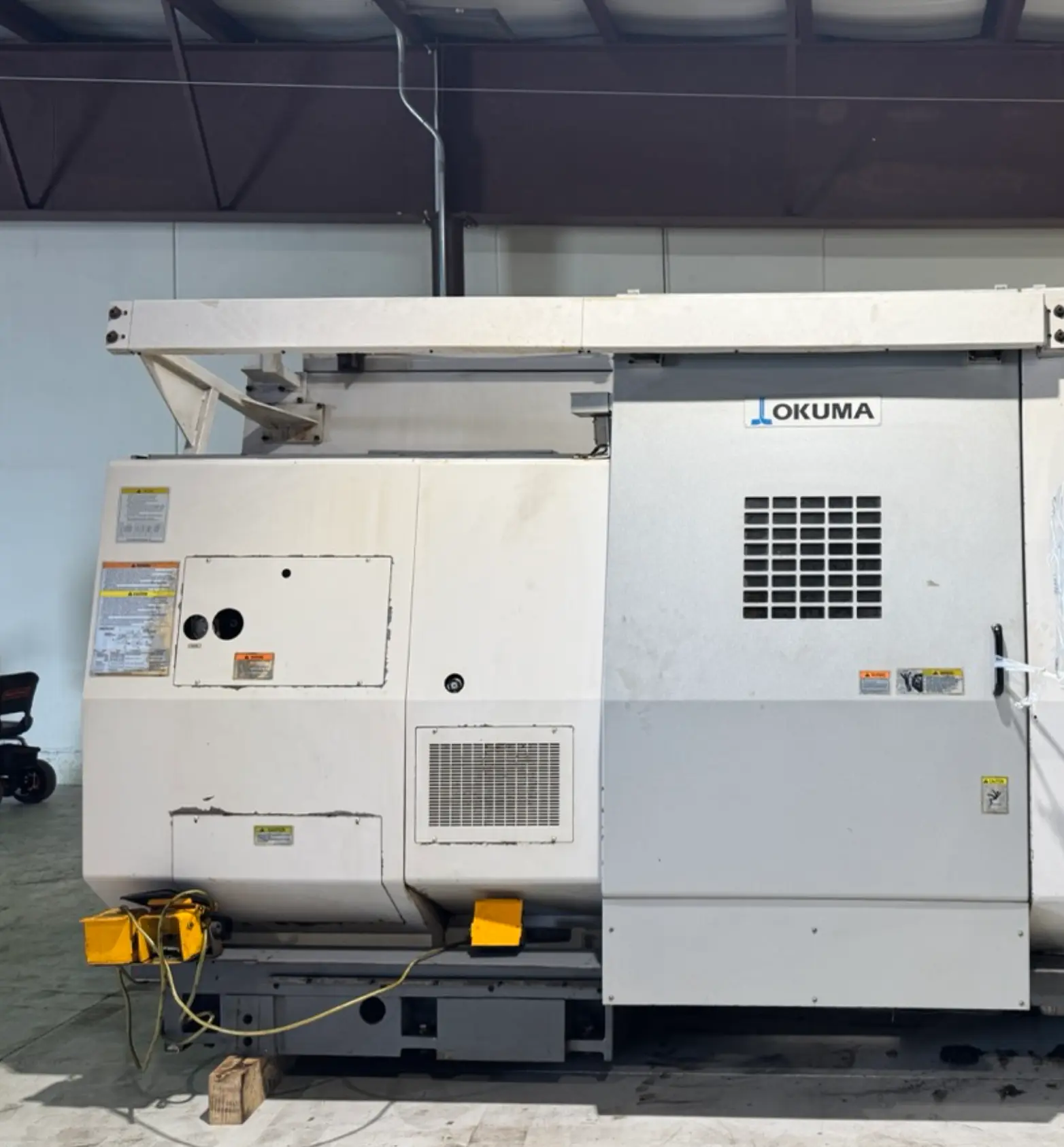

Multi-axis CNC lathe available. Features a 26″ swing over bed, 20.5″ turning diameter, and 39.4″ turning length. Includes live tool, A2-11 spindle nose, auto moonroof, touchsetters, and transformers.
| Swing | 26" | 660.4 mm |
| Machining Length | 39.4" | 1,000.8 mm |
| Chuck Size | 12" | 304.8 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 2,800 RPM | 2,800 RPM |
| Turning Dia | 20.5" | 520.7 mm |
Maximum Swing over Bed: 26″
Maximum Turning Diameter: 20.5″
Maximum Turning Length: 39.4″
Chuck Size: 12″
Spindle Bore: 4.33″
Spindle Nose: A2-11
Spindle Speed: 2800 RPM
X-Axis Travel: 13.78″
Z-Axis Travel: 42.32″
Turret Capacity: 12 positions
Rapid Traverse Rate (X/Z): 787 IPM
Motor Power: 25 HP
Live tool
A2-11 Spindle Nose
Auto Moon Roof
Touchsetters
Transformers
