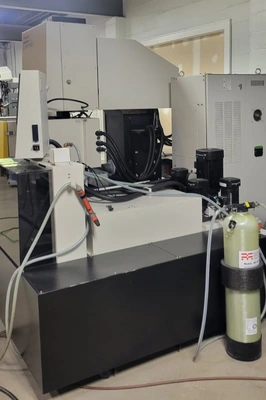

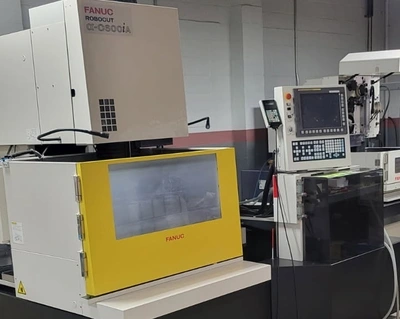

Fanuc Robocut C600iA with 16" Z Axis Wire EDM
Installed New in 2017
Equipped with:
- Fanuc series 31i-WB CNC control with newly developed iHMI Interface CNC
- 15" Color Touchscreen, (2) USB, (1) Ethernet Port
- Ai Pulse Control 3, Fanuc’s Advanced High Speed Adaptive Control
- NEW Flexible Discharge Pulse Control Circuit (FPC)
- AWF3 (NEW) Automatic Wire Theader (10 sec. spark to spark).
- Thermal Displacement Compensation
- Heidenhain Linear Glass Scales (X and Y Axis only)
- Anti-Crash protection (X, Y, U, V, Z)
- Daikin Electric Chiller, Model AKW459C
- Manuals
| # of Axis | 5 | 5 |
| Table Size - L | 35.43 in | |
| Table Size - W | 23.62 in | |
| Table Load Capacity | 3550 lb | |
| X - Axis Travel | 23.6 in | |
| Y - Axis Travel | 15.7 in | |
| Z - Axis Travel | 15.77 in | |
| U/V - Axis Travel | 3.937 in | |
| Taper Capacity | 30 deg | 30° |
| Auto Threading (Yes/No) | Yes | Yes |
| Wire Diameter - Min | 0.004 in | |
| Wire Diameter - Max | 0.012 in | |
| Dielectric Tank Capacity | 210 gal | |
| Submerged (Yes/No) | Yes | Yes |
| Chiller included | Yes | Yes |
| Power Requirement | 220 va | 220 V·A |
| Transformer Included | No | No |
| Shipping Brackets Included | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 104" x 95" x 98" tall | 104" x 95" x 98" tall |
| Weight | 7,920 lbs | 7,920 lbs |
