Year: 2004
Condition: good - repainted

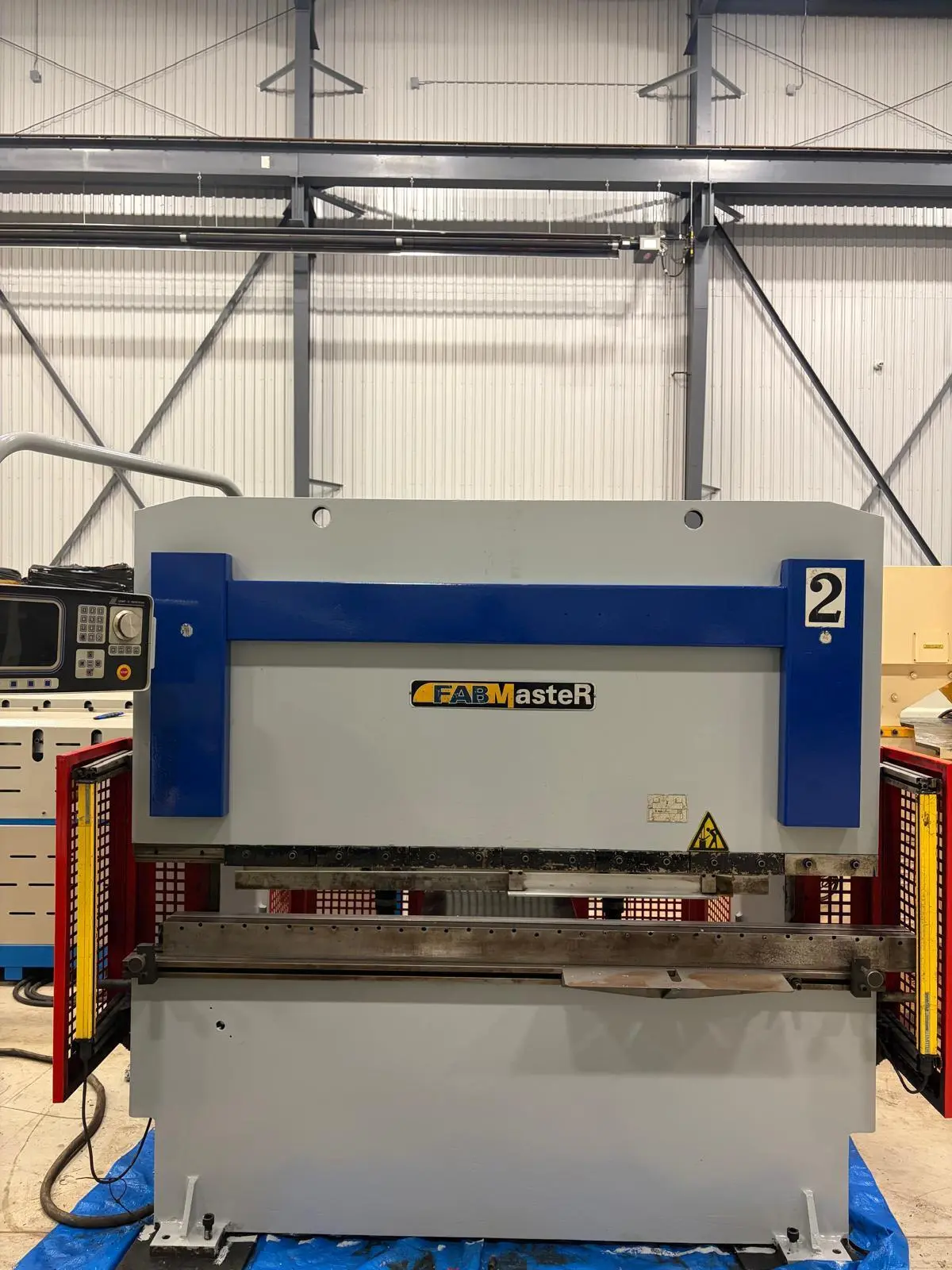

44 TON PPT44-6 FAB MASTER PRESS BRAKE
Model: PPT 44-6
Serial no. 4341
Mfg Date: 10/2004
Power: 575V 60Hz 3PH
Full load current: 7A
Circuit protector: 10A
Max Cap: 44 ton
Max Gw: 2500 kg
PSI: 60,000psi
Bed Length: 79'' inches
Back Gauge Control: COMP-U-BEND 61000
MACHINE DIMENSIONS: 70'' x 95'' x 80''
| Bending Length | 79" | 79" |
| Type | HYD | HYD |
| Max Tonnage | 44 | 44 |
| # of Axis | 2 (Y - X) | 2 (Y - X) |
| Free Down Speed | TBA | TBA |
| Bending Speed | 10mm/sec | 10mm/sec |
| Return Speed | TBA | TBA |
| Stroke | 5" | 5" |
| Backguage Stroke (X) | 20" | 20" |
| Backguage Stroke (R) | N/A | N/A |
| Distance Between Housings | 64" | 64" |
| Crowning | N/A | N/A |
| Throat Depth | 8" | 8" |
| Daylight | TBA | TBA |
| Voltage | 575V/3ph/60hz | 575V/3ph/60hz |
| Dimensions | 70'' x 95'' x 80'' | 70'' x 95'' x 80'' |
| Weight | Approx 5,500lbs | Approx 5,500lbs |
Specifications are subject to change and should be verified before purchase.
