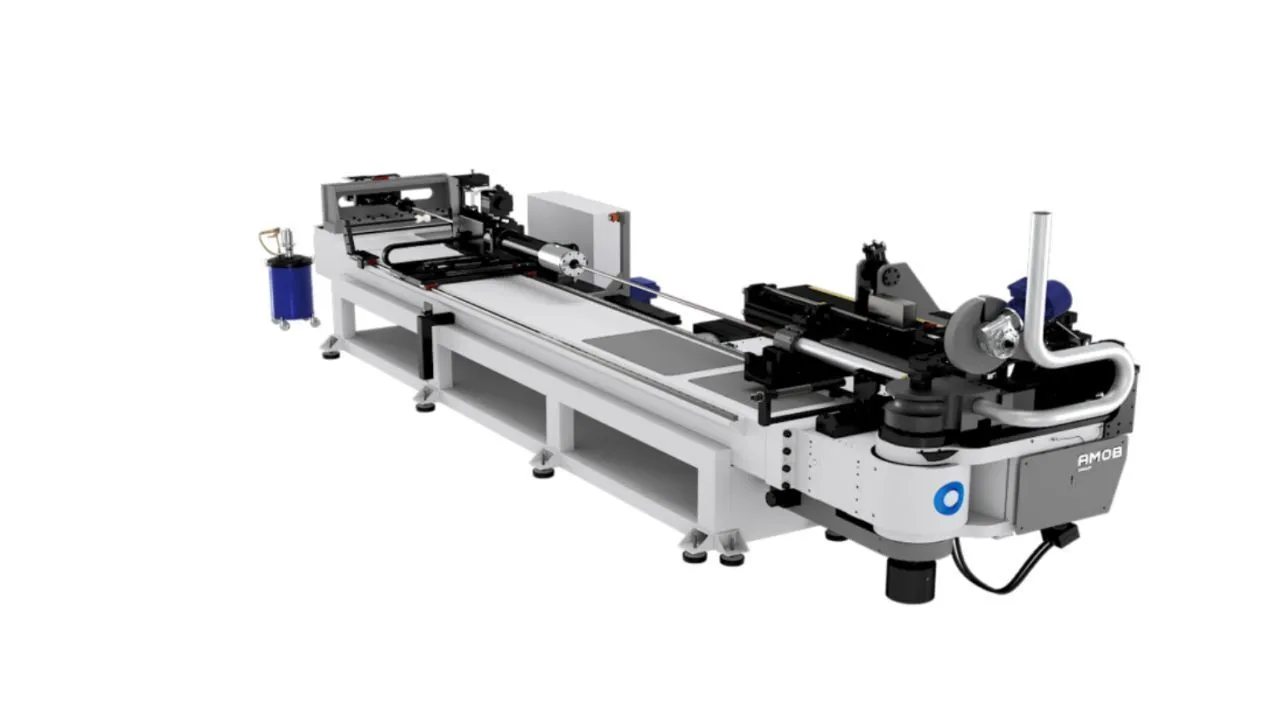

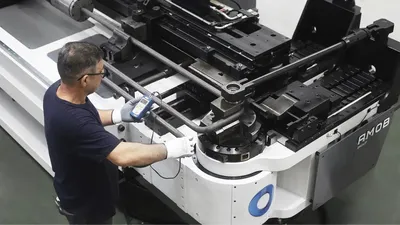

NEW AMOB GROUP CH BOOSTER SERIES HYDRAULIC TUBE BENDING MACHINE

The AMOB CH Booster Series Hydraulic Tube Bending Machines are engineered for demanding applications requiring tight-radius bending, reduced ovality, and superior tube quality. Designed for industries such as heat exchangers, HVAC, refrigeration, and ventilation, these advanced hydraulic benders combine booster-assisted bending technology with exceptional precision and production flexibility.

Capable of processing tubes up to 270 mm OD, the CH Booster Series delivers high-performance bending with programmable booster control, optional integrated cutting systems, mandrel lubrication, and advanced automation features for efficient, high-quality tube fabrication.

Machine Type: Hydraulic Tube Bending Machine
Tube Capacity: Up to 270 mm OD
Machine Configuration: Single-Stack Design
Booster Control Range: 0° – 192°
Radius Capability: Greater Than 0.8D CLR/OD Ratios
Bending Capability: Tight Radius & Bend-on-Bend Applications
Lubrication System: Automatic Centralized Lubrication
Mandrel System: Programmable Mandrel Lubrication
Simulation & Diagnostics: Electronic Motion Control Monitoring
Optional Automation: Loading, Cutting & Laser Referencing Systems

AVAILABLE MODELS
CH 80 — Up to 80 mm
CH 120 — Up to 120 mm
CH 170 — Up to 170 mm
CH 220 — Up to 220 mm
CH 270 — Up to 270 mm

Hydraulic Booster Tube Bending System
Integrated Booster Mechanism
Secondary Clamp System
Electronic Motion Control Monitoring
Programmable Booster Control
Automatic Centralized Lubrication
Mandrel Lubrication System
Rotary Clamp Die System
Heavy-Duty Machine Construction
Single-Stack Bending Configuration
