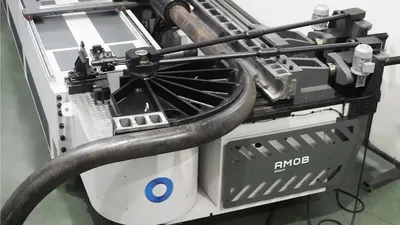

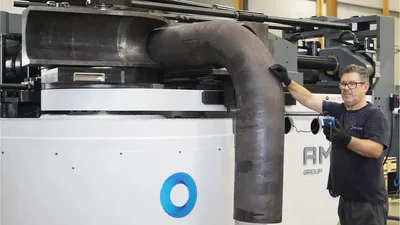

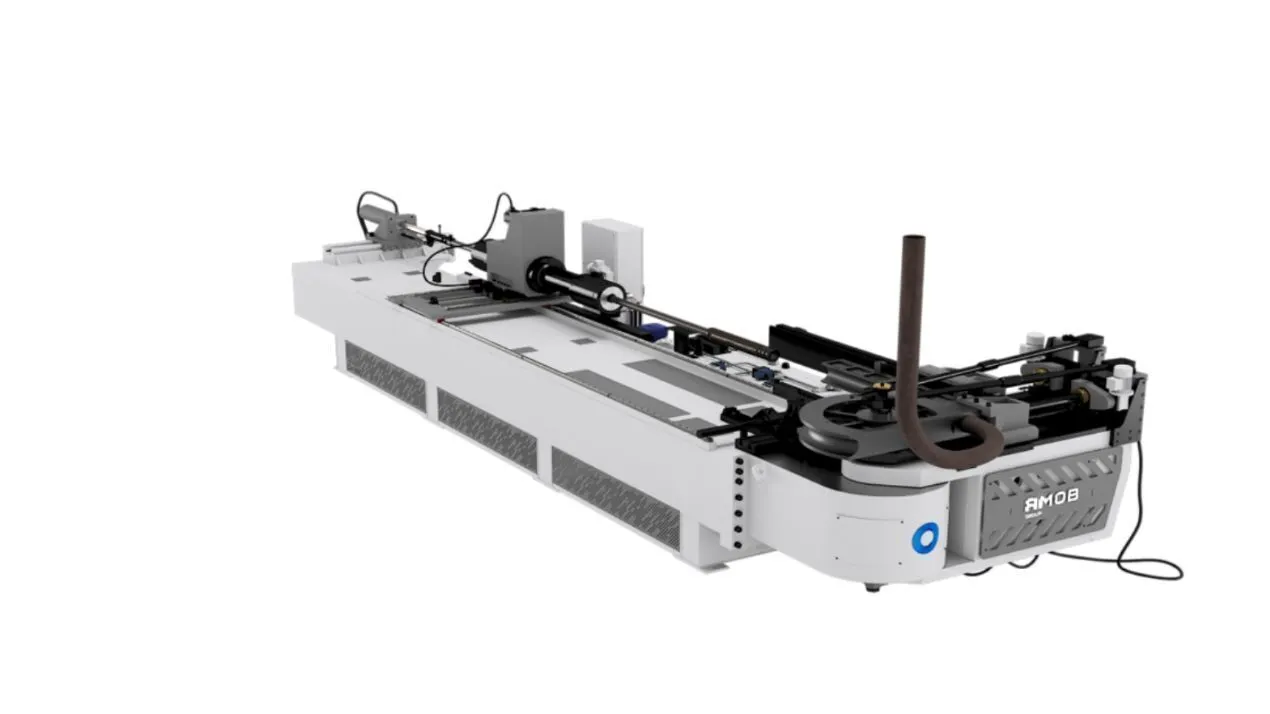

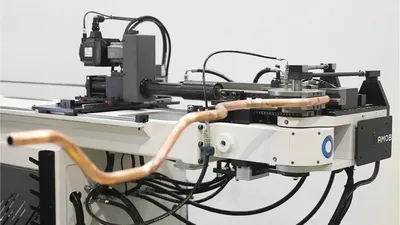

NEW AMOB GROUP CH SERIES HYDRAULIC TUBE BENDING MACHINE

The AMOB CH Series Hydraulic Tube Bending Machines deliver powerful and precise tube bending performance for a wide range of industrial applications. Designed to process tubes from 4 mm up to 420 mm OD, these robust single-stack machines provide exceptional rigidity, stability, and accuracy when forming high-strength, thick-wall, and large-diameter tubes.
Available in full CNC configurations with automatic axis control, spring-back compensation, and 3D anti-collision simulation, the CH Series combines advanced bending technology with reliable hydraulic performance for demanding fabrication environments.

Tube Capacity: 4 mm – 420 mm OD
Machine Type: Hydraulic Tube Bender
Machine Configuration: Single-Stack Design
CNC Capability: Full CNC Automatic Axis Control
Radius Capability: Less Than 1.5D
Spring-Back Compensation: Automatic
Simulation System: 3D Anti-Collision Simulation
Material Compatibility: High-Strength, Thick & Thin-Walled Tubes
Lubrication System: Centralized Automatic Lubrication
Optional Automation: Tube Loading & Cutting Systems

AVAILABLE MODELS
CH 35 — Up to 35 mm
CH 42 — Up to 42 mm
CH 60 — Up to 60 mm
CH 80 — Up to 80 mm
CH 120 — Up to 120 mm
CH 170 — Up to 170 mm
CH 220 — Up to 220 mm
CH 270 — Up to 270 mm
CH 320 — Up to 320 mm
CH 350 — Up to 350 mm

Hydraulic Tube Bending System
Full CNC Automatic Axis Control
Spring-Back Compensation
3D Anti-Collision Simulation
Electronic Motion Control Monitoring
Centralized Lubrication System
Single-Stack Bending Configuration
Real-Time Diagnostics & Warning System
Heavy-Duty Machine Construction
