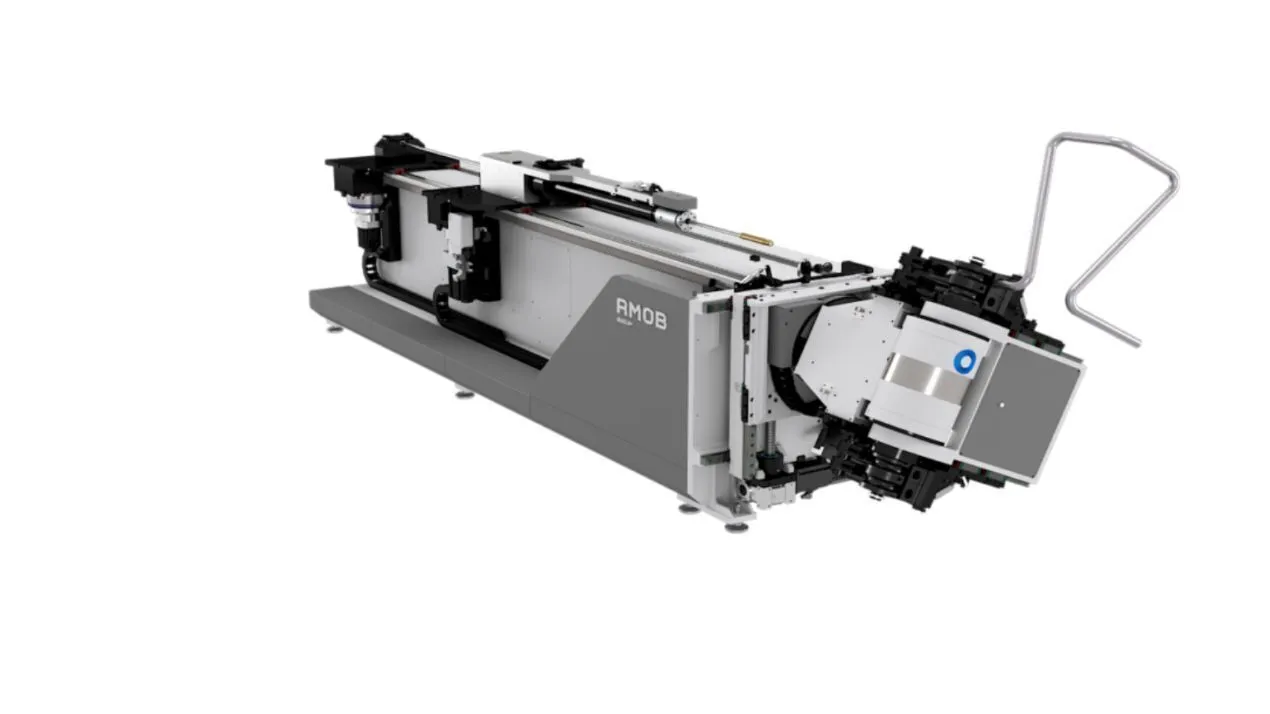

NEW AMOB GROUP EMOB 2 BEND SERIES FULLY ELECTRIC TUBE BENDING MACHINE

The AMOB eMOB 2 Bend Series Fully Electric Tube Bending Machines deliver advanced right and left CNC tube bending technology with exceptional precision, flexibility, and energy efficiency. Designed to process tubes from 5 mm up to 63 mm OD, these machines provide high-quality bend performance with tight radii, reduced setup times, and minimal material waste.

Featuring multi-stack tooling, automatic spring-back compensation, and fully electric servo-controlled operation, the eMOB 2 Bend Series is ideal for complex tube fabrication applications requiring speed, repeatability, and superior bending accuracy.

Tube Capacity: 5 mm – 63 mm OD
Machine Type: Fully Electric CNC Tube Bender
Bending Direction: Right & Left In-Cycle Bending
Bending Capability: Fixed & Variable Radius Bending
Tool Capacity: Multi-Stack Tooling
Axis Control: 11 Fully Interpolated Axes
Drive System: Absolute Servo Motors
Minimum CLR Capability: Up to 1D Radius
Spring-Back Compensation: Automatic In-Cycle Compensation
Material Compatibility: Round & Special Section Tubes

AVAILABLE MODELS
eMOB 35 — Up to 35 mm
eMOB 52 — Up to 52 mm
eMOB 63 — Up to 63 mm

Fully Electric CNC Bending System
Right & Left Rotative Bending Head
Multi-Stack Tooling Capability
Absolute Servo Motor Control
Wiper Die Support System
Carriage Booster System
Automatic Spring-Back Compensation
In-Cycle Correction System
Tooling Configuration Storage
Anti-Collision System
Electronic Motion Control Monitoring
11-Axis Interpolation
