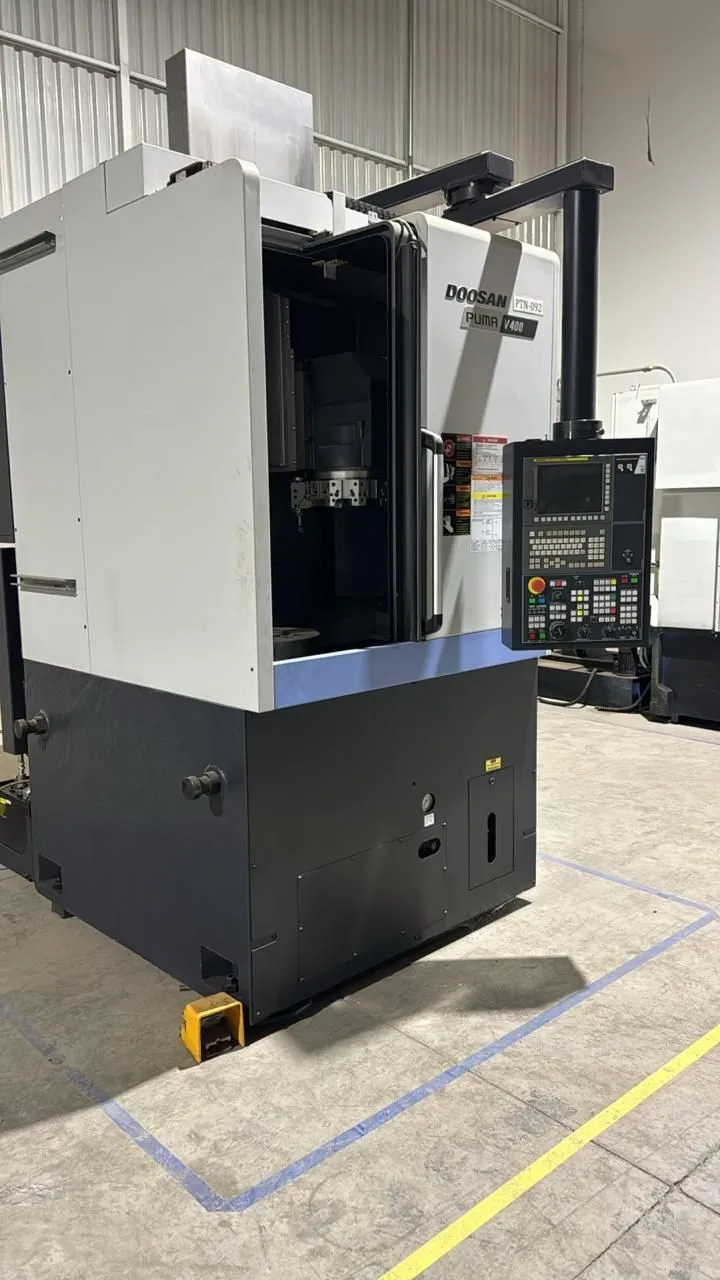

USED 2018 DOOSAN PUMA V400R
Overview
Description
The 2018 Doosan Puma V400R is a powerful and reliable vertical turning center built for heavy-duty machining applications. Featuring rigid box-way construction, a high-torque spindle, and excellent chip evacuation, this machine delivers consistent precision and productivity for large-part manufacturing. Well maintained and production ready, it’s an excellent choice for shops looking to add dependable CNC turning capacity at a great value.
Specifications
| Table Dia | 15.75" | 400.05 mm |
|---|---|---|
| Swing | 23.6" | 599.44 mm |
| Work Ht-U/R | 19.7" | 500.38 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Control | CNC | CNC |
| Dimensions | 118 in x 79 in x 114 in | 118 in x 79 in x 114 in |
| Weight | 18700 lbs | 18700 lbs |
Maximum Turning Diameter: 19.5"
Maximum Turning Length: 18.1"
X-Axis Travel: 10.6"
Z-Axis Travel: 19.2"
Rapid Traverse Rate (X/Z): 787 IPM
Chuck Size: 15"
Maximum Table Load: 1100 lbs
Spindle to Table Distance: 45.4"
Spindle Motor Power: 30 HP
Spindle Speed: 3,000 RPM
Torque: 539 ft-lbs
Turret Stations: 12 Slot
Shank: BMT-KEY
Boring Bar Diameter: 2"
Control: Fanuc 0i-T
Approximate Dims: 58" x 85" x 130"
Approximate Weight: 13,200 lbs
