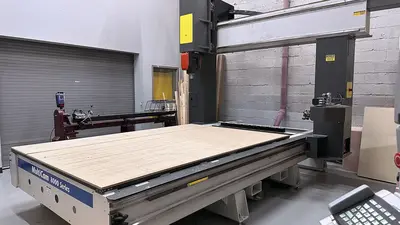

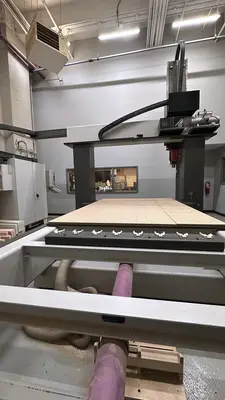

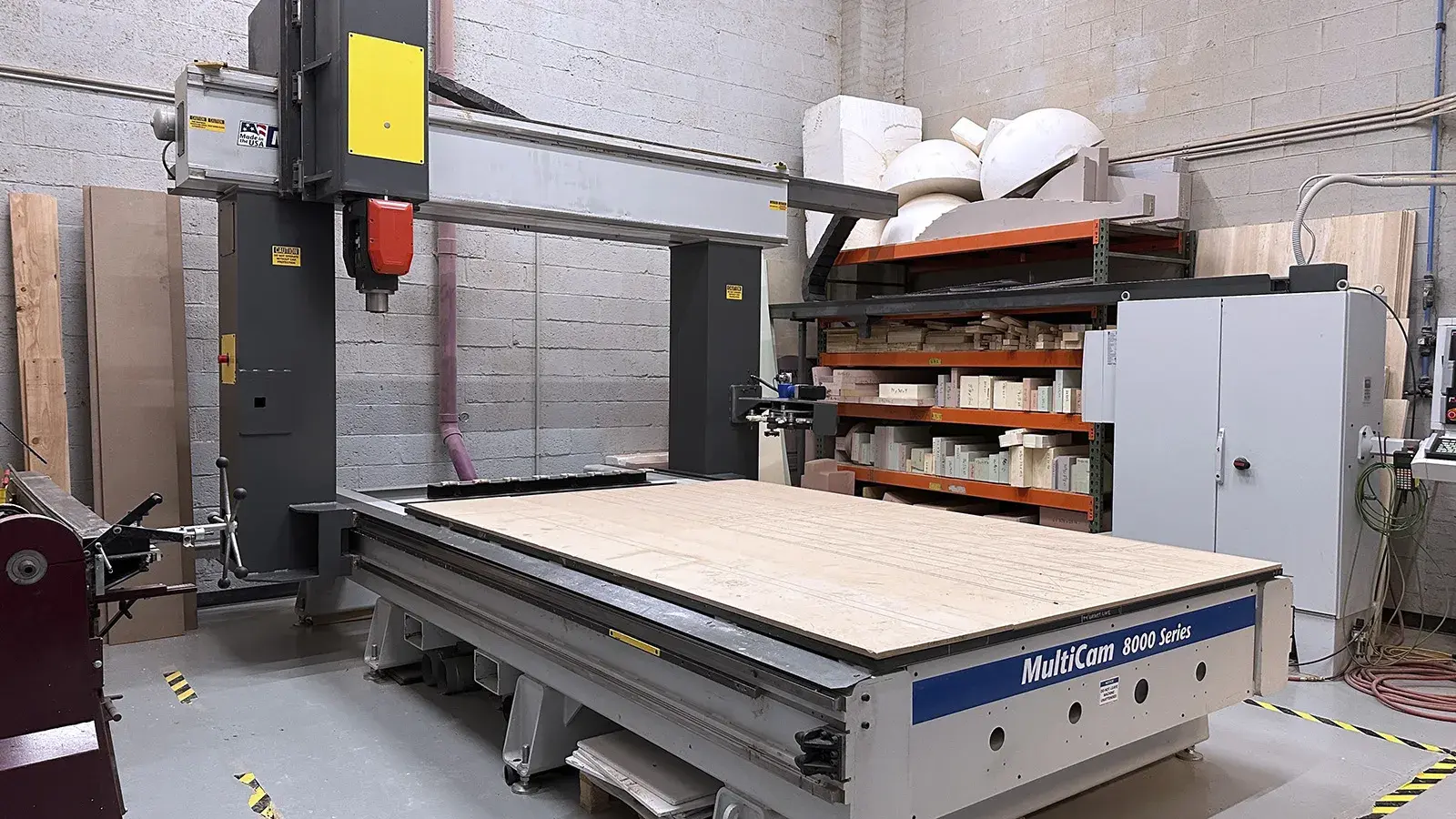

USED 2016 MULTICAM - MASTERCAM SERIES 8000 - 8-304-R

14HP HSK Spindle| 6' x 10' Vacuum bed| 36" Z| 24000 RPM
The Multicam 8000 CNC 5-Axis Router (2015) is a heavy-duty industrial machining solution built for precision 3D cutting, routing, and complex multi-axis manufacturing. Designed for wood, plastics, composites, and non-ferrous metals, this high-performance CNC router delivers accurate 5-axis machining, reduced setup times, and efficient production for aerospace, automotive, cabinetry, sign making, and advanced fabrication applications.

Table width: 80"
Table Length: 121"
Number of Axis: 5
X-Axis Travel: 84"
Y-Axis Travel: 120"
Z-Axis Travel: 36"
Spindle Speed: 24,000 RPM
Tool Changer: 12 Station
Number of Spindles: 1
Spindle Motor: 20 HP

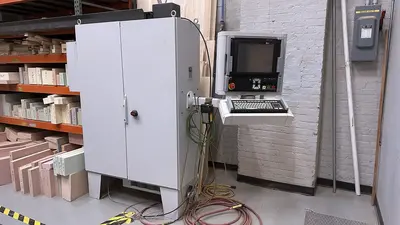

Control: Multicam EZ Control
Max Rapid Traverse: (X,Y): 2,700 IPM (Z): 800 IPM
Max Cutting Speed: 2,200 IPM
Table Height: 34"
Footprint: 150" x 196" x 137"

Extended 36" Z-Axis Clearance
OSAI 10 Control

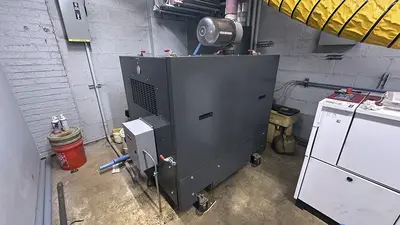

Vacuum Table
14HP HSK Spindle
Linear tool change station
Rotary
