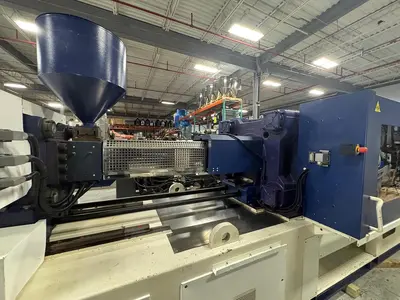

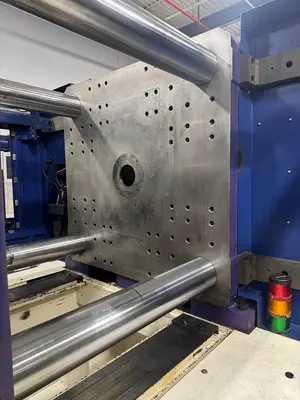

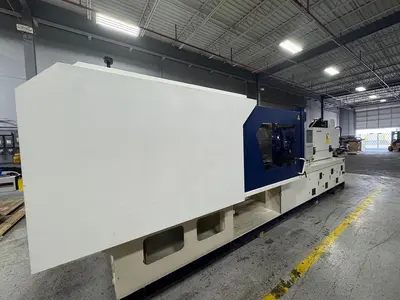

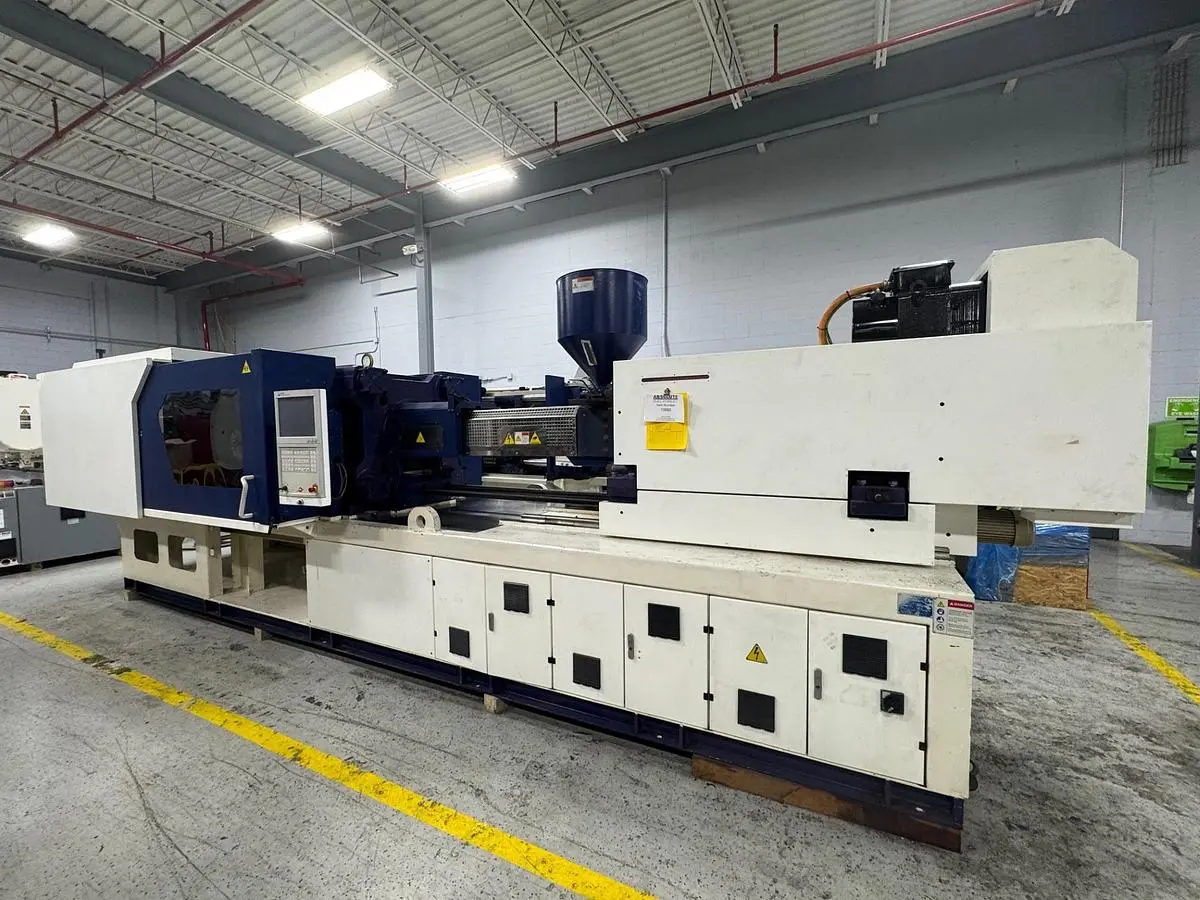

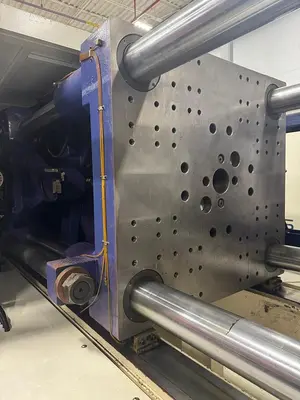

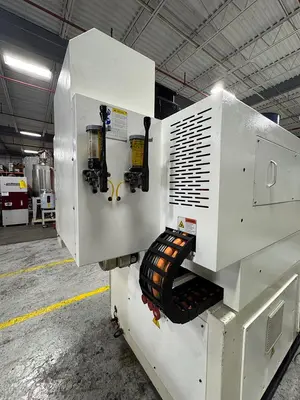

USED 2010 HAITIAN VE 3000/1400

The Haitian Zhafir VE 3000/1400 is a used injection molding machine from 2010 with a robust clamping force of 337 tons. Featuring a B-Screw, it offers a maximum shot size of 23.56 ounces for precision plastic molding applications. The machine accommodates various production needs with a screw diameter of 60mm and flexible platen dimensions of 39.37 x 37.40 inches.

Designed for versatility, the VE 3000/1400 provides tiebar spacing at 26.38 x 24.41 inches and supports mold height ranging from 9.45 to 25.20 inches. It is equipped to handle a wide array of mold sizes, complemented by a substantial opening stroke of 48.82 inches and an ejector stroke of 5.91 inches. The toggle stroke measures at 23.62 inches, ensuring efficient mold opening and closing.

Operating on a 460V/3P/60Hz electrical system, this machine is designed to meet industrial standards for performance and reliability. Its comprehensive design and specifications make it well-suited for high-demand production environments, providing consistent results and operational stability.

US Tonnage: 337
Shot Size (oz. of PS): 23.56
Screw Diameter: 60mm
Platen Size (in.): 39.37 x 37.40
Tiebar Spacing (HxV) in.: 26.38 x 24.41
Max Mold Height (in.): 25.20
Min Mold Height (in.): 9.45
Opening Stroke (in.): 48.82
Ejector Stroke (in.): 5.91
Toggle Stroke (in.): 23.62
Voltage: 460V/3P/60Hz
