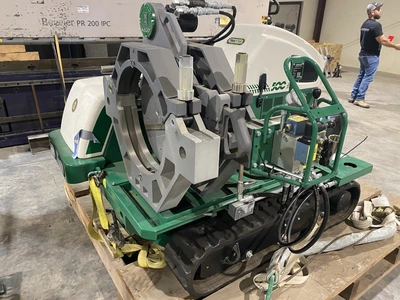

Pipe Fusion Capacity: 6″ IPS – 20″ OD
Machine Weight: 2,700 Lbs
Facer Weight: 84 Lbs
6″ IPS To 12″ DIPS Heater Weight: 28 Lbs
12″ IPS To 20″ OD Heater Weight: 39 Lbs
Maximum Hydraulic Pressure: 2,300 PSI
Hydraulic Reservoir Capacity: 12 Gallons
Engine Horsepower: 23 HP
Engine Configuration: 3 Cylinder Liquid Cooled Diesel
Fuel Tank Capacity: 11 Gallons
Operating Time Per Tank: 8 Hours
Starting System: Electric
Heater Power: 4,000 Watt
Facer Drive: Hydraulic
Frame Construction: Welded Steel
Track Type: Rubber Crawler Tracks
Travel Speed Low: 1.8 MPH
Travel Speed High: 2.1 MPH
Lifting Points: Integrated Lift Points And Lifting Assembly
Equipped With
20″ Carriage With Medium Cylinder Force
On Board Generator
Self Contained Diesel Power
All Available Manuals
