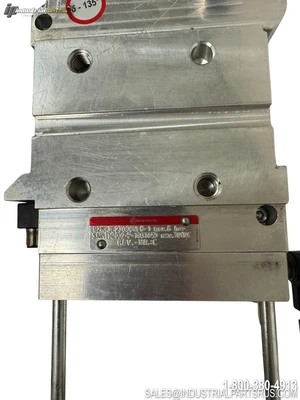

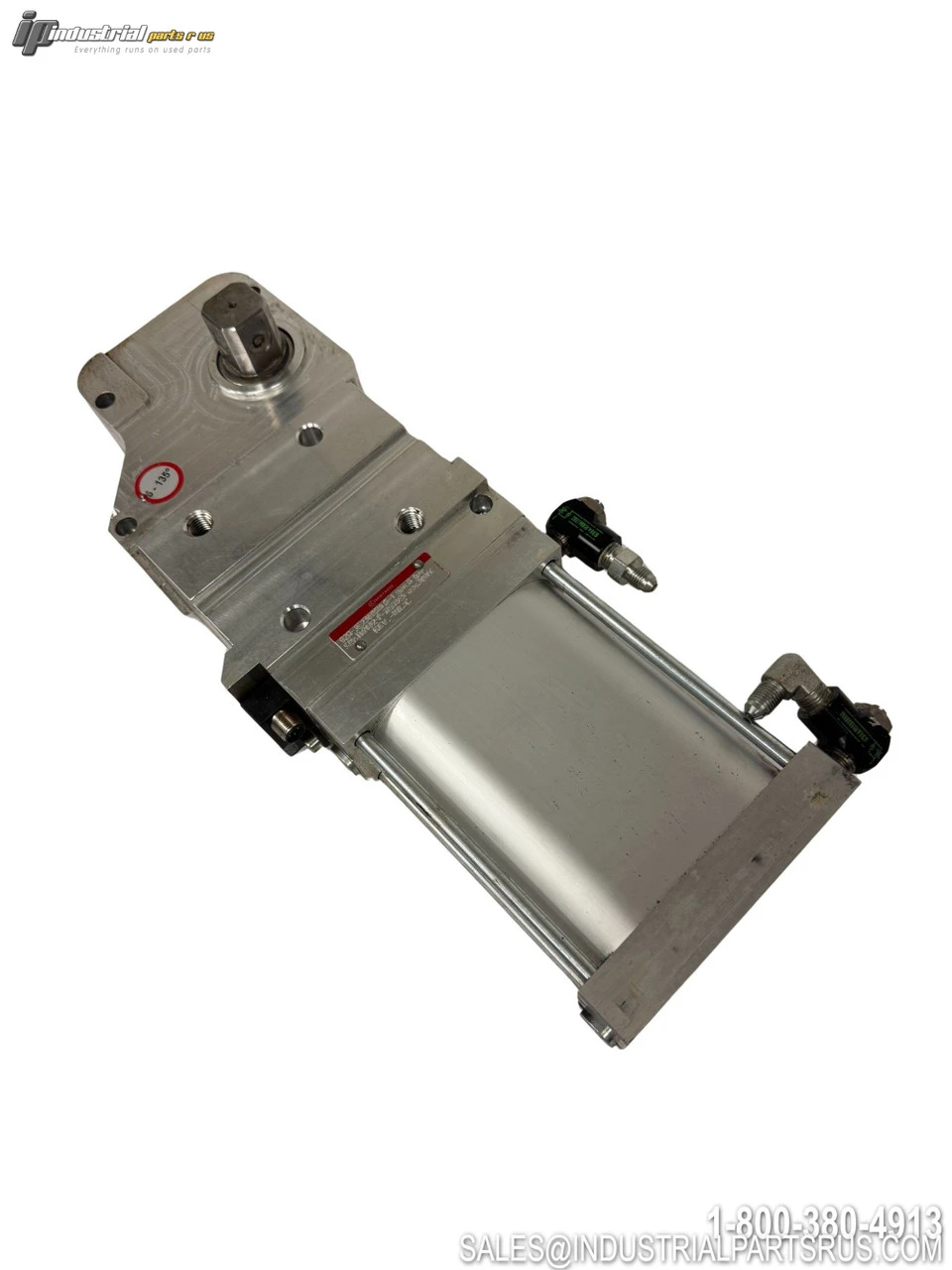

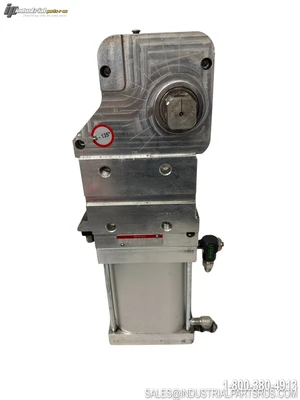

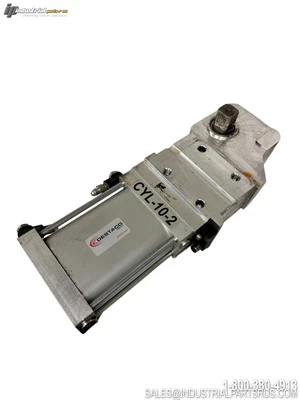

USED DESTACO 82M-3E23008NL8-1

The Destaco 82M-3E23008NL8-1 is an enclosed pneumatic power clamp from the 82M-3E series designed for industrial clamping applications. This series provides automotive and sheet metal processing customers with superior holding power in a versatile, user-friendly and low-maintenance package, well suited for manual and automated fixture welding, positioning and locating. The 82M-3E Series offers multiple mounting and shaft options for Euro/NAAMS standards, with field adjustable opening angles, multiple cylinder sizes and first-in-class manual locking.
Specification
Value
Brand
Destaco
Model/Part Number
82M-3E23008NL8-1
Product Type
Enclosed Pneumatic Power Clamp
Series
82M-3E
Cylinder Bore
80mm (3.15")
Opening Angle
5-135°
Clamp Arm Style
Lateral Arm
Port Size
1"
Weight
19.14 lbs (8.7 kg)
Holding Torque (Max)
220.0 ft-lb (3000.0 Nm)
Clamping Arm Torque at 5 Bar
627.0 ft-lb (850.0 Nm)
Air Consumption per Double Stroke at 72 psi
0.18 ft³
Application
Clamping
Manual Unlocking
Yes (in case of air pressure loss)
We warranty all items for 30 days from date of purchase.

SKU: AI1579
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 20.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 18.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Destaco
Part Number: 82M-3E23008NL8-1
Shelf: K-69
Bore Diameter: 80 mm
Model: 82M-3E23008NL8-1
MPN: 82M-3E23008NL8-1
Type: Pneumatic Cylinder
