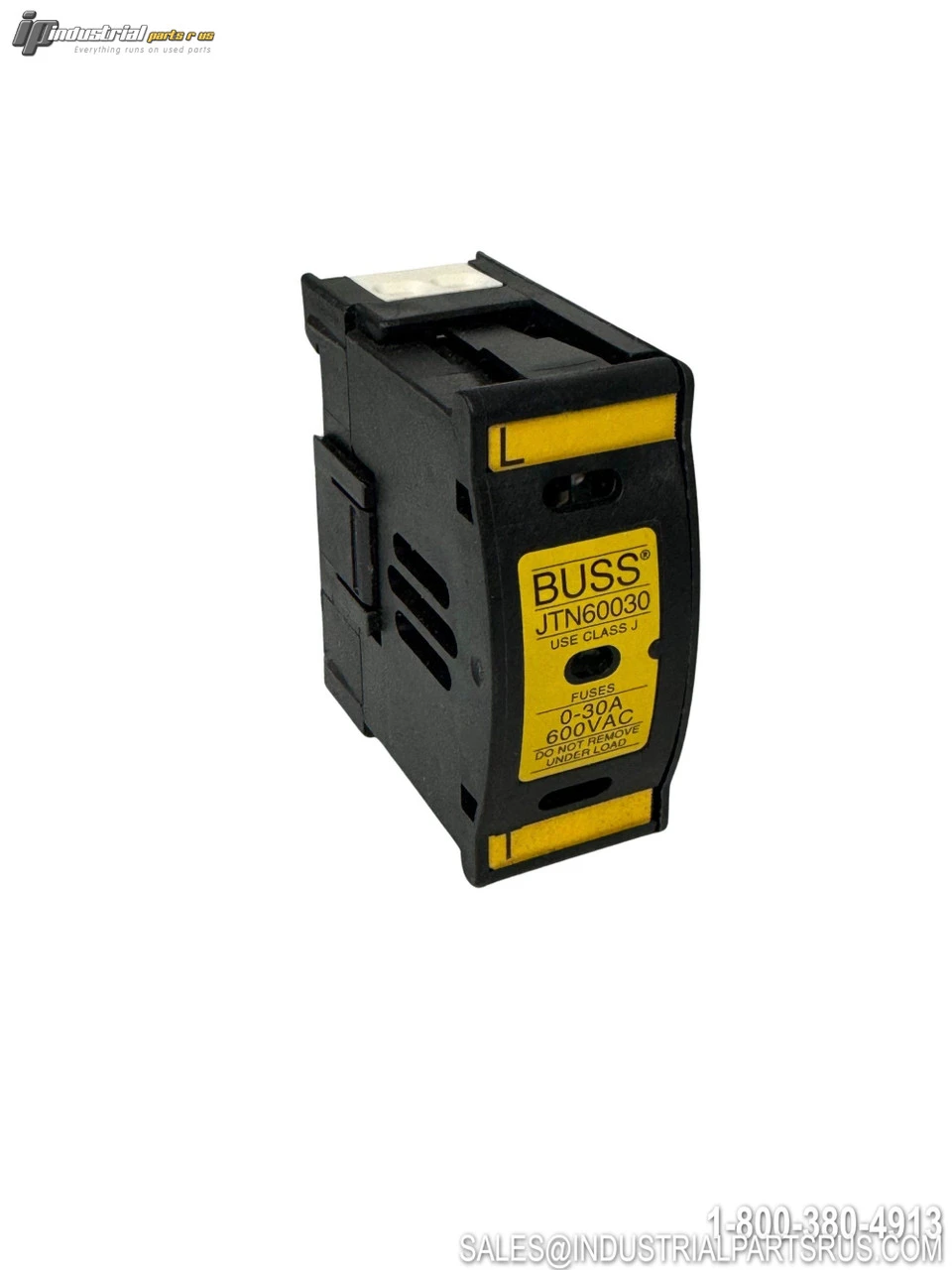

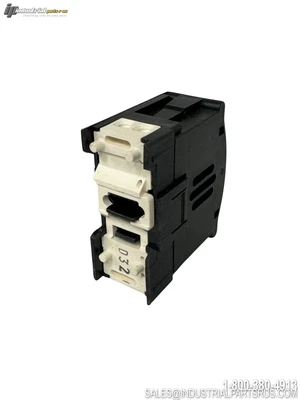

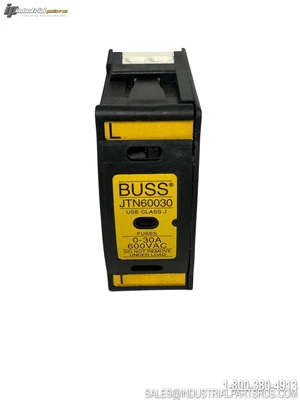

USED BUSSMAN JTN60030

The Bussman JTN60030 is a finger-safe Class J fuse holder designed for industrial control applications, process controls, and small HP VFDs. This indicating model features a neon indicator that illuminates when the fuse opens, providing visual confirmation of fuse status. The unit is constructed with thermoplastic material meeting UL 94V0 flammability rating and is rated for touch-safe protection to IP20.
Specification
Value
Brand
Bussman
Model/Part Number
JTN60030
Series
JT
Amperage Rating
30A
Voltage Rating
600VAC/600VDC
Fuse Class
Class J
Number of Poles
1
Terminal Type
Dual Port Box Lug
Wire Size
#18 to #8 AWG
Terminal Torque
20 lb-in
Mounting Type
35mm DIN Rail
Touch Safe Rating
IP20
Indicator
Yes - Neon
Indication Voltage
90VAC/115VDC minimum
Fuse Length
2.25 inches
Fuse Diameter
0.81 inches
Material
Thermoplastic UL 94V0
Terminal Material
Tin Plated Copper Alloy
Temperature Rating
75°C
Short Circuit Rating
200,000A RMS / 300,000A with LPJ_SP fuses
Dimensions (LxWxH)
2.52" x 1.23" x 2.75"
For Use With Fuses
LPJ, JKS Series Class J
UL Listed
UL 512
CSA Certified
Class 6225-01
We warranty all items for 30 days from date of purchase.

SKU: AI1571
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 30A
Manufacturer: Bussman
Part Number: JTN60030
Shelf: J-30
Model: JTN60030
MPN: JTN60030
Type: Fuse
