USED 2015 DOOSAN HC400-II

2 Pallet Changer System
1 Degree Indexing of 4th Axis Rotary Table
Coolant Through the Spindle - MP Systems Unit

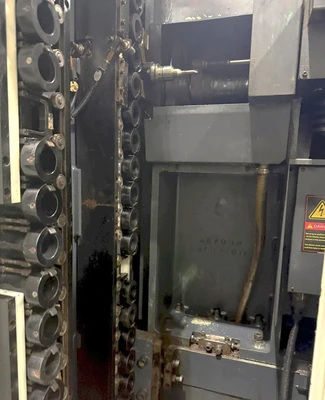

60 Station Tool Changer
EZ Guide i & Manual Guide i for Conversational Programming
Hydraulic Clamping
Chip Conveyor
400 Tool Offsets
Work Light
Coolant System with Tank and Pumps
Embedded Ethernet
Card Interface
RS232 Port Interface

**Pictures Coming Soon**

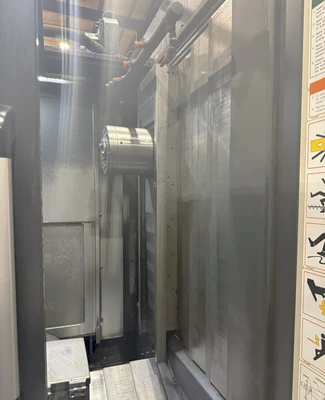

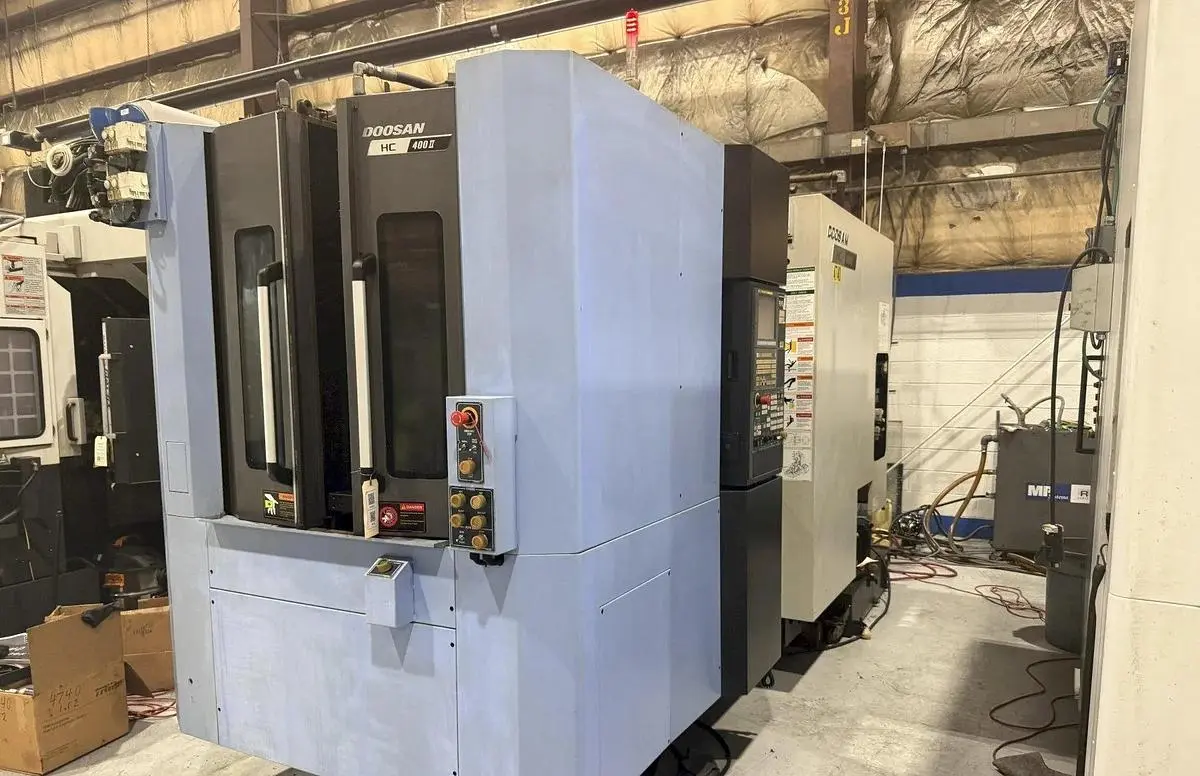

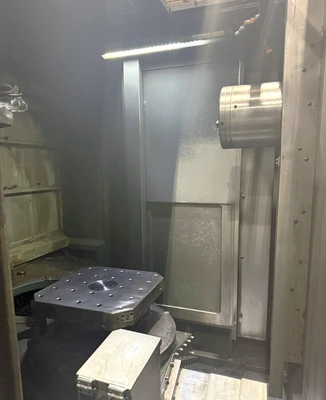

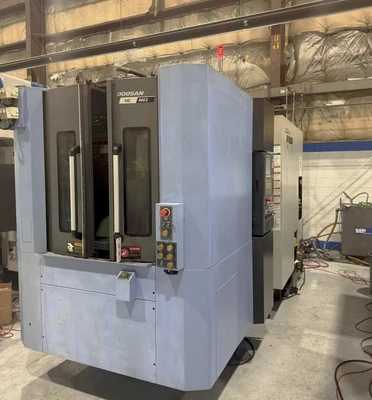

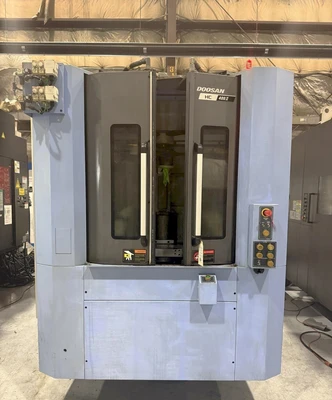

The 2015 Doosan HC400-II is a CNC Horizontal Machining Center designed to provide precision and efficiency for complex machining tasks. It features a Fanuc i Series Control with Manual Guide i Conversational capabilities, allowing for user-friendly and versatile operations. The machine includes two pallets, each measuring 15.7" x 15.7", with the capability of supporting a maximum table load of 882 lbs. The 1-degree indexing rotary table provides flexibility in handling various components.

The machine's working area offers an X-axis travel of 23.6", a Y-axis travel of 22", and a Z-axis travel of 22.2", supporting workpieces up to 23.6” in diameter and 31.5” in height. It operates with a powerful 25 HP direct drive spindle that reaches speeds of up to 12,000 RPM, with a spindle taper of CAT #40 Big Plus. Featuring a 60-station tool changer, the HC400-II ensures seamless operation transitions and improved productivity.

With rapid traverse rates and cutting feed rates of 1575 IPM, the Doosan HC400-II is designed for high-speed performance. The dimensions of the machine are 184" x 90.6" x 112", and it weighs 24,800 lbs., making it a robust choice for industrial applications. This well-maintained, used machine is suitable for businesses looking to enhance their machining capabilities efficiently.

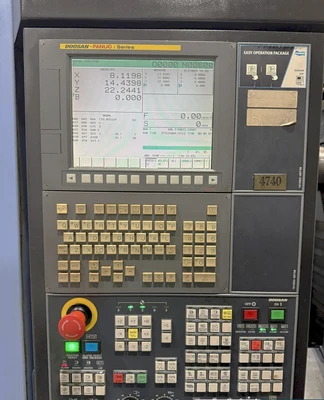

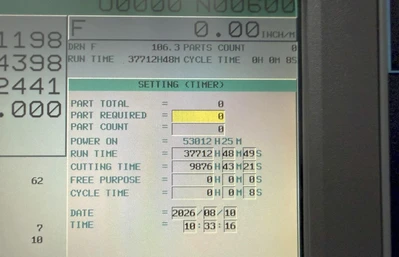

Machine Control: Fanuc i Series Control

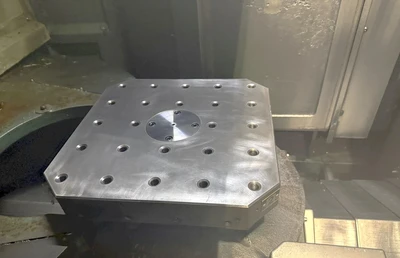

Pallet Size / Number of Pallets: 15.7" x 15.7" / 2 Pallets
Maximum Table Load: 882 lbs.

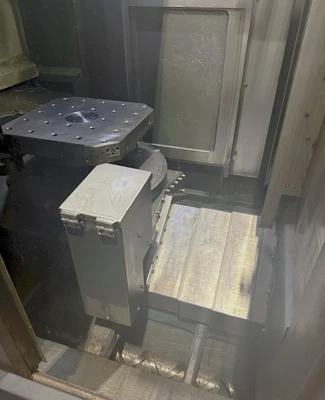

Pallet Indexing: 1 Degree Indexing Rotary Table
Maximum Workpiece Size D x H: 23.6" x 31.5"
X-Axis Travel: 23.6"
Y-Axis Travel: 22"
Z-Axis Travel: 22.2"

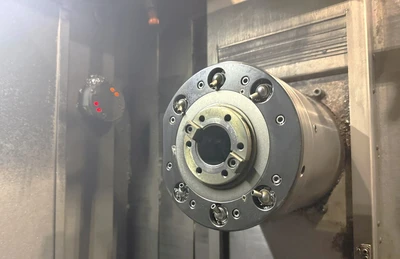

Spindle Taper: CAT #40 Big Plus
Spindle Speeds: 12,000 RPM
Spindle Motor: 25 HP - Direct Drive
Number of Tool Positions: 60 Station Tool Changer
Rapid Traverse Rates: 1575 IPM
Cutting Feedrates: 1575 IPM
Machine Dimensions: 184" x 90.6" x 112"
Machine Weight: 24,800 lbs.
