USED OMRON G3DZ-F4B
Overview
Description

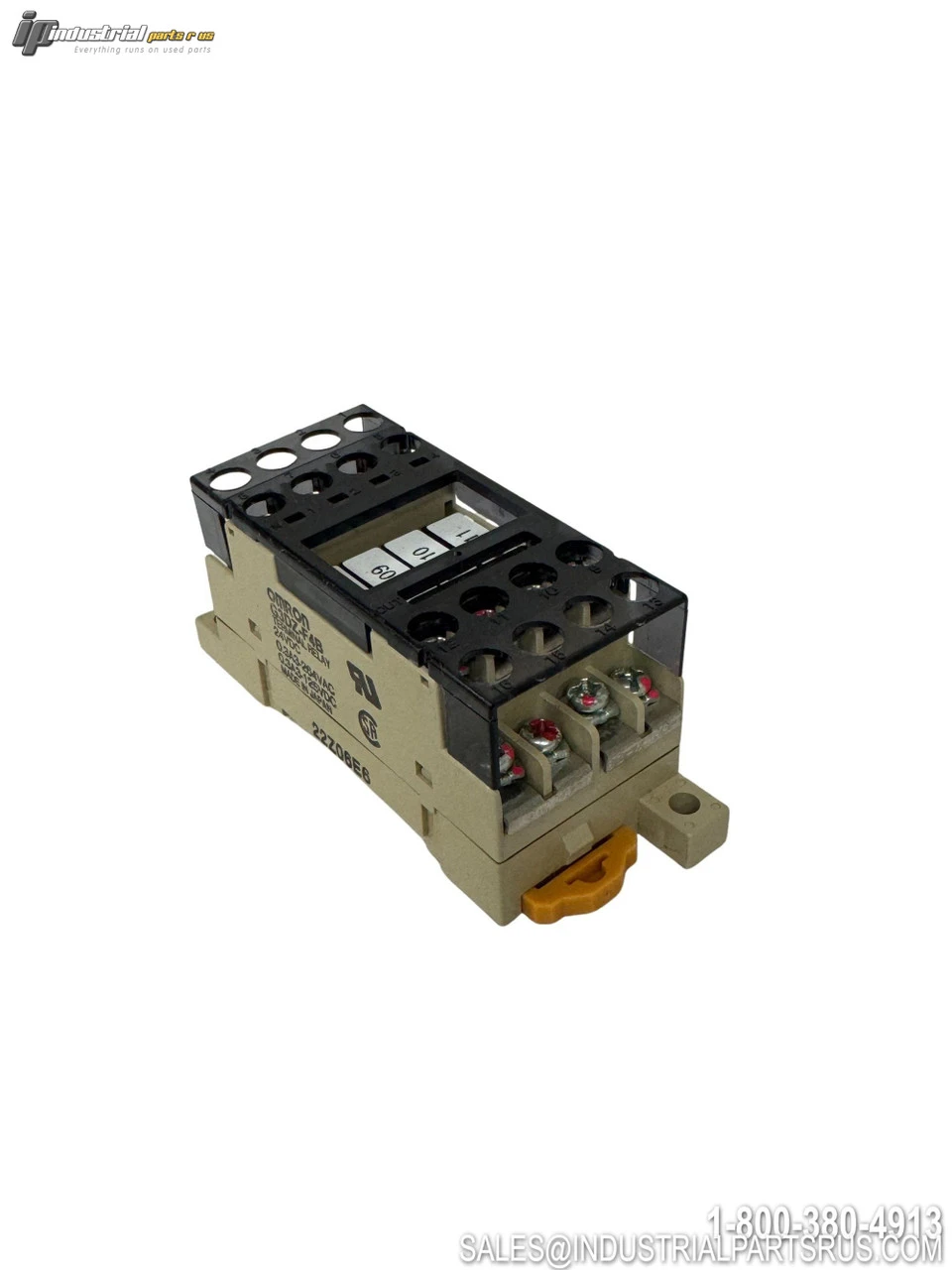

The Omron G3DZ-F4B is a slim profile terminal solid state relay designed for AC/DC load switching applications using power MOSFET technology. This 4-pole unit provides reliable switching with LED operation indicators, coil surge absorption diodes, and easy DIN rail mounting for industrial control panels.
Specification
Value
Brand
Omron
Model/Part Number
G3DZ-F4B
Product Type
Terminal Solid State Relay
Rated Current
5A
Max Switching Voltage AC
250VAC
Max Switching Voltage DC
30VDC
Max Switching Capacity AC
1250VA (resistive load)
Max Switching Capacity DC
150W (resistive load)
Number of Poles
4 (SPST-NO)
Contact Configuration
4 x 1NO (4 x SPST-NO)
Terminal Type
Screw Terminal
Mounting Type
DIN Rail
Width
31mm
Operating Temperature
-25°C to +55°C
Technology
Power MOSFET
Features
LED Indicator, Surge Absorption Diode
Electrical Life
100,000 operations min
Mechanical Life
20,000,000 operations min
Coil Voltage
Available in 12VDC or 24VDC (specify when ordering)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1572
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Japan
Manufacturer: Omron
Part Number: G3DZ-F4B
Shelf: K-69
Model: G3DZ-F4B
MPN: G3DZ-F4B
Type: Solid State Relay
