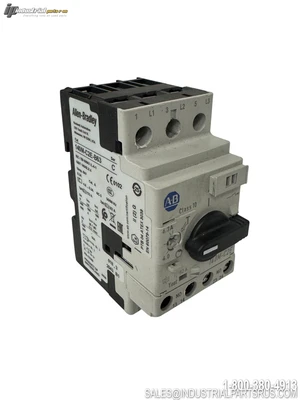

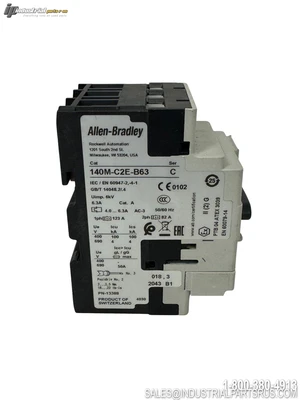

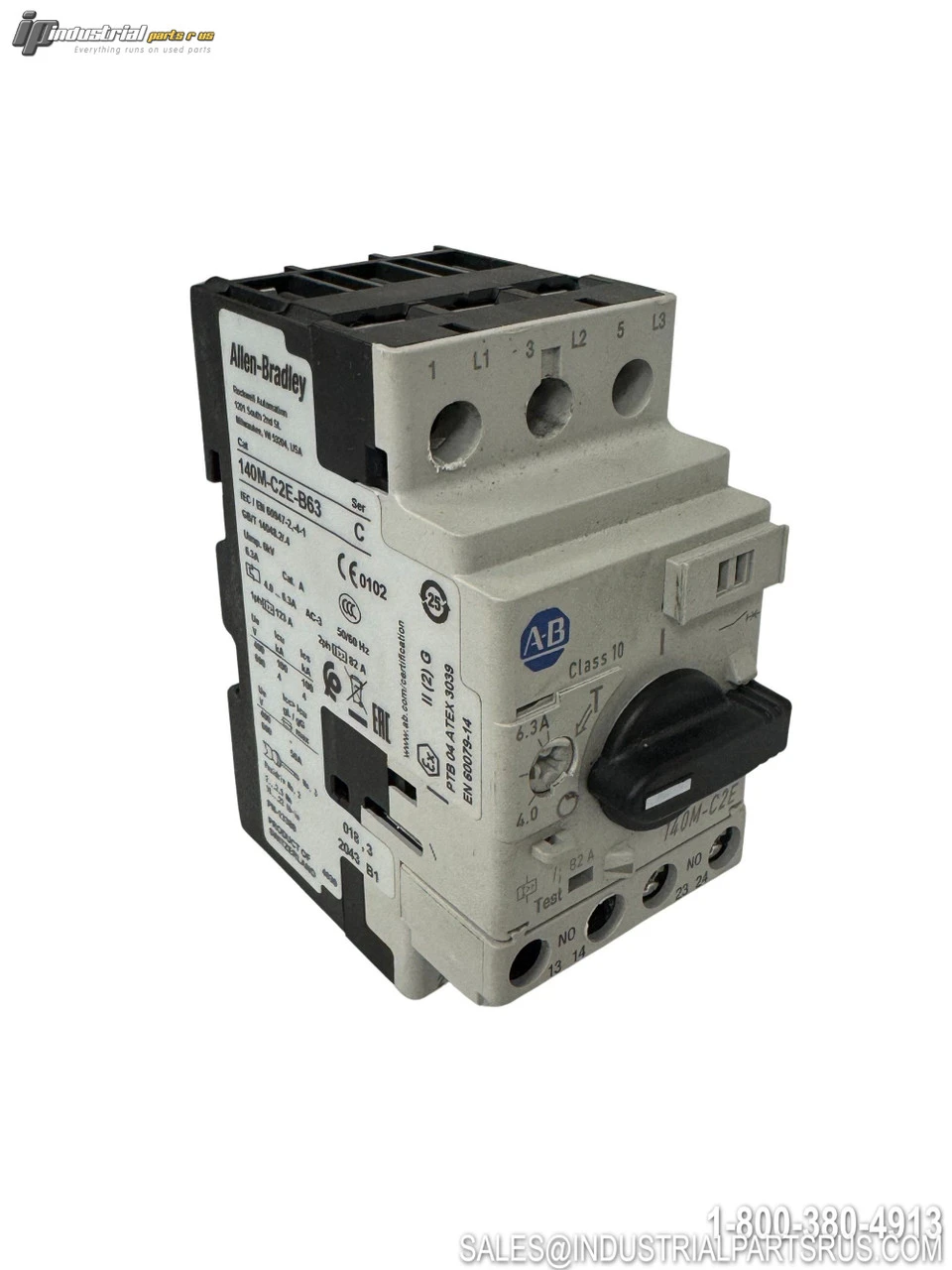

USED ALLEN-BRADLEY 140M-C2E-B63

The Allen-Bradley 140M-C2E-B63 is a motor protection circuit breaker designed for motor overload and short-circuit protection. This Frame C circuit breaker features an adjustable thermal current range from 4.0 to 6.3 amperes with Class 10 trip technology that trips in 10 seconds or less. This discontinued model provides motor branch circuit protection with screw terminals for easy installation.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
140M-C2E-B63
Product Family
140M
Frame Size
C
Current Range
4.0-6.3 Amp
Rated Current
6.3 Amp
Maximum Current
32 Amp
Rated Voltage
Up to 600V AC
Frequency
50/60 Hz
Number of Poles
3
Trip Class
Class 10
Trip Type
Adjustable Thermal/Fixed Magnetic
Break Type
Normal Break
Mounting Type
DIN Rail Mount
Terminal Style
Screw Terminals
Short Circuit Rating
65 kA at 480V AC
Magnetic Trip Current
82 Amperes
Impulse Withstand Voltage
6 kV
Degree of Protection
IP2X
Weight
0.75 lbs
UPC
662468964357
Status
Discontinued
Replacement Model
140MT-C3E-B63
We warranty all items for 30 days from date of purchase.

SKU: AI1560
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail Mount
Current Rating: 6.3 Amp
Full Load Amps: 4.0-6.3 Amp
Application: Motor Protection
Manufacturer: Allen-Bradley
Part Number: 140M-C2E-B63
Shelf: C-15
Model: 140M-C2E-B63
MPN: 140M-C2E-B63
Voltage: Up to 600V AC
Type: Circuit Breaker
