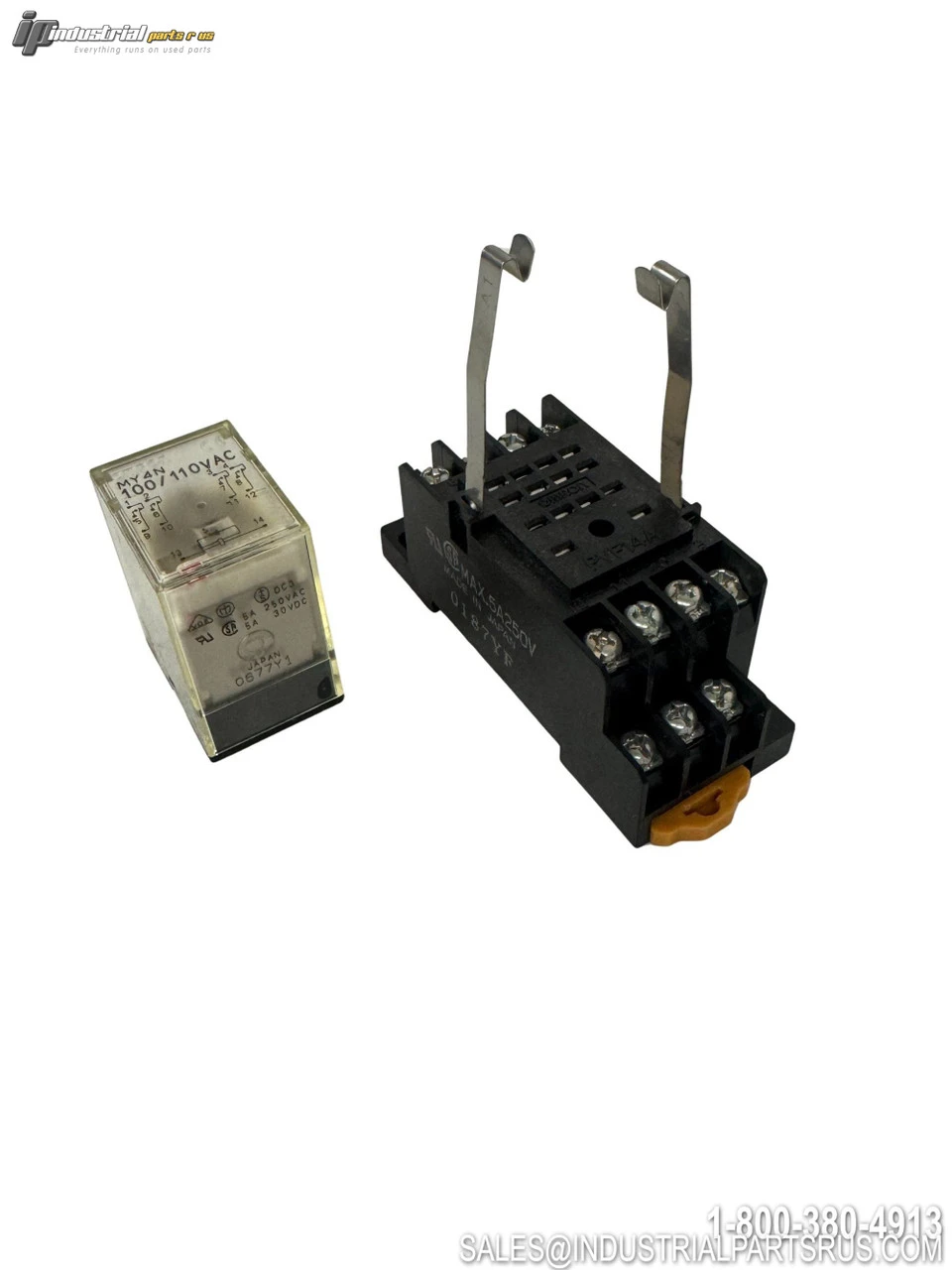

USED OMRON PYF14A

The Omron PYF14A is a professional-grade 14-pin relay socket designed for DIN rail mounting in industrial control and automation applications. This socket features screw terminal connections and is specifically engineered for compatibility with Omron MY series relays. It provides reliable electrical connections with a current rating of 3A at 250VAC, making it ideal for general-purpose relay applications in control panels.
Specification
Value
Brand
Omron
Model/Part Number
PYF14A
Type
Relay Socket
Number of Pins
14
Poles
4
Mounting Type
DIN Rail
Connection Type
Screw Terminals
Design
Front Mounting
Rated Current
3A
Voltage Rating
250VAC
Rated Insulation Voltage
2000V
Insulation Resistance
1000MΩ min (at 500VDC)
Dimensions (H x W x D)
72mm x 29.5mm x 30mm
Compatible With
MY Series Relays
Socket Configuration
Square Socket
Maximum Operating Temperature
55°C
We warranty all items for 30 days from date of purchase.

SKU: AI1573
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 3A
Application: Industrial Control
Manufacturer: Omron
Part Number: PYF14A
Shelf: K-69
Model: PYF14A
MPN: PYF14A
Type: Relay
