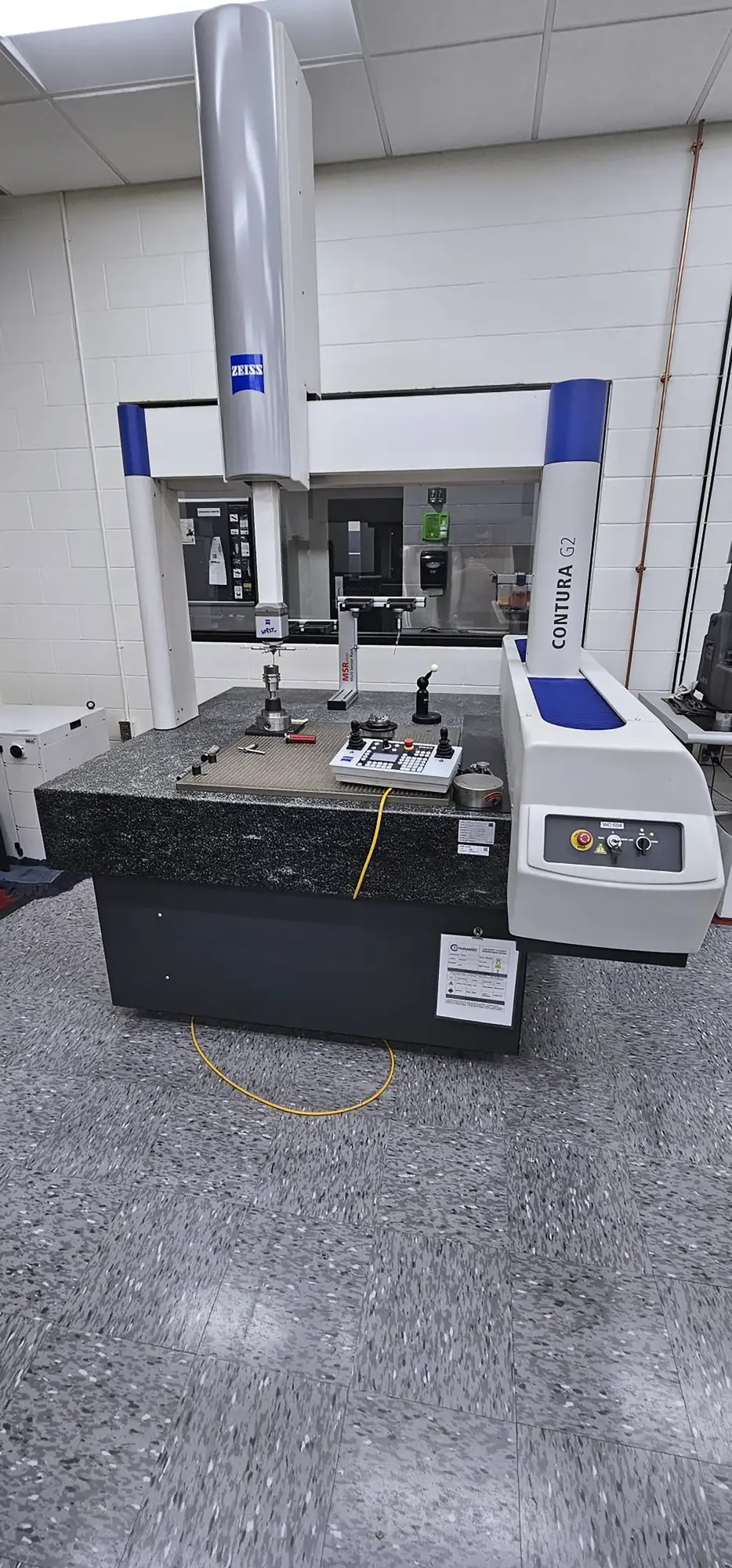

USED 2011 ZEISS CONTURA G2 10/12/6
Overview
Description
Low Hours
The Zeiss Contura G2 10/12/6 Coordinate Measuring Machine (2012) is a high-precision CMM designed for advanced dimensional inspection, quality control, and metrology applications. Ideal for automotive, aerospace, and medical manufacturing, it delivers accurate measurement of complex components, repeatable inspection results, and efficient production monitoring to reduce tool wear and improve manufacturing accuracy.
Specifications
X-axis measuring range: 39.3"
Y-axis measuring range: 47"
Z-axis measuring range: 23.6"
Max. workpiece dimensions: 60.79" X 47.83" X 28.19"
Max. Workpiece Weight: 2,530 lbs
Equipped With

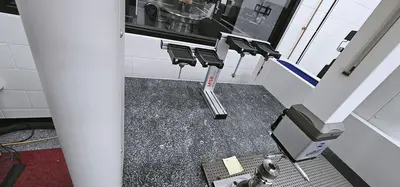

MSR Multi Sensor Position Probe Change Rack

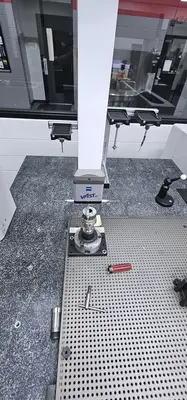

Vast XT Probe Head
Calibration Sphere
Calypso Software license Planner
Calypso Software license Option Simulation
Calypso Software license STEP
Calypso Curve for Planner
Calypso Curve SMA for Planner
Calypso Portable Security Key
Calypso Planner (SMA)
Calypso Simulation (SMA)
Calypso STEP converter(SMA)
