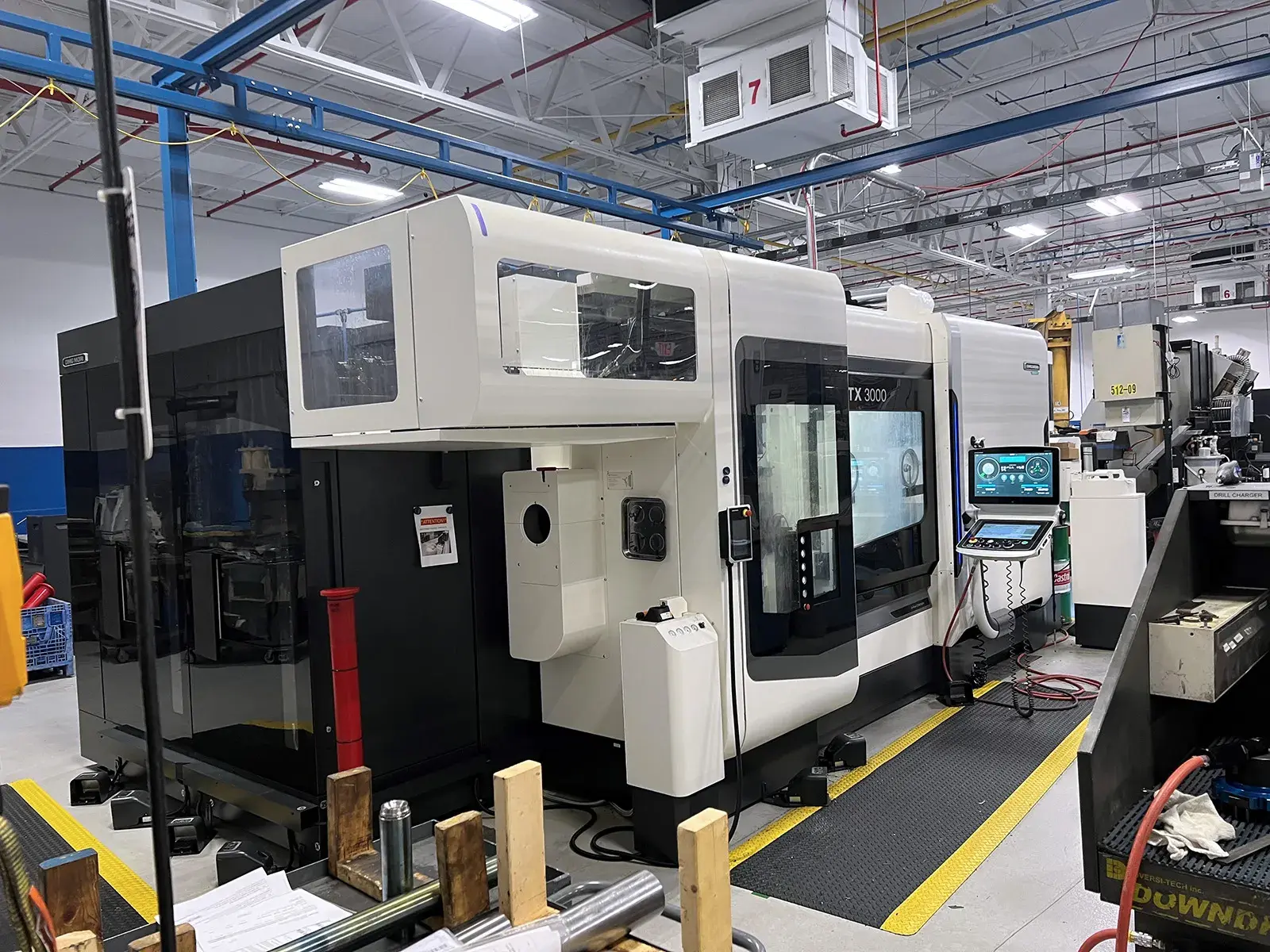

USED 2022 DMG MORI NTX 3000/1500
Overview
Description
Under 3000 cutting hours| 246 ATC Capacity| Full automation
The DMG Mori NTX 3000 B-Axis CNC Lathe (2022) with Fanuc CELOS F31iB5 Control is a premium multi-tasking turn-mill center engineered for high-precision 6-sided machining of complex and long shaft components. Designed for aerospace, medical, automotive, and industrial manufacturing, it combines turning, milling, gear hobbing, and grinding in one setup to improve accuracy, reduce setup time, and maximize production efficiency.
Specifications
Max Turning Diameter: (26.3”)
Max Turning Length: 61"
Swing over cross slide: (27.6”)
Bar Capacity Main Spindle: (4.0”)
Bar Capacity Sub Spindle: (3.1”)
X Axis: (26.5”)
Y-Axis: (± 5.9”)
Z axis: 60"
B-Axis: 240° (±120°)
Main Spindle Chuck Size : 12”
MAIN SPINDLE Max Speed: 3,000 RPM
Main Spindle Power: (48 HP)
sub spindle chuck size: 8”
Sub spindle Max Speed: 4,000 RPM
Sub Spindle Power: (35 HP)
Milling Spindle Taper: Capto C6
Milling Spindle Max speed: 12,000 RPM
Indexing accuracy: 0.0001°
Tool Changer Capacity: 246 Tools

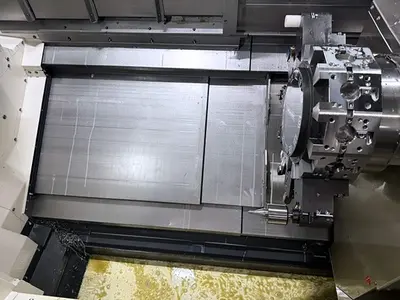

Lower Turret: Static
Lower Turret Positions: 12 positions
Equipped With
Synchronous 5-Axis Capability
High Pressure Coolant Thru Spindle
246 Tool changer Capacity
Lower Turret (Static)
Capto C6 Tool Taper
Filtration Unit
Gantry Loader/Unloader
