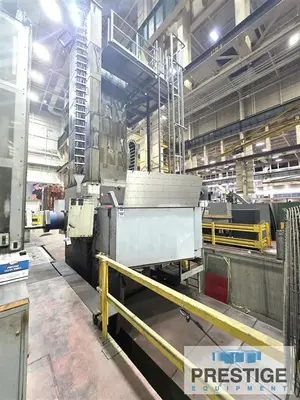

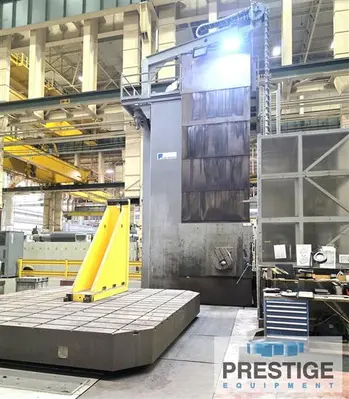

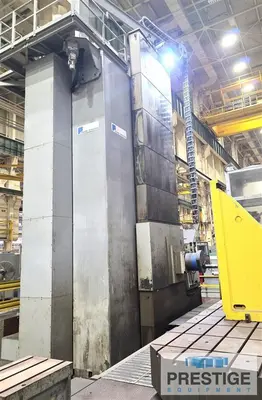

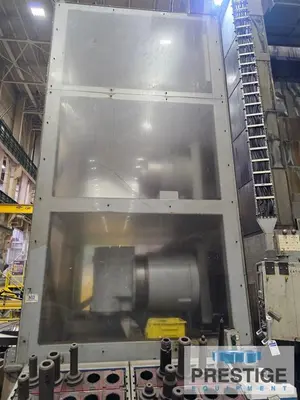

USED 1992 PEGARD 5530 PRECIRAM 7 TX

SPECIFICATION:
Spindle Diameter: 8.66"
Spindle Taper: ISO 60/50
X-Axis Column Travel: 564"
Y-Axis Vertical Head Travel: 236.22"
Z-Axis Spindle Travel: 49.21"
Z-2 Axis Ram Travel: 49.21"
Ram Cross Section: 20" x 23.5"
Maximum Torque Spindle: 13129 Nm
Spindle Speeds: 3-Ranges Inf Variable
Spindle Speeds: 0-2200 RPM
Spindle Motor: 120 HP

B-AXIS INFEEDING CNC ROTARY TABLE:

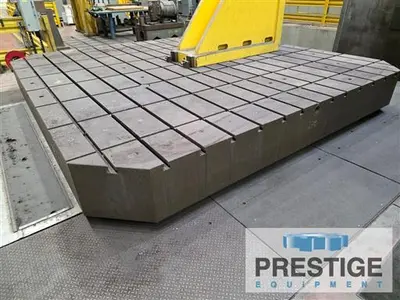

Table Size: 177" x 177"
W-Axis Table Infeed: 132"
Table Weight Capacity: 100 Ton

Equipped With:

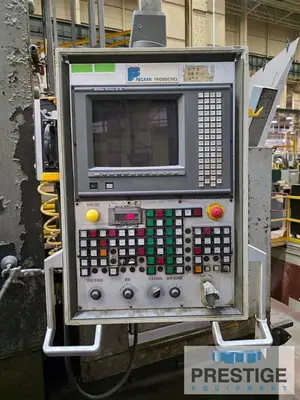

GE Fanuc 15-M CNC Control
6-Station Head Changer
177" x 177" Infeeding Rotary Table

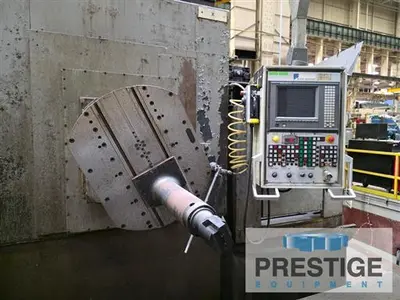

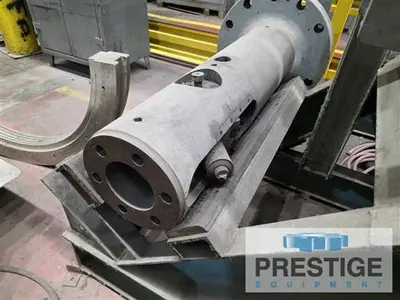

24" Diameter Facing Head Attachment

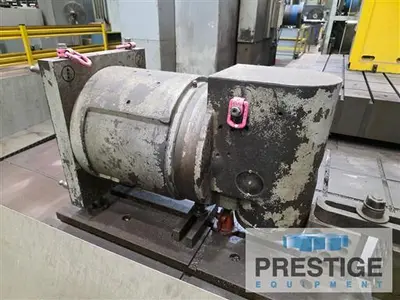

2-Right Angle Head Attachments
Geared Spindle Head Attachment

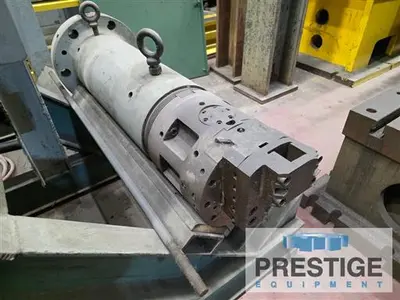

12" x 48" Boring Bar Attachment
12" x 52" Boring Bar Attachment
Telescoping Steel Way Covers
Hansen 15SDTOP1CX Hydraulic Chiller
Schimpke Hydraulic Chiller
Chip Conveyor

Features:
GE Fanuc 15-M CNC Control
6-Station Head Changer
177" x 177" Infeeding Rotary Table
24" Diameter Facing Head Attachment
2-Right Angle Head Attachments
Geared Spindle Head Attachment
