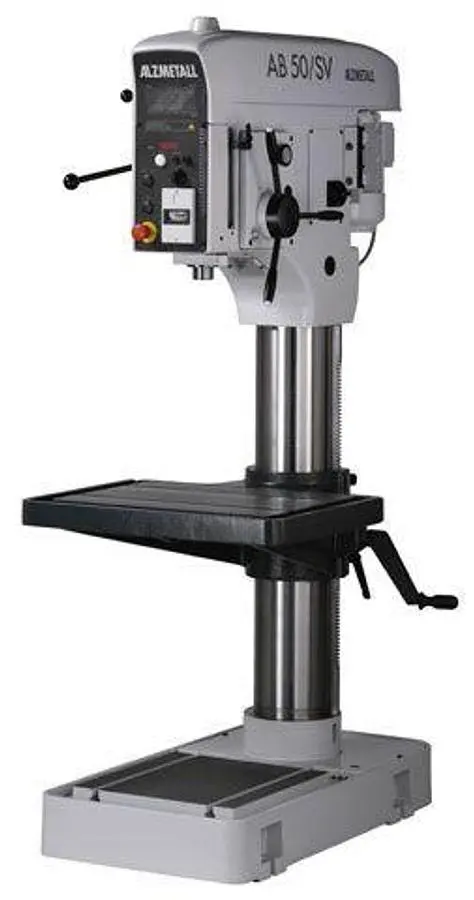

NEW ALZMETALL AB 50/SV
Description
Standard Equipment:
Electro-magnetic Feed Clutch with Electrical Cross Handle Switches
Main Switch (lockable) with Overload Circuit Breaker
Overload Feed Clutch
Self-Locking Mushroom Button for EMERGENCY OFF switch
Infinitely variable speed drive
Digital RPM Read-out
Protection Class IP 54
Spindle Protection, with electric security
Machined Base Plate with T-Slots (AB 50/SV)
Lacquer: DD-structured White RAL 9003, Pantone 7545c, black
Specifications
Drilling Performance in Steel E 335 St 60: 50 mm
Drilling Performance in Cast-iron EN-GJL-200: 60 mm
Drilling Capacity in Steel E 335 St 60: 60 mm
Tapping Performance in Steel E 335 St 60 (option 20.0 or 20.1 required): M 42
Tapping Performance in Cast-iron EN-GJL-200 (option 20.0 or 20.1 required): M 60
Tool Taper (short spindle): MT 4
Distance Spindle to Column: 350 mm
Table Clamping Area: 720 x 510 mm
T-Slots, number x width x distance: 2 x 14 x 224 mm
Z-Travel of Spindle: 200 mm
Feeds: 0,15-0,2-0,3-0,36 mm/Rev
Net weight approx.: 605 kg
Drive system: Gear Box
Motor: 1500 RPM
Performance: 3.6 / 4.3
Spindle Rpm: 60-1530
Options: 10. Spindle Reverse for Anti-clockwise rotation with 0-position: 70
Options: 12. Haloflex Machine Light, adjustable (Halogen 12 V/IP 64): 750
Options: 20.0 Tapping Attachment, (automatic reverse) w/o foot switch, max. 6 tapped holes per minute (tapping capacity depending on Rpm speed) (If Motor 1500/3000 is chosen, the 1st gear should be used for tapping): 2000
Options:20.1 Tapping Attachment, (automatic reverse) with additional foot switch, max. 6 tapped holes per minute (tapping capacity depending on Rpm speed) (If Motor 1500/3000 is chosen, the 1st gear should be used for tapping): 2350
Options:24. Coolant Attachment A*, integrated in Coolant Base plate with grinded surface 450 x 460 mm and 2 slots, overload-protected pump and accessories for AB 50/SV only: 1810
Options: 25. Coolant Attachment B separate container (33 l), with overload-protected pump and accessories: 970
Options:42. Column extension + 200mm (for AB50/SV only): 1410
Options:50.6 Precision Depth Adjuster and fiex stop with precision adjustment to 0.1mm: 610
