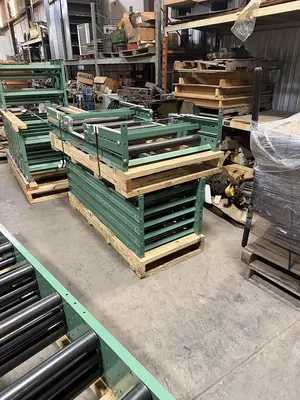

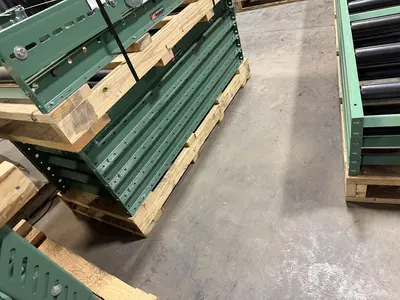

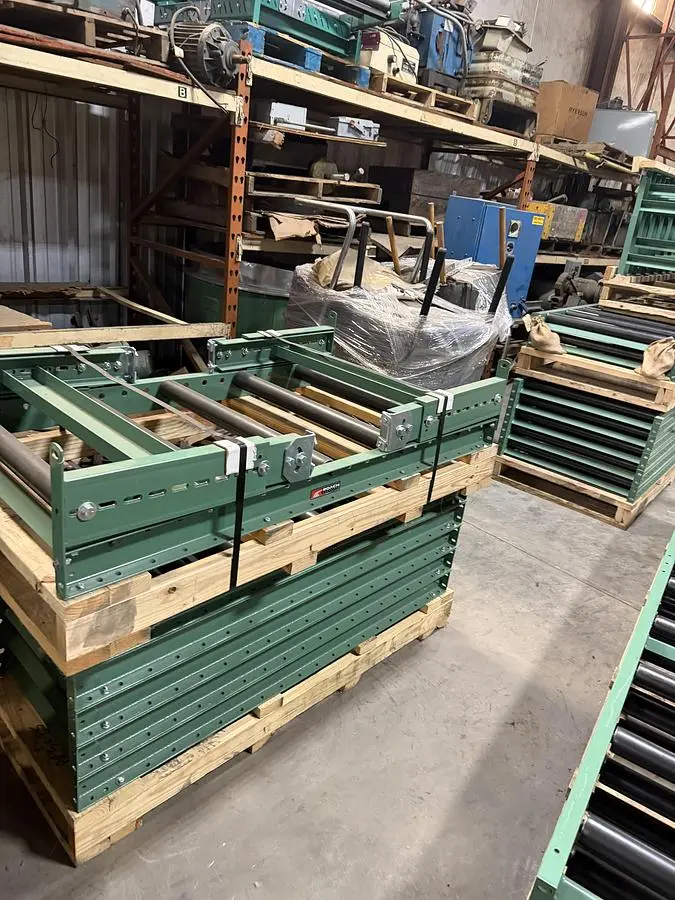

Roach Conveyors 21" x 5' with supports, rollers on 12" centers
Overview
21" x 5' Roller Conveyor with Supports, rollers on 12" centers
ROLLERS: 2-9/16″ x 7 ga. steel tubing, model 297S, with straight ends, reamed to provide smooth bearing seats.
FRAMES: 4″ at 5.4 lbs. structural steel painted channel.
ROLLER CAPACITY: 540 lbs. per roller.
AXLES: 11/16″ hex shaft, spring loaded.
BEARINGS: Removable type, heavy duty ball bearings, zinc plated, grease packed.
COUPLINGS: Butt type.
FRAME CAPACITY: 3750 lbs. maximum distributed live load per 10′ section with supports at 10′ centers ; 5400 lbs. at 5′ centers
Includes 3 Support per 10' conveyor 28.5" Tall adjustable to 40.4" Tall
SPECIFCATION:
ROLLERS: 2-9/16″ x 7 ga. steel tubing, model 297S, with straight ends, reamed to provide smooth bearing seats.
FRAMES: 4″ at 5.4 lbs. structural steel painted channel.
ROLLER CAPACITY: 540 lbs. per roller.
AXLES: 11/16″ hex shaft, spring loaded.
BEARINGS: Removable type, heavy duty ball bearings, zinc plated, grease packed.
COUPLINGS: Butt type.
FRAME CAPACITY: 3750 lbs. maximum distributed live load per 10′ section with supports at 10′ centers ; 5400 lbs. at 5′ centers
