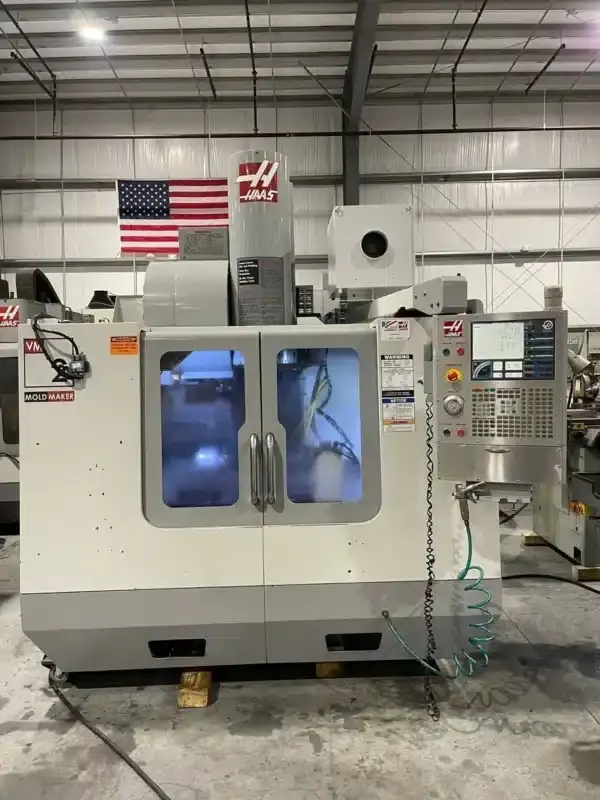

2006 HAAS VM2 with Rotary Table
CNC Mill
X AXIS 30″
Y AXIS 20″
Z AXIS 20″
POWER 30 hp
RPM 12,000 RPM
# ATC 24
TAPER 40
TABLE-W 18″
TABLE-L 36″
# AXIS 3
DIMENSIONS 111’’ L x 91’’ W x 91’’ H
WEIGHT 8000 Lbs.
Table size- 18” x 36”
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Travels-
X axis- 30”
Y axis- 20”
Z axis- 20”
Maximum distance from spindle nose to table- 24”
Minimum distance from spindle nose to table- 4”
Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Max cutting rate- 500 I.P.M.
X,Y,Z Rapids- 710 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3”
Max tool length- 11”
Max tool weight – 12 Lbs.
Machine hours-Servo time 23,166, Motion time 11,782, Spindle time- 12,166
HAAS CNC Control
Haas HRT-210 rotary table with pneumatic closer
Programmable coolant nozzle
MPG Manual Pulse Generator
Prewired for 4th Axis
Side mount tool changer 24 tool station
Telescopic way covers
Air gun
(4) Leveling pads
Chip Auger
BIJUR automatic lubrication system
External coolant tank & Less pump
Control options- Programmable coolant, Rigid tapping, DNC, Rotation & Scaling, Quick code, Macros, M19 spindle orient, Quick code, Pre-Orient Tap, Advanced Tool Management, High Speed Machining, Prewired 4th axis
