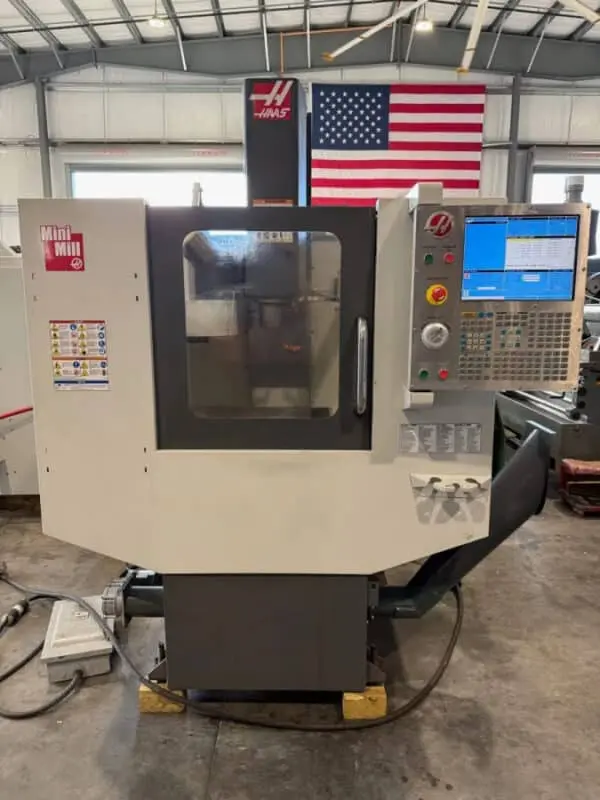

2015 HAAS MINI MILL
Year of manufacture- 1/2015’
Table size- 36” x 12”
Number of T slots- (3)
Maximum table weight- 500 Lbs.
Maximum spindle speed- 6,000 R.P.M.
Spindle taper- CAT-40
X axis travel- 16”
Y axis travel- 14”
Z axis travel- 15”
Minimum / Maximum spindle nose to table- 4” / 19”
X,Y,Z Rapids- 800 I.P.M.
Tool changer capacity- 10
HAAS CNC Control , USB Port
Machine hours- Power on hours- 59,843, Cycle hours- 3,023, Cutting hours- 2,280
Control options- DNC enabled, M19 Spindle orient, Macro’s, Quick code, Pre-Orient Tap, HSM High Speed Machining, Advanced tool management, Intuitive programming system
Programable coolant nozzle
Machine manual
Air blow off gun
Coolant tank & pump
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 4200 Lbs.
Machine dimensions- 90” x 64” x 100” H
