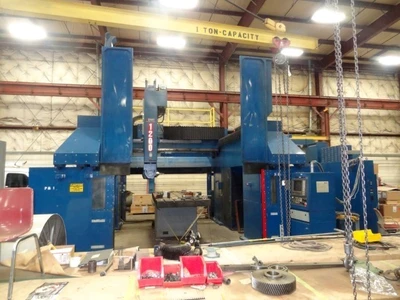

USED DMT 1200

SPECIFICATIONS:

DMT 1200 5-Axis CNC Gantry Mill

X Axis.........................152"

Y Axis.........................102"

Z Axis.........................40"

C Axis......................... + or - 190 Deg

A Axis.........................+ or - 102 Deg

Feed and Rapid Speeds:

X,Y,Z Axes.....................800 IPM
A Axis.........................3600 DPM
C Axis.........................3600 DPM

RPM............................20,000 (Option for a 12,000 RPM
Spindle)

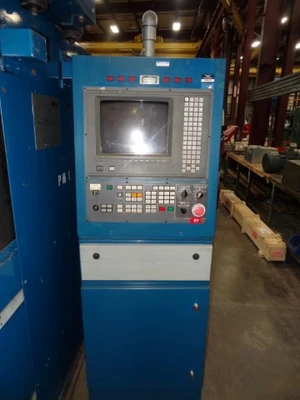

Control........................GE Fanuc-150m

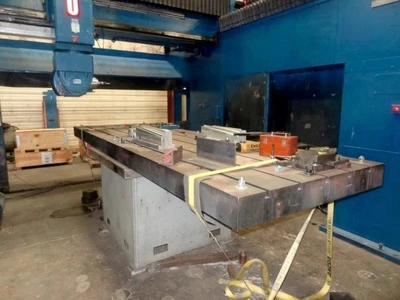

Floor Plate....................14' x 5' T Slotted

Thickness......................6"

Under Power
Approx. 3 - 4 truck loads.
