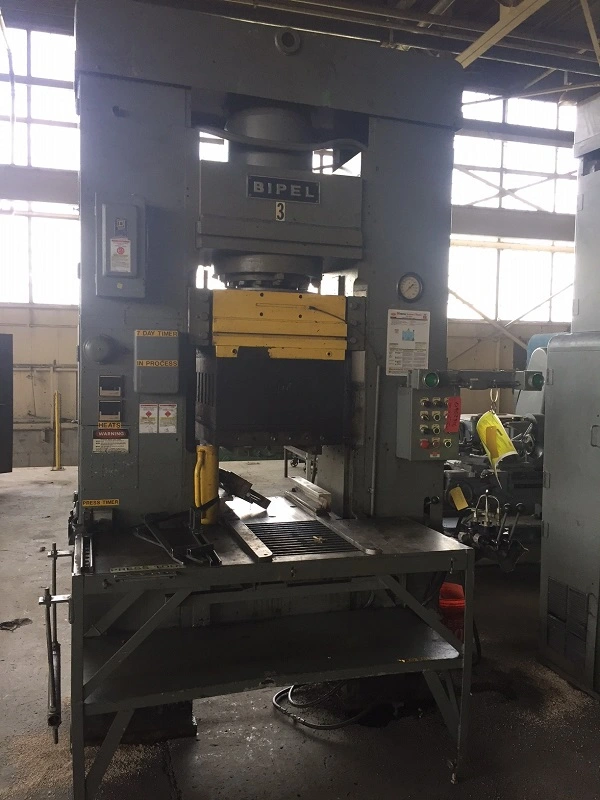

150 TON BIPEL SINGLE POST HYDRAULIC PRESS. STOCK # 0902416

SPECIFICATIONS:

150-Ton BIPEL Press
Capacity 150-Ton

Max. Table Size Left to Right btwn Stop Plates: 28"
Max. Table Size front to back: 23-1/4"
Std. Heated platen size: 20" x 20"
Daylight between tables: 38-7/16"
Daylight btw. heated platents: 23.4"
Main Ram Stroke: 18"
Hyd. Circuit pressure: 1000 psi
Main Ram Pull back force - 150 Tons
Main Ram Pull back force at circuit pressure: 4.8 tons
Transfer Stroke: 6"
Max. Pummel Diameter: 2.25"
Approximate Weight of Max. Shot: 10 Ounces
Ejection Force (Top & Bottom) 3.5 Tons
Ejection Return Force 2 Tons
Ejector Stroke Top: 4"
Ejector Stoke Bottom: 8"
Total kVa self contained press: 39"

*24" Platens can be fitted to suitable modifications to heat control
circuits & ejectors

(2) Identical Bipel Presses available and (1) 200 Ton Bipel

Overall Dimensions: 11'-2" H x Deep 42" x Width 72"

Stock #: 0902216
