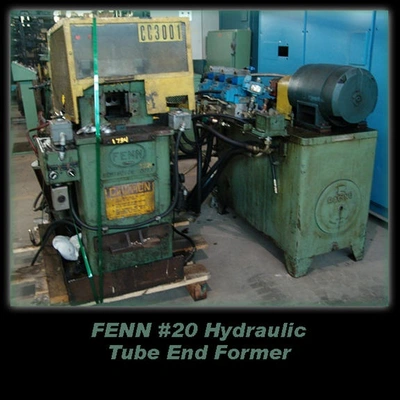

USED FENN #20

MACHINE SPECIFICATIONS:Aluminum Low Carbon Steel Stainless SteelBeading:     2" x .095" (50.8 mm x 2.41 mm)     1-3/8" x .072" (34.9 mm x 1.82 mm)     1" x .065" (25.4 mm x 1.65 mm)Reducing:     2-1/2" x .109" (63.5 mm x 2.76 mm)     1-7/8" x .072" (47.6 mm x 1.82 mm)     1-3/8" x .065" (34.9 mm x 1.65 mm)Expanding:     2-1/2" x .109" (63.5 mm x 2.76 mm)     2-1/2" x .083" (63.5 mm x 2.10 mm)     1-3/8" x .065" (34.9 mm x 1.65 mm)Flare:     2-1/2" x .120" (63.5 mm x 3.04 mm)     2" x .072" (50.8 mm x 1.82 mm)     1-1/2" x .065" (38.1 mm x 1.65 mm)Maximum O.D. (Single): 2-1/2" (63.5 mm)Maximum O.D. (Double): 1-1/4" (31.7 mm)Maximum O.D. (Triple): 5/8" (15.8 mm)Clamp Pressure: 35,000 Lbs.Thrust: 20,000 Lbs.Idle Pressure: 200 PSIWorking Pressure: 1,500 PSIWork Stroke: 0" – 4"Hydraulics: 20 HP – 230/460/3 Phase – 1800 RPM20 GPM Hydraulic Pump60 Gallon Tank, Control Valves & Gauges
EQUIPPED WITH:Automatic Water-Cooled Oil CoolerFiltration: 74 Micron Suction Filter, 10 Micron Return Line FilterFoot Operated PedalDimensions: Frame Unit: 42" x 22", 1800 Lbs.Hydraulic Unit: 50" x 40", 1200 Lbs.
