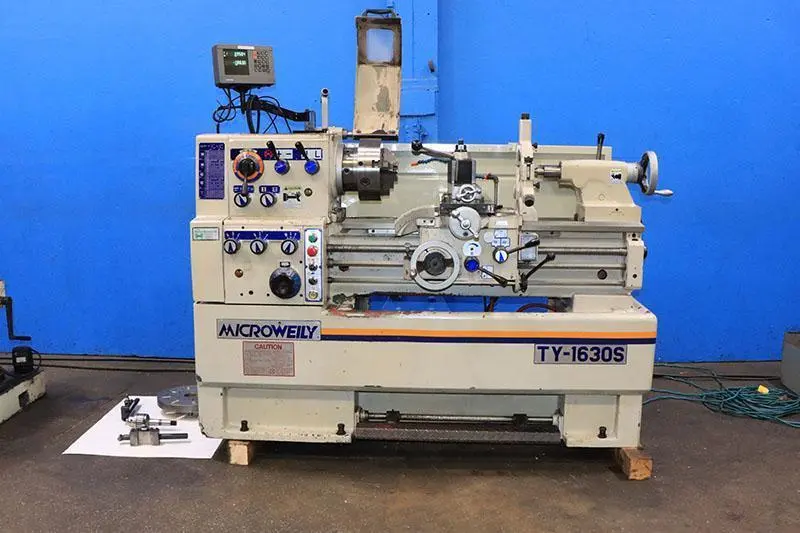

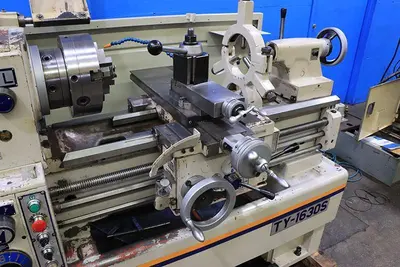

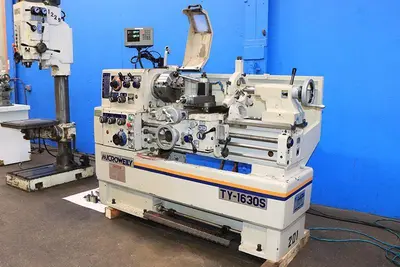

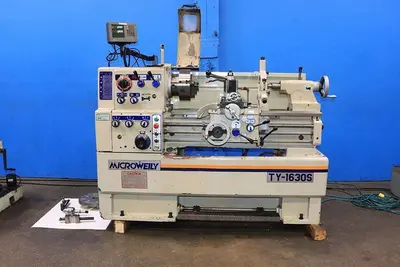

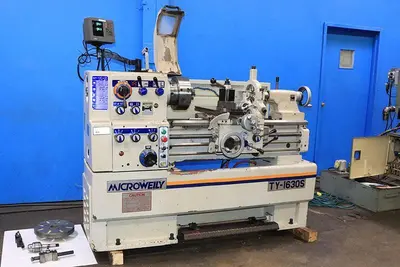

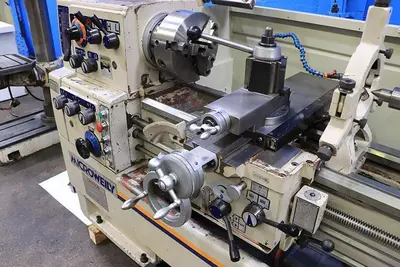

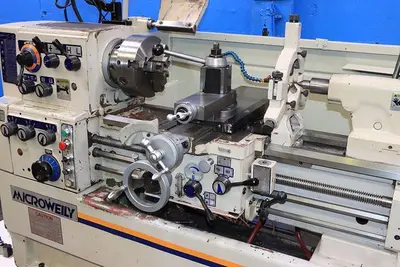

16"/23" X 30" MICROWEILY ENGINE LATHE, MODEL TY-1630S

16"/23" X 30" MICROWEILY ENGINE LATHE
MODEL: TY-1630S
NEW: 2004
SPECIFICATIONS:
SWING OVER BED......................... 16.14"
SWING OVER CROSS SLIDE................. 9.4"
SWING IN GAP........................... 23.42"
LENGTH OF GAP IN FRONT OF FACE PLATE... 6.1"
DISTANCE BETWEEN CENTERS............... 30"
WIDTH OF BED .......................... 11.81"

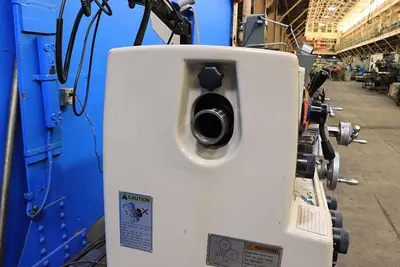

SPINDLE BORE........................... 2.04"
SPINDLE NOSE........................... D1-6
SPINDLE SPEEDS (12 SPEEDS) ..............30 TO 2,000 RPM

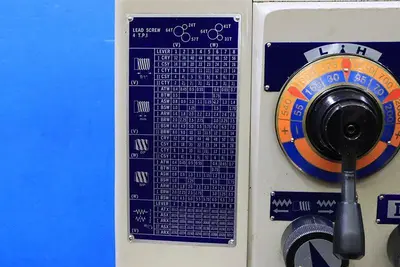

INCH THREADING RANGE .................. 2 - 56 TPI
METRIC THREADING RANGE ................ .4 - 7 mm
CROSS FEED RANGE (40) ................. .0006 - .0126 IPR
LONGITUDINAL FEED RANGE (40) .......... .0012 - .0252 IPR

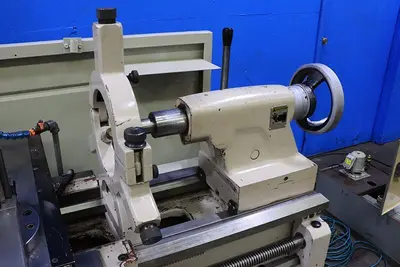

TAILSTOCK QUILL DIAMETER............... 2.12"
TAILSTOCK QUILL TRAVEL................. 5.11"
TAILSTOCK TAPER........................ 4 MT



INCH & METRIC THREADING CAPABILITY
HEIDENHAIN 2-AXIS NEWALL DIGITAL READOUTS

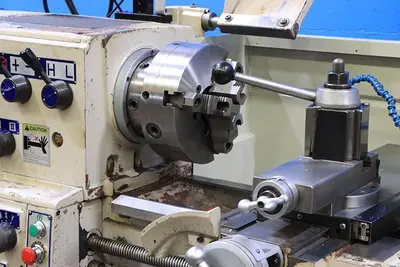

3-JAW CHUCK
FACEPLATE
STEADY REST
ALORIS MODEL: CA QUICK CHANGE TOOL POST
DEAD CENTER FOR TAILSTOCK
JACOBS DRILL CHUCK FOR TAILSTOCK
THREAD DIAL INDICATOR
FOOT BRAKE
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
5 HORSEPOWER MAIN MOTOR

FOB: ORIGIN
