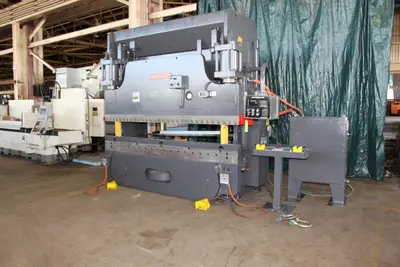

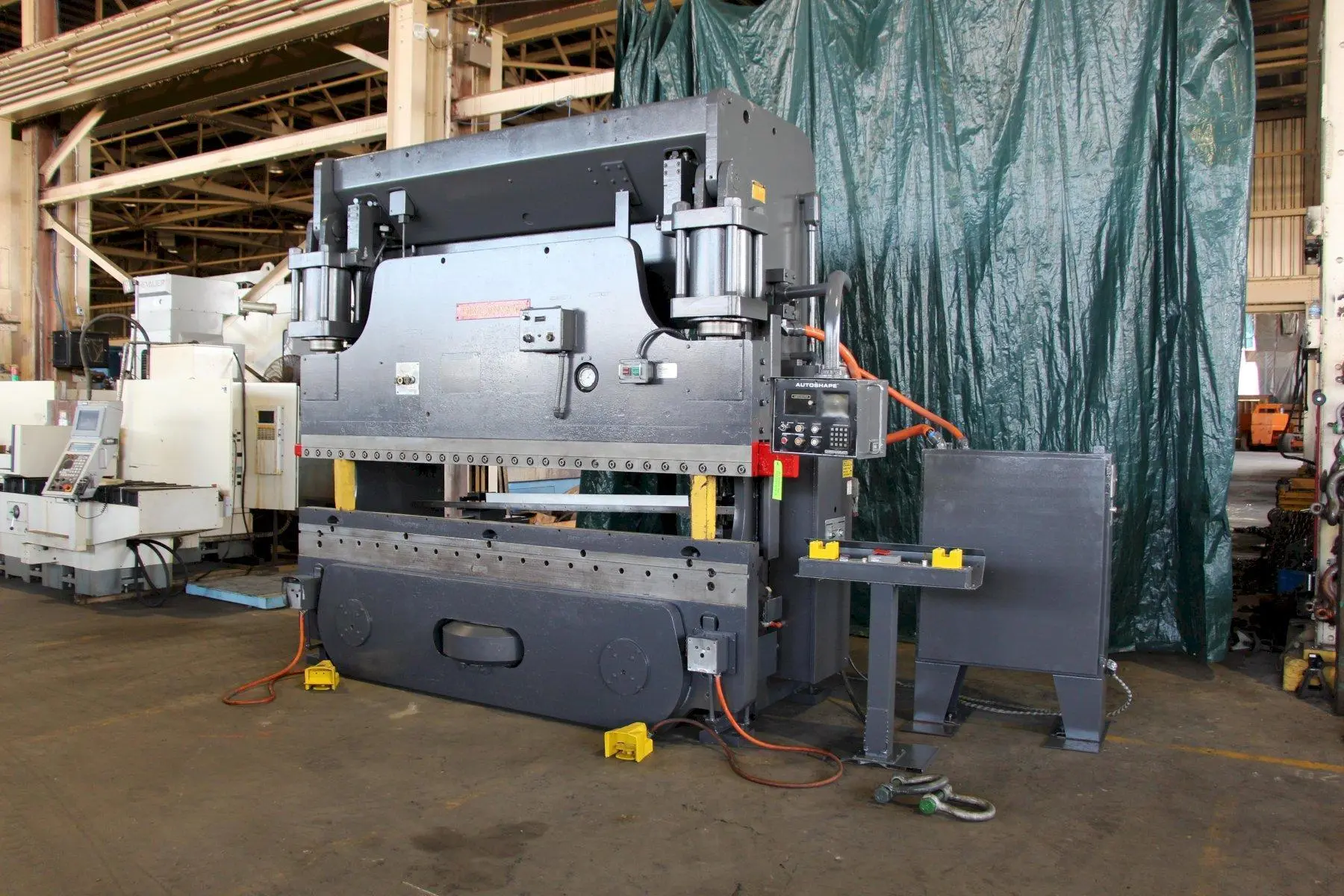

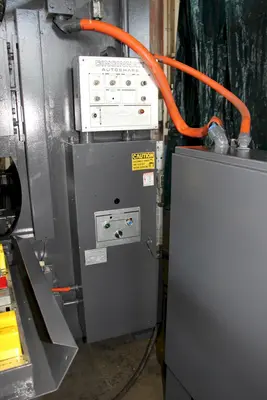

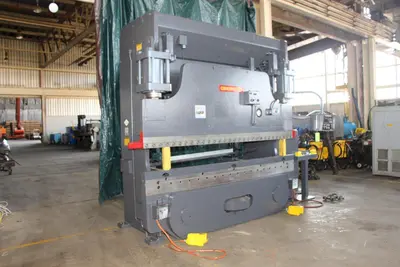

USED 1986 CINCINNATI INC AS175-8

Machine Specifications

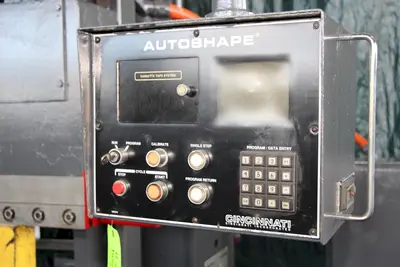

Serial ............................. Number 44188Model .............................. 175 AS AutoshapeNew ................................ 1986Capacity ........................... 175 TONSOverall Length of Bed & Ram ........ 10’Distance Between Housings .......... 8’6 3/4”Stroke ............................. 10”Open Height ........................ 17”Closed Height ...................... 7”Throat Clearance ................... 8”Speeds:Approach ........................... 235 INCH PER MINUTEForm ............................... 60  & 20 INCH PER MINUTEReturn ............................. 79 & 248  INCH PER MINUTEBack Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTEMain Motor Horsepower .............. 35 Autoshape CNC Control24” CNC Programmable Back gage  (X) With Manual R AxisOff Load Center CompensationVariable TonnageElectric Foot SwitchPedestal Palm Button StationAuto Crowning Top Die Hydraulic Clamping
