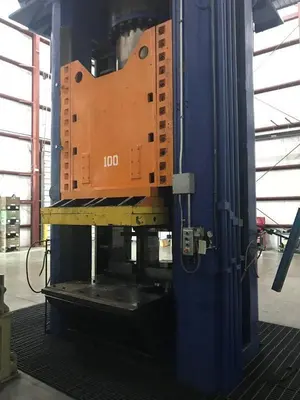

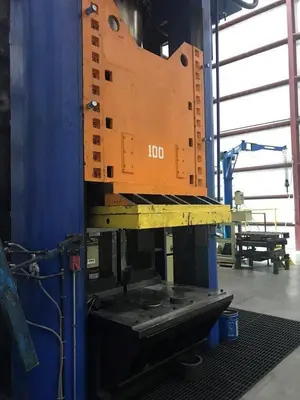

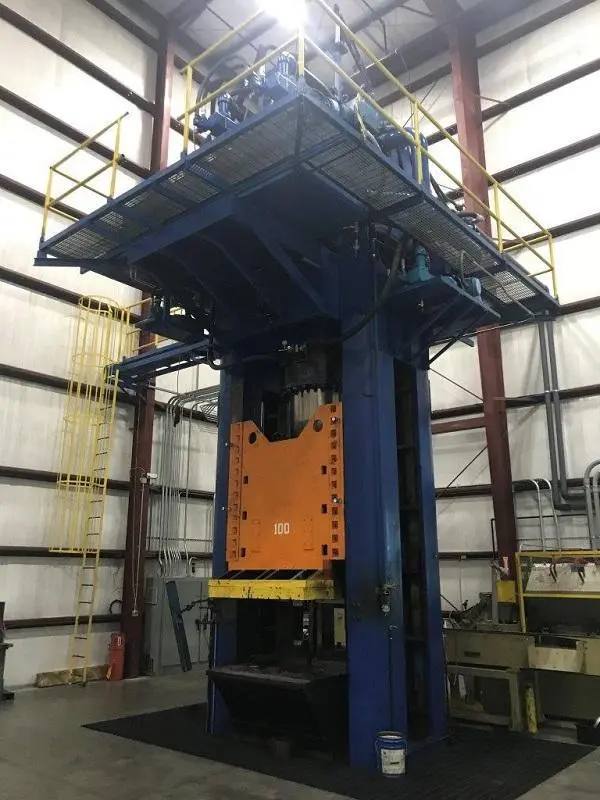

USED 1956 HPM CU-2D

1200 Ton HPM Hydraulic Press      Serial................................ 5694Model................................. CU-2DCapacity.............................. 1200 TonStroke................................ 48"Daylight.............................. 96"Bed Size.............................. 84" x 60"
- (2) 75-Ton Parker Ejection Cylinders with 48" Stroke- 8 Point Gib Guided- Complete Rebuild In 2015
Operating Speeds:
Closing.............................. 780Pressing............................. 160" IPMReturn...............................780 w/o Ejector ActingEjector & Main Slide.................275Return Main Slide & Ejector..........660 w/ Ejector- New Electrical

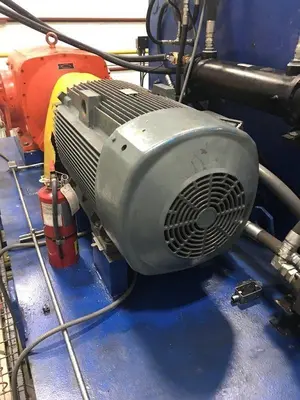

Motor Specs: Horsepower............................ 125RPM................................... 885Volts................................. 460AMP................................... 1501200-Ton HPM Hydraulic Fastraverse Press, Vertical, Downward Acting Housing Type with Gib Guides Slide. Gib Guides surfaced with HPM friction reducing laminated phenolic liners. Uprights (Housings). Crown & Bed locked together as one rigid frame by pre-stressed shrunk strain rods and circular ring keys.  Deep Hollow Type Bed, Slide Fitted with an HPM Hydraulic Ejector. Slide and Bed Surfaced with a removable steel bolster plate.  Automatic Slide Lubrication for lubricating the gib guide ways. Minimum Gib Length 72".  Press Designed for full lad concentration on an area 13" in diameter without undue deflection.
