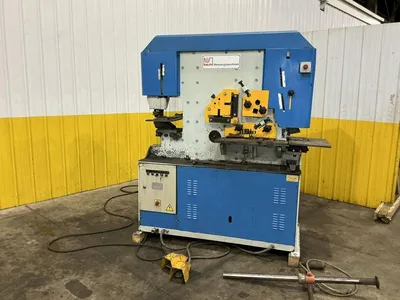

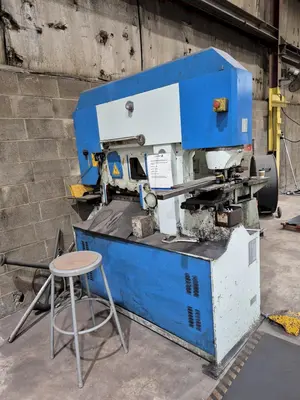

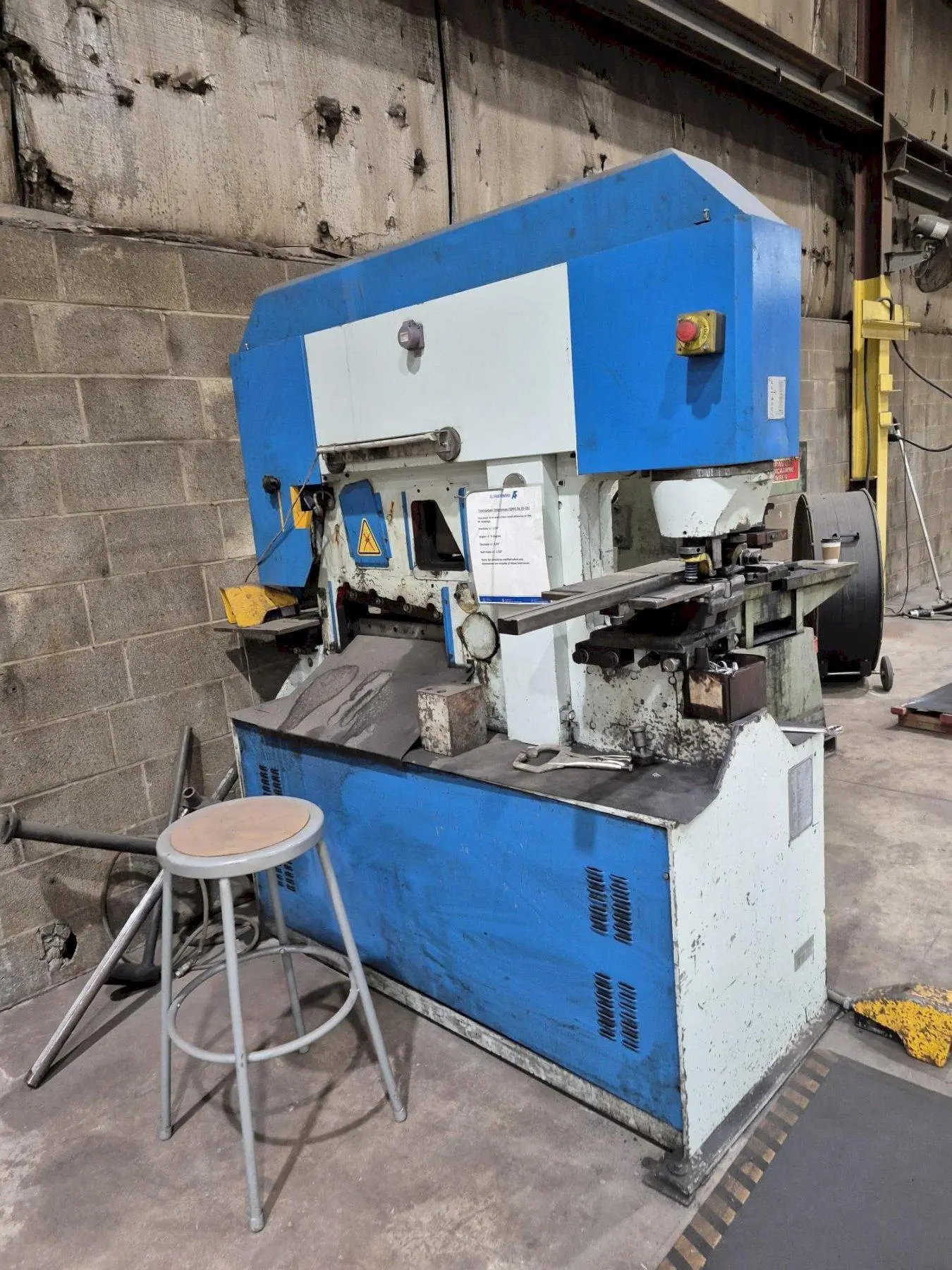

88 TON KNUTH MODEL #HPS 80/150 HYDRUALIC IRONWORKER 2012 : YOBRO #25332

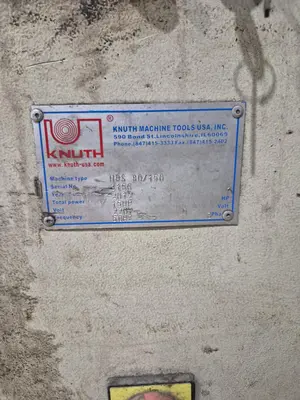

SERIAL 3156
NEW 2012
MODEL HPS 80/150
Pressure Force: 80 t (88 US tons)
Max. Punch Capacity: Ø1.57" x 0.55" (Ø40 x 14 mm)
Table Dimensions: 21.65" x 11.81" (550 x 300 mm)
Diameter x Thickness: 0.94" x 0.94" (24 x 24 mm)
Throat: 11.81" (300 mm)
Stroke: 2.76" (70 mm)
Stroke Number (at 0.79" / 20 mm stroke): 38 H/min
Working Height: 47.05" (1195 mm)
Max. Cutting Capacity Flat (Width): 17.72" x 0.59" (450 x 15 mm)
Max. Cutting Capacity Flat (Thickness): 11.81" x 0.79" (300 x 20 mm)
Knife Length: 18.70" (475 mm)
Cutting Capacity Round: Ø1.77" (Ø45 mm)
Cutting Capacity Square: 1.77" x 1.77" (45 x 45 mm)
Steel Cutter Working Height: 40.63" (1032 mm)
Cutting Capacity 45°: 2.76" x 2.76" x 0.28" (70 x 70 x 7 mm)
Cutting Capacity 90°: 5.12" x 5.12" x 0.51" (130 x 130 x 13 mm)
Profile Cutter Working Height: 49.21" (1250 mm)
Max. Plate Thickness: 0.47" (12 mm)
Width: 2.05" (52 mm)
Depth: 2.05" (52 mm)
Motor Rating Hydraulic Pump: 15 hp (11 kW)
Overall Dimensions: 79.72" x 70.08" x 106.30" (2025 x 1780 x 2700 mm)
Weight: 5,952.5 lbs (2700 kg)
Brand
KNUTH
Type
Ironworkers
Stock No.
25332
