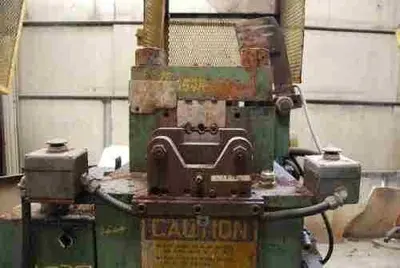

Fenn #30 Hydraulic Tube End Former

MACHINE SPECIFICATIONS:Aluminum Low Carbon Steel Stainless SteelReduce & Expand:     3" x .134" (76.2 mm x 3.40 mm)     2-1/2" x .072" (63.5 mm x 1.82 mm)     2" x .065" (50.8 mm x 1.65 mm)Bead:     3" x .095" (76.2 mm x 2.41 mm)     2-1/4" x .058" (57.1 mm x 1.47 mm)     2" x .049" (50.8 mm x 1.24 mm)Flare:     3" x .145" (76.2 mm x 3.68 mm)     2-1/2" x .083" (63.5 mm x 2.10 mm)     2" x .072" (50.8 mm x 1.82 mm)Clamp Pressure: 57,000 Lbs.Thrust: 30,000 Lbs.Idle Pressure: 200 PSIWorking Pressure: 1,500 PSIWork Stroke: 0" – 4"Single or Double Stroke OperationHydraulics: 25 HP – 230/460/3 Phase – 1800 RPM23 GPM Hydraulic Pump100 Gallon Tank, Control Valves & Gauges
EQUIPPED WITH:Automatic Water-Cooled Oil CoolerFiltration: 74 Micron Suction Filter, 10 Micron Return Line FilterFoot Operated PedalIndex Slide for (2) Station FormingDimensions: Frame Unit: 42" x 22", 1800 Lbs.Hydraulic Unit: 50" x 40", 1200 Lbs.
