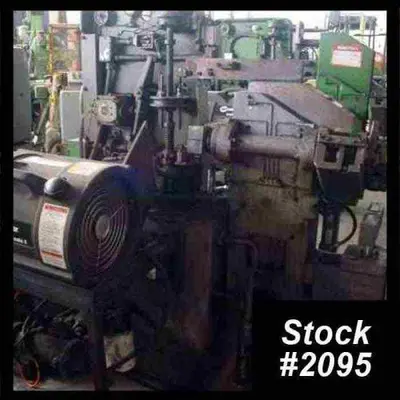

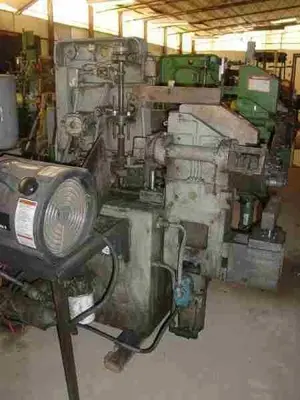

1"x .065" Pines #5T Tube Bender

SPECIFICATIONS:Material:Round Tubing: Non-Ferrous, 25,000 psi (two): 1" x .072" (25.4 mm x 1.82 mm)Mild Steel, Y.P. 40,000 psi (two): 1" x .065" (25.4 mm x 1.65 mm)Stainless, Y.P. 60,000 psi (two): 1" x .049" (25.4 mm x 1.24 mm)Square Tube: Mild Steel (two): 7/8" x .035" (22.2 mm x .889 mm)Round Bar: Mild Steel (two): 5/8" (15.8 mm)Square Bar: Mild Steel (two): 1/2" (12.7 mm)Hydraulic Power: 5 TonsBends Per Hour: 2 Tubes, 1800/HourMaximum Capacity: 1" x .065" Wall, Steel TubeMaximum Angle: 100 Degrees, Normal ToolingMaximum C.L.R.: 4-1/2", 90 Degrees Bend or LessMinimum C.L.R.: Approx. 2 to 3 x Work DiameterHeight Floor to Dies: 40"Motor Data: 20 HP
OVERALL DIMENSIONS: 3′ 4" x 7′ x 5′ 4" HighAPPROXIMATE WEIGHT: 3,100 Lbs.
