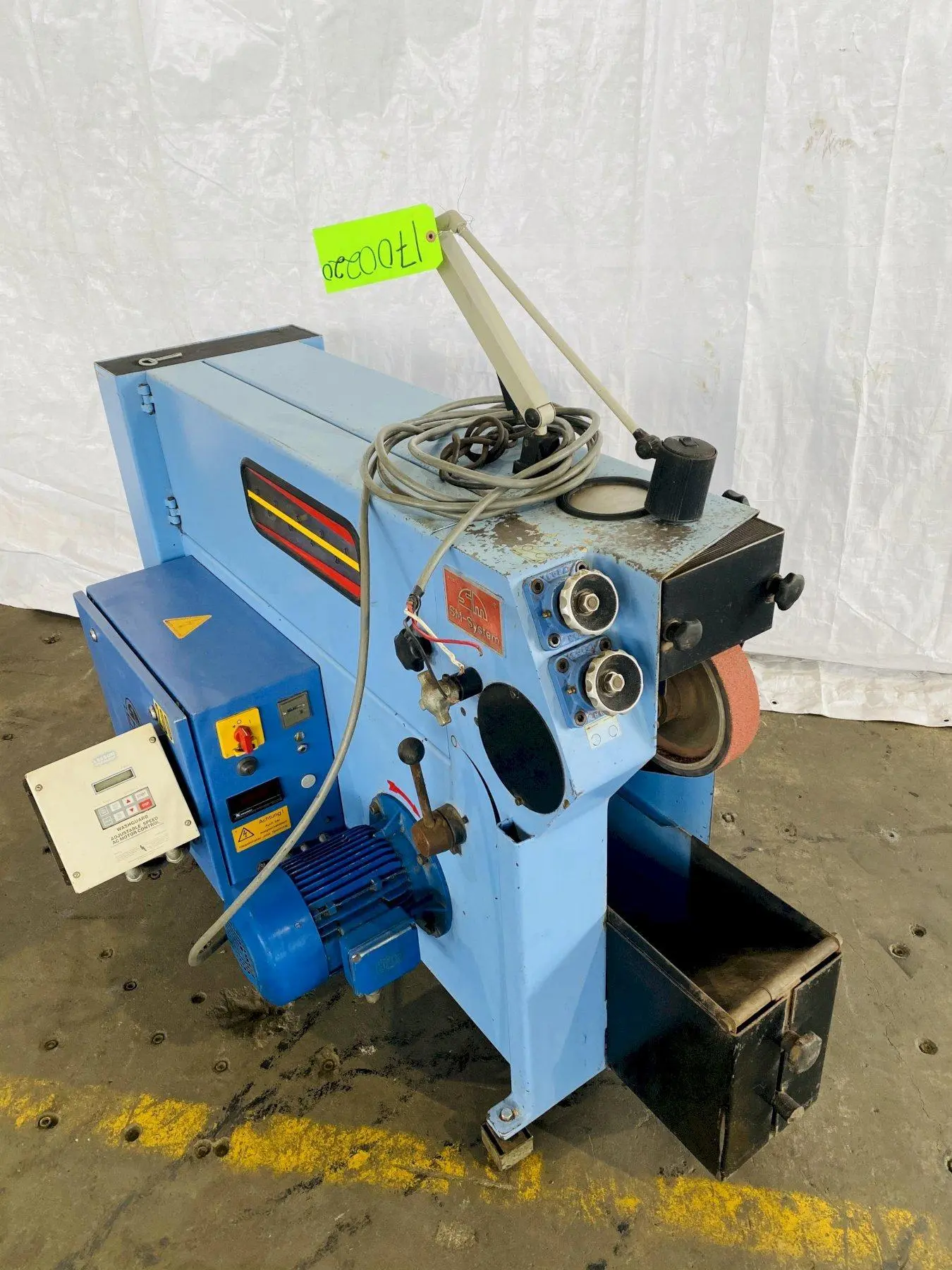

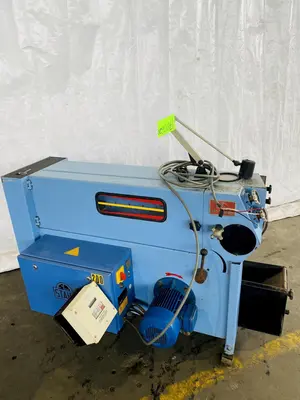

USED STAHL SMF-350


Specifications:

Grinding Spindle Diameter:................................................ 1.38" (35mm)
Grinding Spindle Height:................................................. 25.98"(660mm)
Belt Length:          ................................................ 137.80" (3500mm)
Maximum Belt Width:....................................................... 3.15" (80mm)

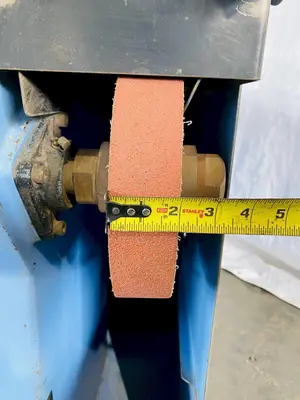

Contact Wheel Diameter – Minimum:........................................ 4.72" (120mm)
                       - Maximum:....................................... 13.78" (350mm)
Motor:                   ........................................... 6.6 / 5.2 kW  3/60
Overall Dimensions (Approx.):........................................ 68" x 30" x 43" H
Weight (Est.):        ...................................................... 2,000 Lbs.

Equipped With:

Control Level for Automatic Start-Up
Lateral Belt Adjustment
Instant Change of Belt Track
Infinitely Variable Adjustment w/ Belt Stretch Compensation

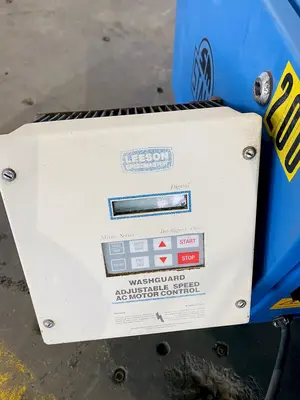

Belt Tracer ArmWashguard Adjustable Speed AC Motor Control
