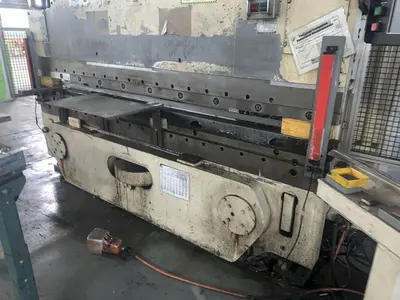

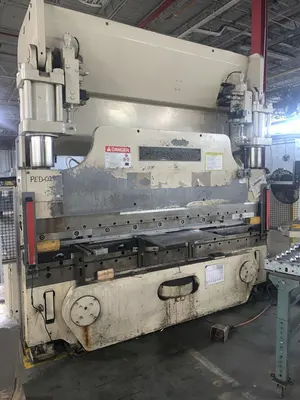

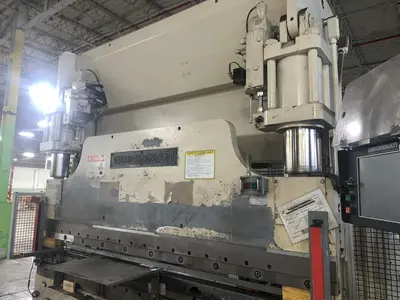

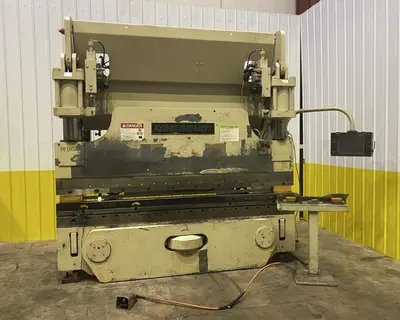

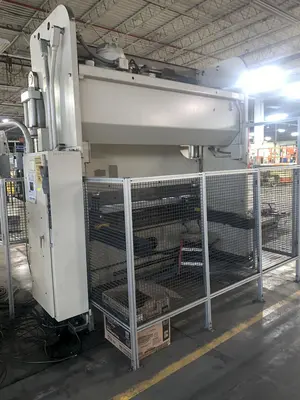

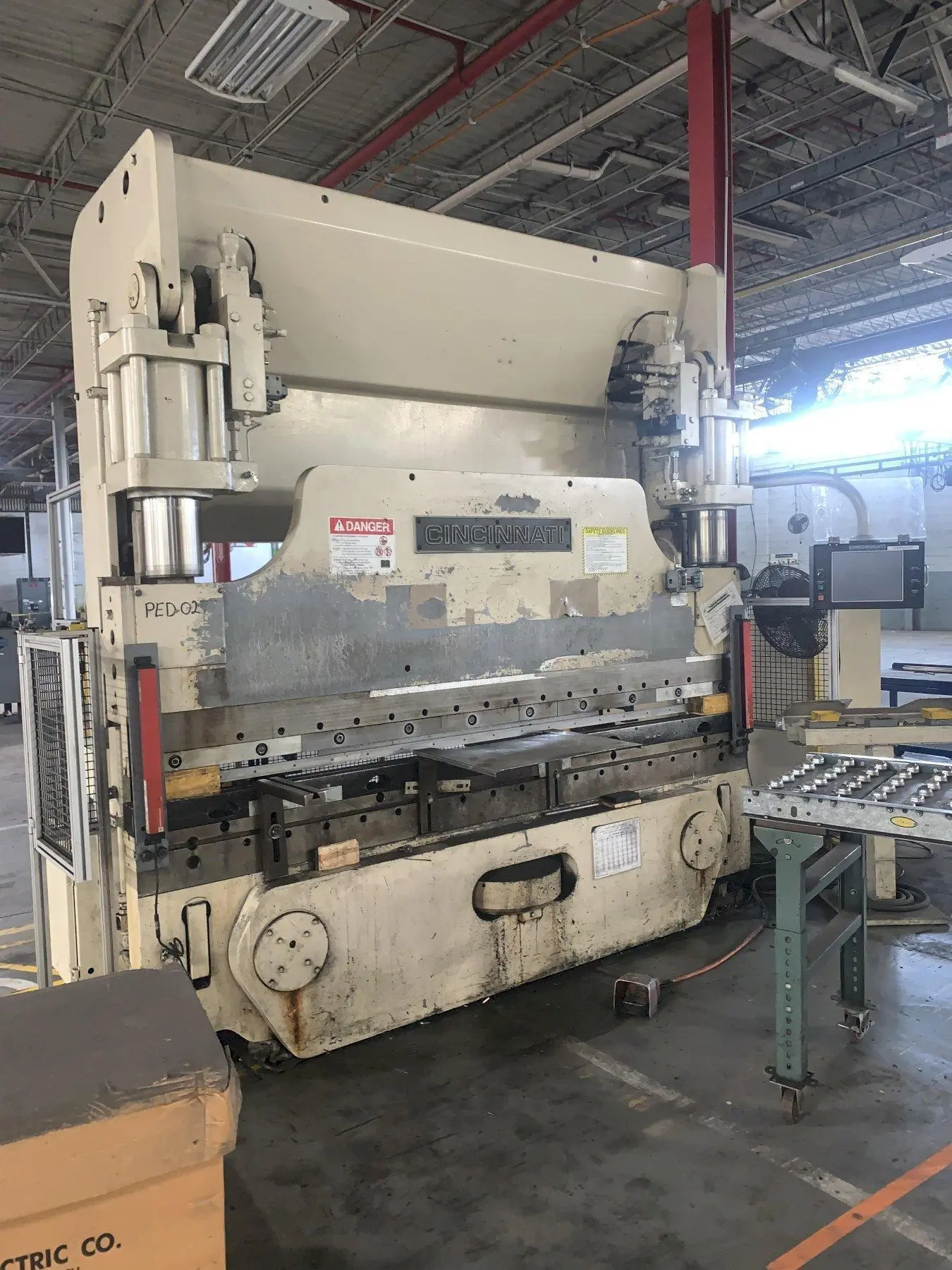

USED 1986 CINCINNATI 175-FMII

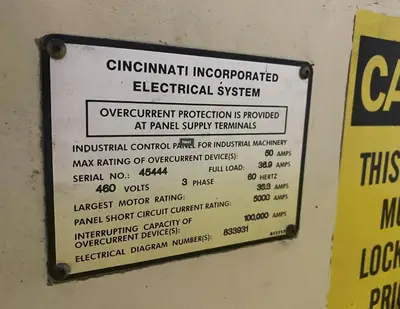

SERIAL ............................ 45444YEAR NEW .......................... 1986

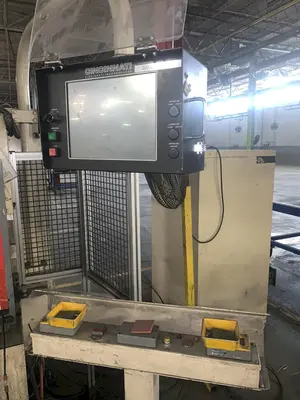

UPGRADED TOUCHSCREEN CONTROLS ..... 04/2011MODEL.............................. 175FMII X 8
CAPACITY .......................... 175 TON
OVERALL LENGTH OF BED AND RAM ..... 10'
DISTANCE BETWEEN HOUSING .......... 8'6"
STROKE OF RAM ..................... 10"
OPEN HEIGHT ....................... 17"
CLOSED HEIGHT ..................... 7"
RAM ADVANCE SPEED ................. 132 IPM
RAM PRESSING SPEED  ............... 18 IPM

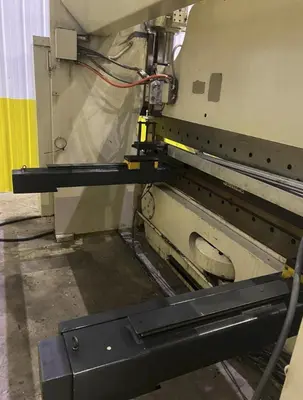

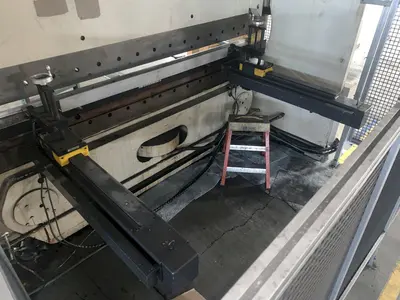

RAM RETURN SPEED .................. 190 IPMPOWER BACKGUAGES .................. 48"
AUTO CROWNING ..................... YES
POWER CLAMPING ON DIE RAIL ........ YESFLOOR STANDING, NO PIT REQUIRED ... YES
ELECTRIC FOOT TRIP ................ YES
PEDESTAL STAND WITH PALM BUTTONS .. YES
MOTOR ............................. 30 HP
