Used 4,500 Liter Stainless Steel Beer Barrel Tank | Jacketed Brewery Process Vessel

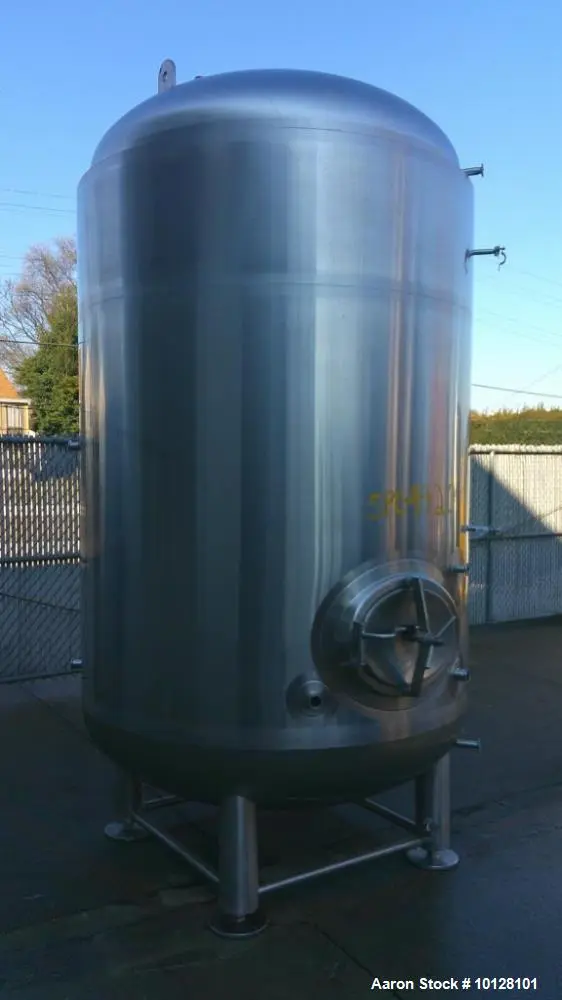

Used 1188.77 gal (4500 L) Beer Barrel tank, built by ABC- Kinglai Co, Ltd for Glacier Tanks LLC. Built 05/2016. This stainless steel tank is about 59" in diameter with a 81" straight side and 12" dished heads. Volume 4.5 m3. Design pressure shell 0.1 MPa, jacket 0.15 Mpa. Design temperature 98 degrees C. jacket on the side of tank only. Dished heads. Two top lift lugs. Tank has four legs. Top has one 3" tri clamp nozzle and one 1.25" tri clamp nozzle. Bottom nozzles one 1.25" tri clamp and one 1.5" tri clamp. Side nozzles one 16" x 13" elliptical hinged lid manway, five 1.25" tri clamp nozzles for jackets, two 1.25" tri clamp, two .75" tri clamp nozzles, and one .75" coupling. Serial# AKL16-A-10005. Overall dimensions70" x 70" x 122" tall.

Used Equipment Facts About This Machine
Manufacturer: ABC-Kinglai Co., Ltd. for Glacier Tanks LLC
Equipment Type: Beer Barrel / Brewery Process Tank
Capacity: 1188.77 Gallons (4,500 Liters / 4.5 m³)
Condition: Used
Year Built: 05/2016
Serial Number: AKL16-A-10005

Description
Used 4,500 liter stainless steel beer barrel tank manufactured by ABC-Kinglai Co., Ltd. for Glacier Tanks LLC. Designed for brewery and beverage processing applications, this vessel features sidewall jacketing for temperature-controlled storage and processing.
The tank is constructed with dished heads and mounted on four legs for stable installation. Designed for a shell pressure rating of 0.1 MPa and jacket pressure rating of 0.15 MPa, the vessel is suitable for brewery operations requiring controlled heating or cooling.
This process tank includes multiple tri-clamp sanitary connections, an elliptical hinged manway for interior access, and dual top lifting lugs for handling and installation. Previously configured for brewery service, the tank is ideal for beer storage, fermentation support, and beverage processing applications.

Specifications

Manufacturer: ABC-Kinglai Co., Ltd.
Built For: Glacier Tanks LLC
Capacity: 1188.77 gallons (4,500 liters / 4.5 m³)
Type: Beer barrel / process tank
Material: Stainless steel
Year Built: 05/2016
Serial Number: AKL16-A-10005

Vessel Dimensions

Diameter: Approx. 59”
Straight Side Height: Approx. 81”
Overall Dimensions: 70” x 70” x 122” high

Pressure & Temperature Ratings

Shell Design Pressure: 0.1 MPa
Jacket Design Pressure: 0.15 MPa
Design Temperature: 98°C

Construction Features

Sidewall jacket only
Dished heads
Four legs
Two top lift lugs

Top Connections

(1) 3” tri-clamp nozzle
(1) 1.25” tri-clamp nozzle

Bottom Connections

(1) 1.25” tri-clamp nozzle
(1) 1.5” tri-clamp nozzle

Side Connections

(1) 16” x 13” elliptical hinged manway
(5) 1.25” tri-clamp jacket nozzles
(2) 1.25” tri-clamp nozzles
(2) 0.75” tri-clamp nozzles
(1) 0.75” coupling

Applications
Ideal for brewery production, beverage storage, fermentation support, and sanitary liquid processing.

Products This Equipment Would Be Used For

Beer storage
Craft beer production
Fermentation support
Kombucha processing
Cider production
Beverage ingredients
Winery applications
Liquid food products
Distillery processing
Process liquid storage
