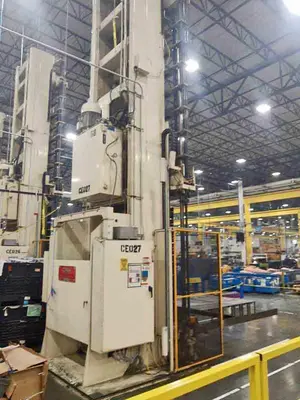

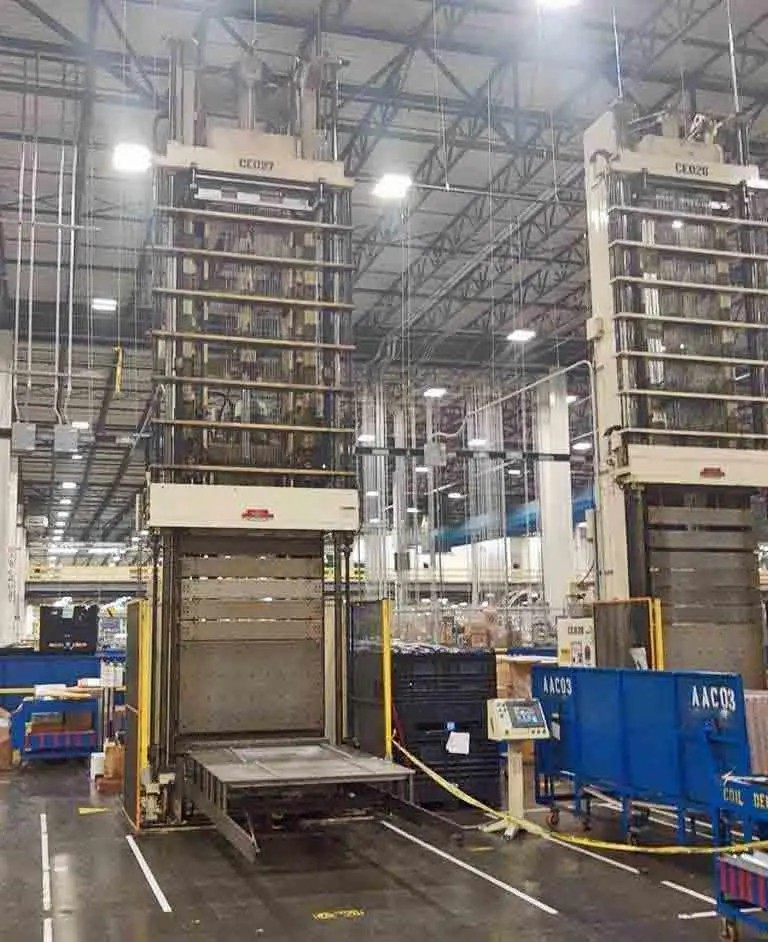

USED 2004 OAK CSE-M590-950


Oak Vertical Expander

Model: CSE-M590-950

Capacity:  108" Max. Coil between End Plates
            48" Min. Coil between End Plates
            50" Max. Fin Length

Pattern:  0.375" - 1.000" x 0.866" Staggered
          2 Rows, 49/50 holes per row (99 Total)

Options:  Compact Single
          Standard Lift with Fixed Enclosures
          Self-Storing Back Plates with Powered Height Adj.
          Carbide Bullets
          1 + 1 Coil Expansion
          Automatic Coil Height Control
          Rod Short-out System (3) plates
          Finial Expander Support Mechanism
          Quick Change Receiver
          Coil Ejector
          Hydraulic System Cooling (oil to air)
          End Sheet Detector

Power:  Machine:  480 Volt, 3 Ph, 60 Hz.
Control:  24 VDC Input, 110 VAC Output
Air:  8 CFM @ 90 PSI

Weight: 39,000 lbs.

Removed and in storage: Toledo, OH.
