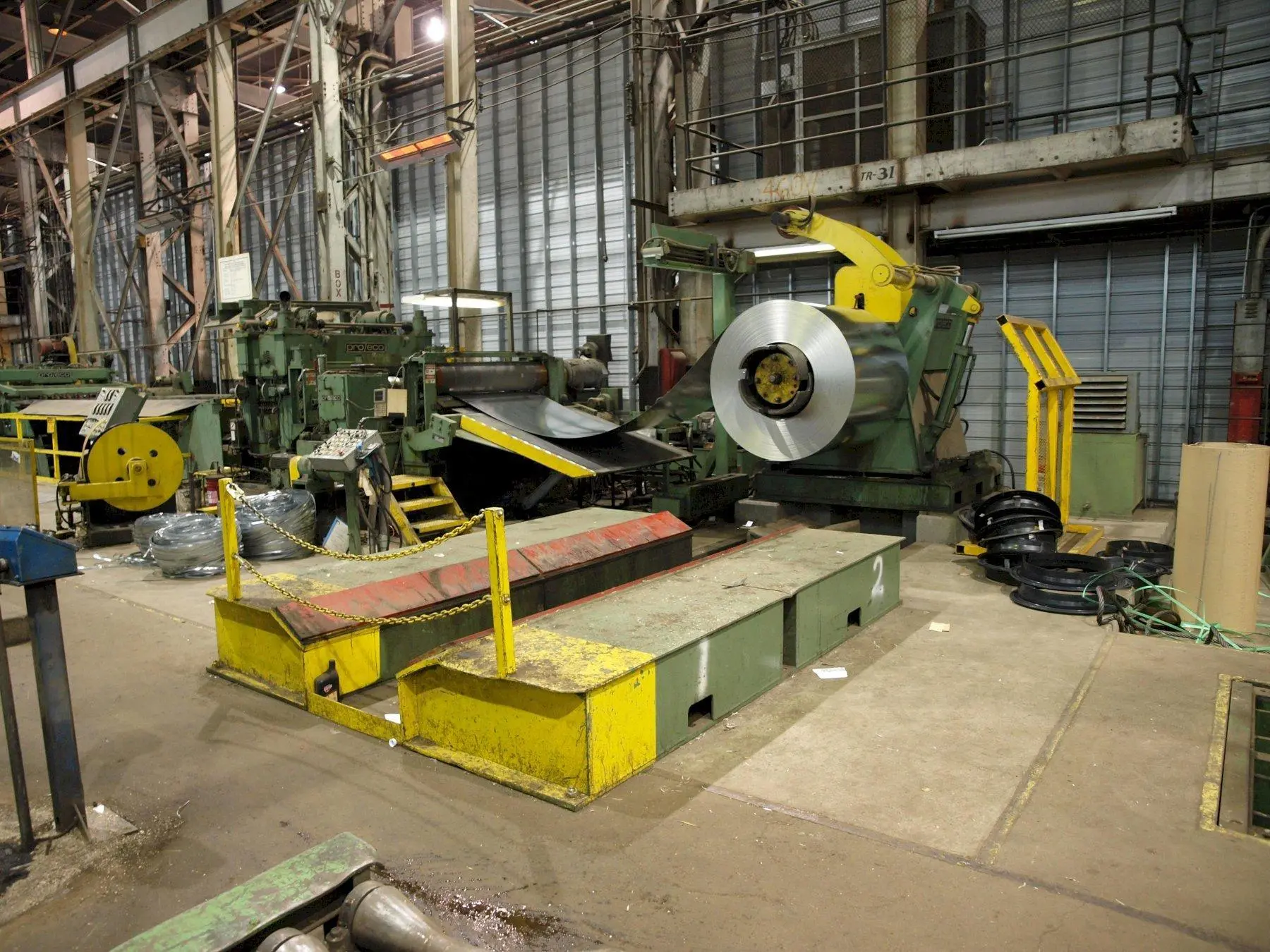

60,000 LB X 60" X .104" PRO-ECO CUT THE LENGTH LINE. STOCK # 0629322

Pro Eco Cut-to-Length Line w/6 HI Leveler

Max Coil Capacity:  60,000 lbs.
Max. Coil Width:  60"
Max. Coil O.D.:  72"
Coil I.D.:  20" - 24"
Material Thickness: 0.104" Max.

Consisting of the following:

-(2) Coil Staging System for Coil Car:

-Entry Coil Car:
  Pit Type

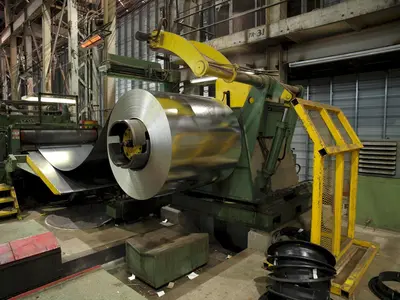

-Pro Eco Uncoiler:
  Hydraulic Expansion
  Pumpkin Tooth Mandrel
  Powered Holddown Roll
  Threading Drive
  Air Clutch and Brake
  Sliding Base

-North American Edge Guide System:

-Peeler Table:
  Model:  PB-104
  Driven Pinch Rolls

-Edge Trimmer:
  Double Stub Type
  Powered Width adjustment on Heads

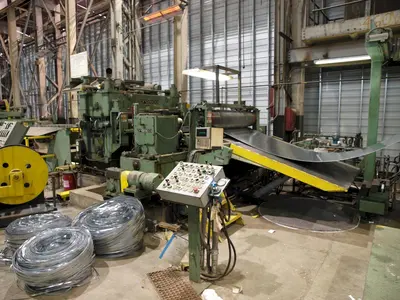

-Scrap Winder:
  Hydraulic Motor Powered
  Oscillate Wind
  Powered Opening for Scrap Dump

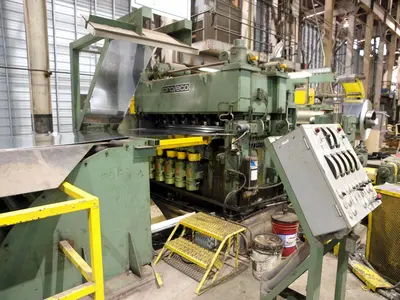

-Pro Eco Leveler: 6 HI
  Width:  60"
  Entry Driven Pinch Rolls
  Number of Work Rolls:  19; 9 over 10
  7 Flights of Backups
  5 Flights Motorized w/Joystick adjustment

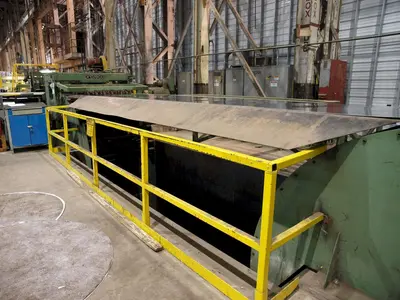

-Looping Pit:
  Entry and Exit Catenary Rolls
  Crossover Table

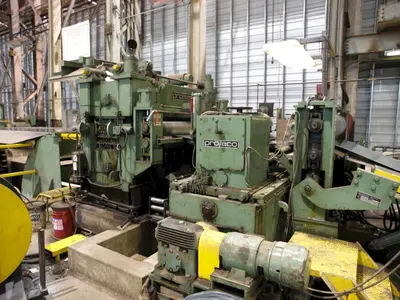

-Pro Eco Roll Feed Unit:
  Entry Strip Holddown
  Entry Passline Rolls
  Unico Drive

-Pro Eco High Speed Mechanical Shear:
  Model:  MCS104-60-300
  Max. Capacity:  0.104"
  300 Strokes/Min.
  AC Drive Motor w/Air Clutch
  Wichita Brake

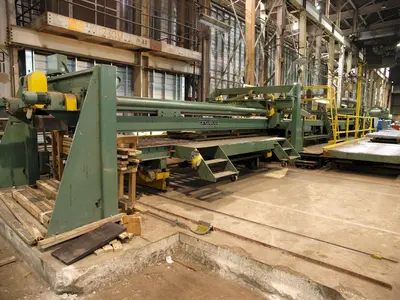

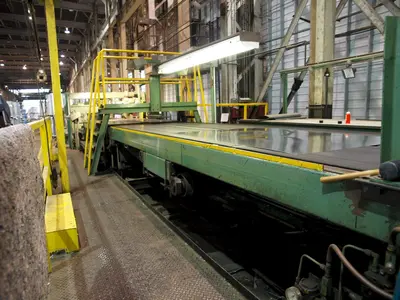

-Pro Eco Runout Table:
  Twin Driven Belts

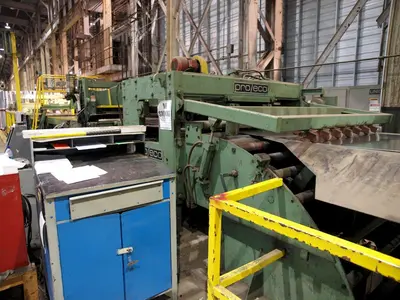

-Pro Eco Stacker:
  Powered Width Adjustment
  Powered Length Adjustment
  Scissors Lift Table w/Powered Conveyor Rolls
  Side Discharge Design

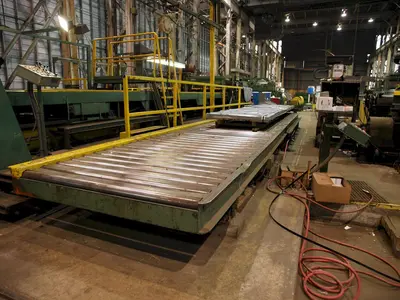

-Exit Conveyor:
  Powered Conveyor Rolls
  w/15,000 lb. Built-In Scale

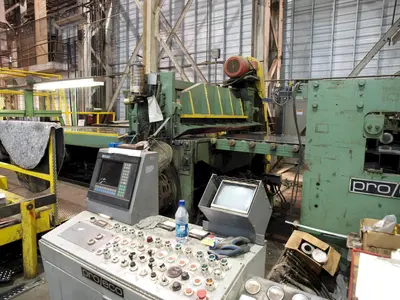

-Operator Control Panels:

-Line Direction: Right to Left

-Line is installed and under power
