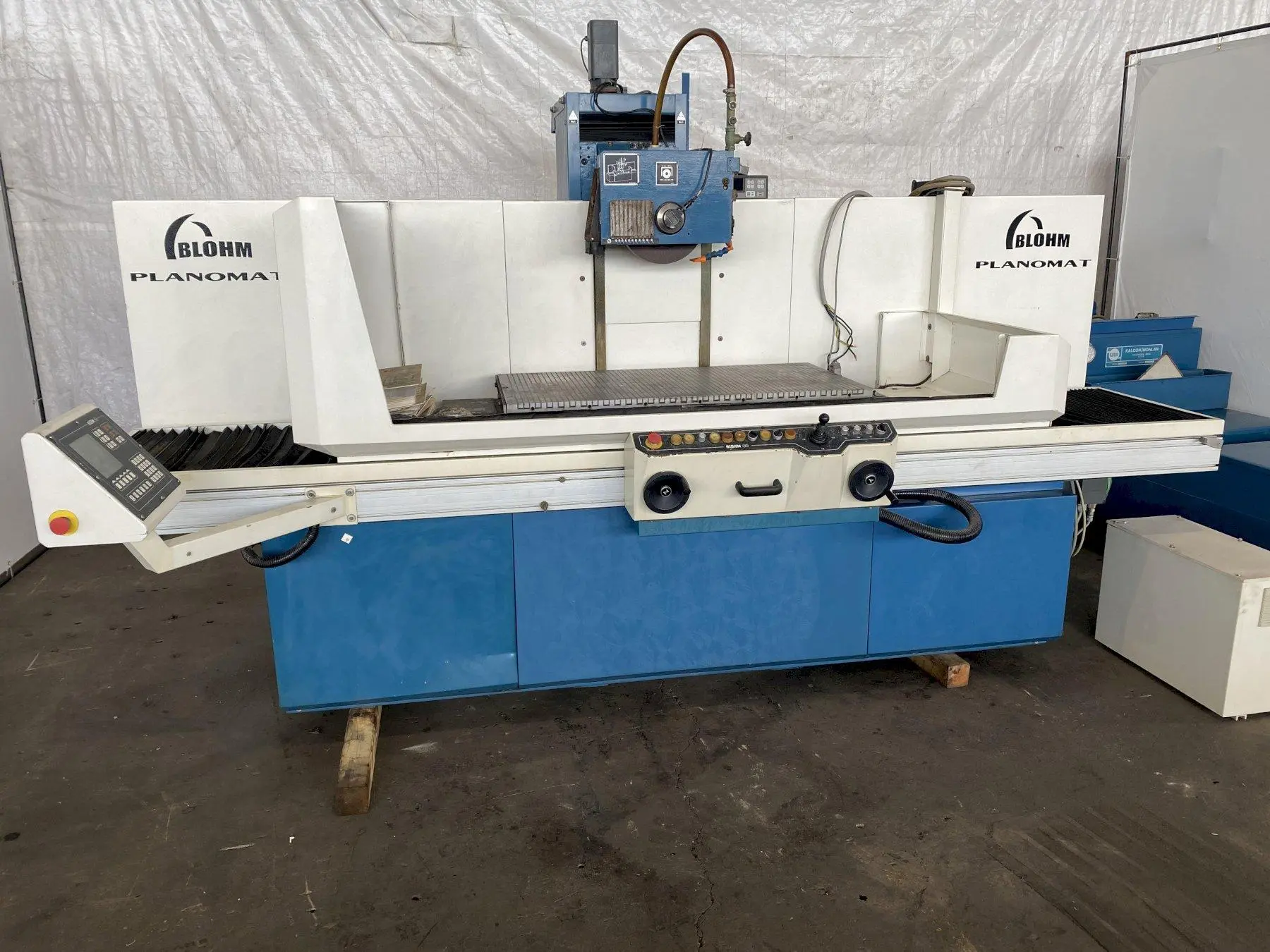

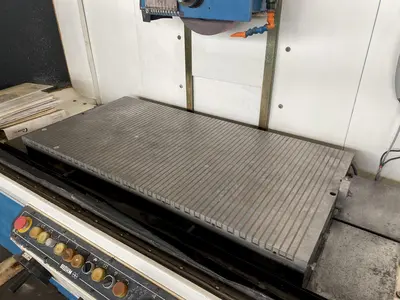

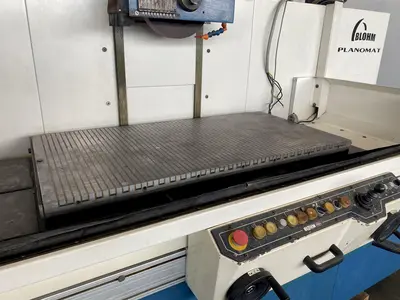

SERIAL.............................: 14-196MODEL..............................: 612SPECIFICATIONS: TABLE LENGTH.......................: 63"TABLE WIDTH........................: 24"MAGNETIC TABLE LENGTH..............: 48"MAGNETIC TABLE WIDTH...............: 24"TABLE HEIGHT ABOVE FLOOR...........: 36"MAX TABLE LOAD.....................: 2,200 LBS TRAVELS:X AXIS.............................: 51.18"Y AXIS.............................: 21.6"Z AXIS.............................: 21.7"TRAVERSING SPEEDS:X AXIS SPEED.......................: 30-3000 MM/MINY AXIS SPEED.......................: 4-3750 MM/MINZ AXIS SPEED.......................: 4-400 MM/MINGRINDING WHEEL DIMENSION:GRINDING WHEEL DIAMETERS...........: 7.40" - 15.74" (MIN - MAX)GRINDING WHEEL WIDTHS..............: 1.18" - 3.14" (MIN - MAX)STANDARD WHEEL WIDTH...............: 1.96"GRINDING WHEEL HOLD DIAMETER.......: 5"EQUIPPED WITH: SBS DYNAMIC BALANCING SYSTEMKALCON/MONLAN FILTERING SYSTEMFLOOR SPACE REQUIRED: WIDTH X DEPTH X HEIGHT105.18" X 77.55" X 96.45"APPROX 11,900 LBS
