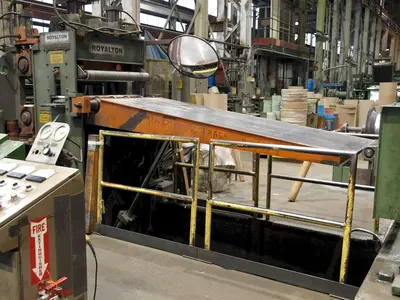

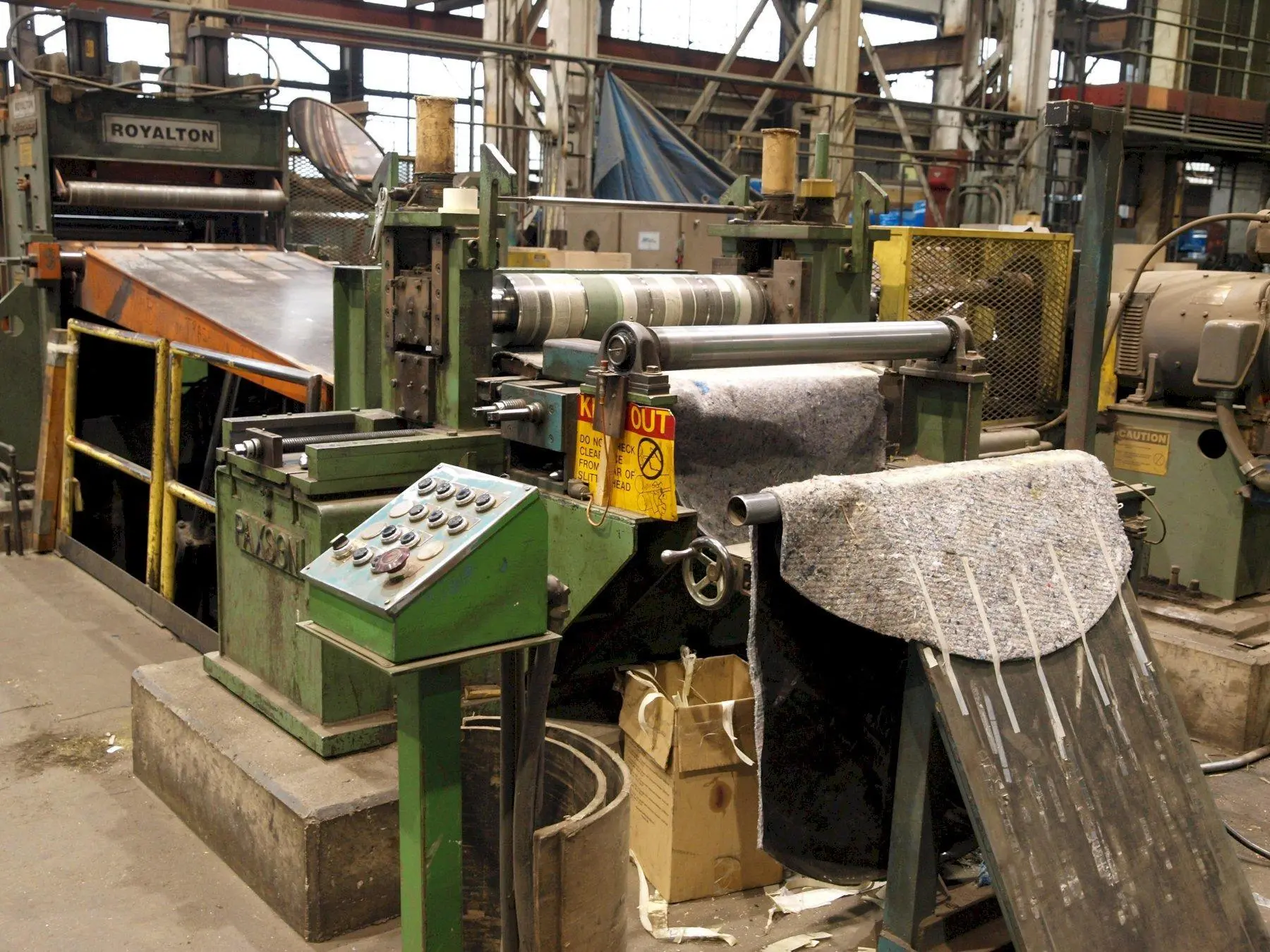

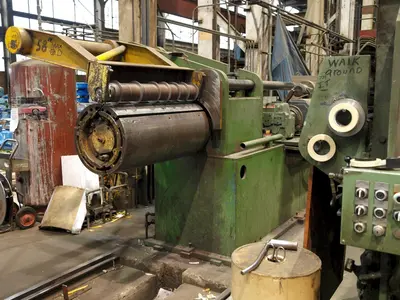

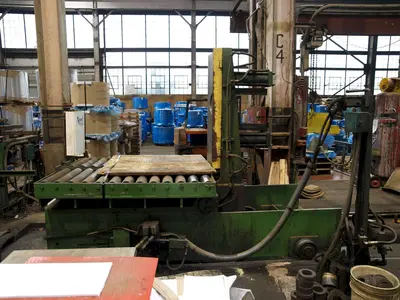

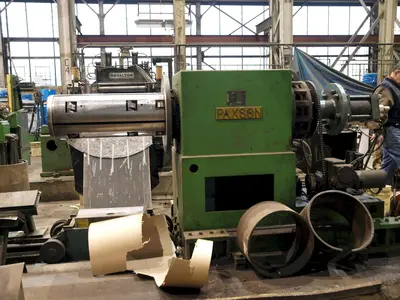

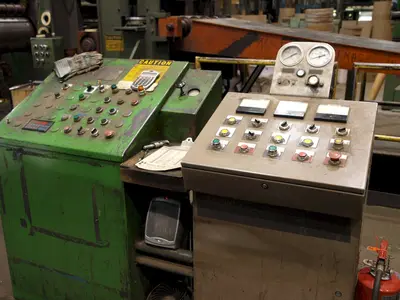

30,000 LB X 36" WIDE X 4" ARBOR PAXSON SLITTING LINE. STOCK #0741122.
Overview
Specifications
Material: CR, Galv, Tin Plate, Silicone, StainlessWeight Capacity: 30,000 lbs.Width Capacity: 36"Thickness Range: 0.006" to 0.095"Coil I.D.: 16" to 20"Coil O.D.: 72" Entry70" ExitLine Speed: 600 to 1200 FPMLine Direction: Right to LeftConsisting of the following:-Entry Coil Car:Pit TypeSelf-Contained Hydraulics-Uncoiler:Hydraulic Expansion16" - 20" Coil I.D. RangeSliding BaseWichita BrakeAC Motor Threading Drive-Photoelectric Edge Detector:-Peeler Table:Entry Passline RollsEntry Side Guides-Slitter Heads:(2) Heads (Crane Removal Type)4.00" Dia. x 38" Face ArborsParallel Arbor Adjustment50 HP DC Motor Drive, 1150 to 2300 RPM W/BlowerRight Angle Reducer/Pinion Stand, W/3.625:1 Ratio-Paxson Scrap Winder:Hydraulic Motor DrivePush button scrap ball dumpHydraulic level wind24" W x 30" Dia. Capacity scrap ball-Pit Cross Over Table:-Tension Stand: RoyaltonCombination Roll and Pad TypePad unit, hydraulic cylinder raise and lowerTension by air bag on the bottom16" dia. x 40" face urethane tension rollsDual air brakes, drive shafts to the rollsEntry Separator Tooling BarExit feed up tableExit steel pass line rolls, 42" face-Recoiler:16" Dia. Drum with Pads for 20" Dia.Manual Clamp and Expansion70" Max. O.D.Hydraulic PushoffOverarm Separator50 HP DC Motor, 850 to 2500 RPM, 500 V, w/BlowerHolding BrakeNuttall Gear Reducer w/14.6:1 ratio-Exit Coil Car/Upender:Hydraulic Cylinder for Tipping"V" Cradle, 51" longTwin Hydraulic Cylinder W/16" Lift60" wide x 66" long Conveyor Rolls on Flat side5" slot down the middle of the conveyor rollsHydraulic Motor Driven for Traversing-Operators Control Panels:-Removed and in Storage: Toledo, OH.
