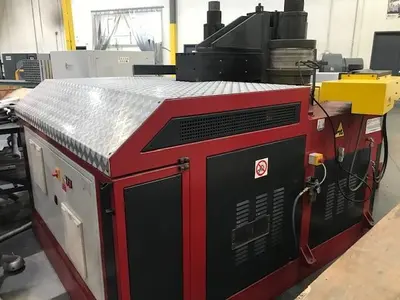

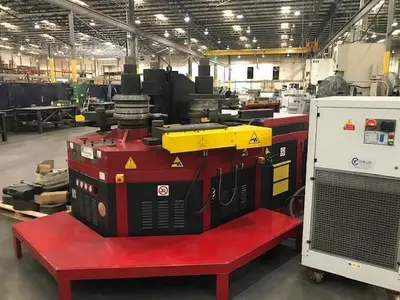

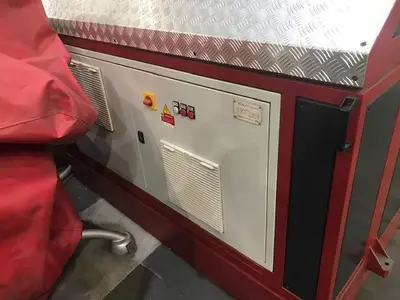

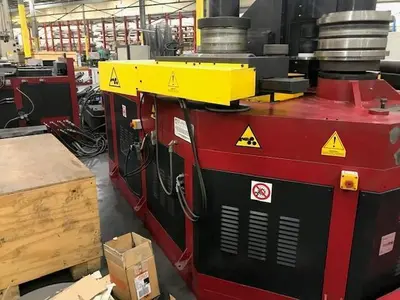

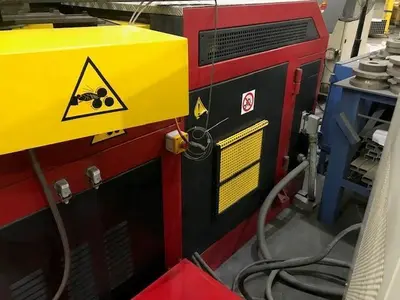

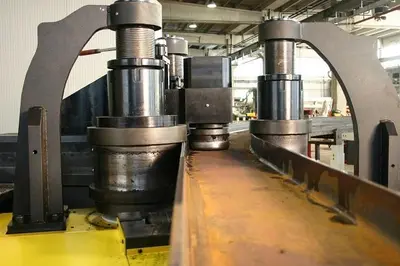

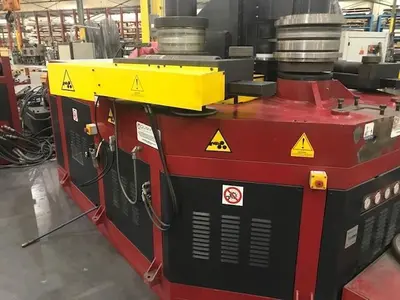

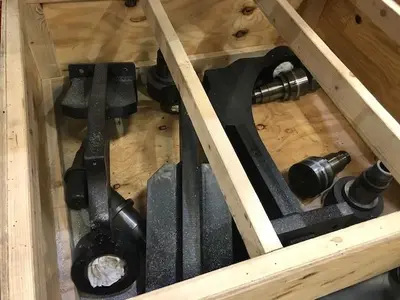

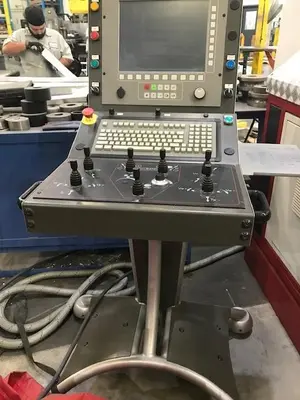

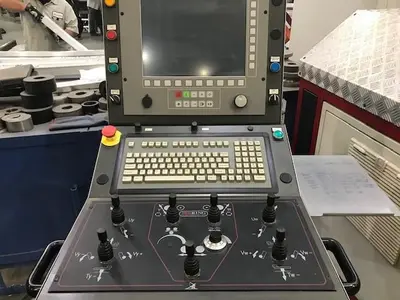

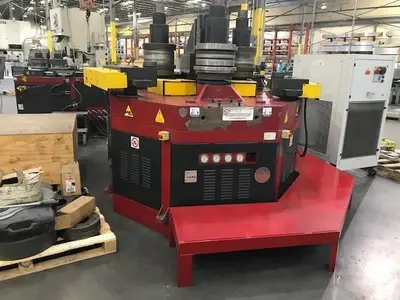

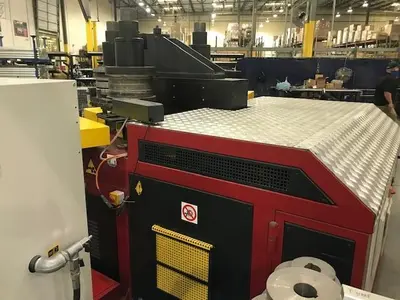

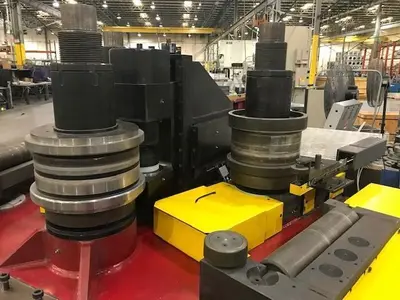

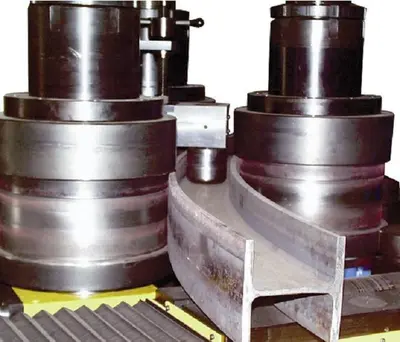

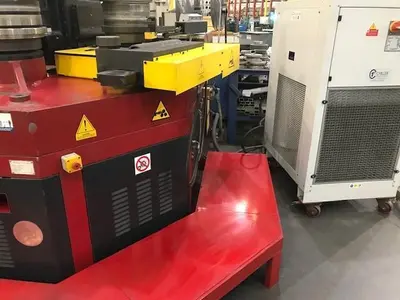

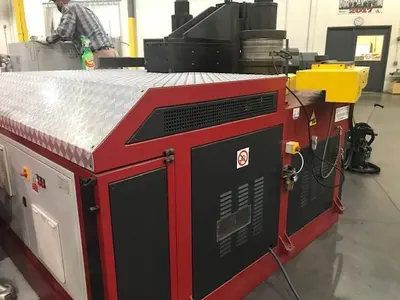

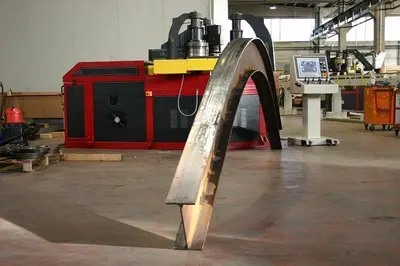

Tauring Alpha 200CNC Angle Bending Roll (2015)Specifications (Preliminary)Round Tube: 10.75" x 0.5" / Min. Radius: 87"Square Tube: 10" x 10" x .40" / Min. Radius: 80"Flat Bar (Hard Way): 10" x 2.3 / Min. Radius: 32"Angle (Leg Out): 7.8" x 7.8" x 0.78" / Min. Radius: 78"H Beam: IPE 330 / Min. Radius: 75" PLEASE NOTE - MINIMUM RADII SHOWN MAY REQUIRE MULTI- PASSDriven Rolls: 3Shaft Diameter: 490mmStandard Shaft Working Length: 15.75"Shaft Revolutions Per Minute: 7.1 R.P.M.Main Motor Motor: 24.1 HPDimensions / Weight:41"W x 61"L x 74"H / Machine Weight - 22,046 lbs.Current Electrics:Voltage - 230 Volt/3 Phase/60Hz and 480 /3 /60Hz availableEquipped With:Alpha200CNCi, HE Device, Hydraulic Roll Adjustment, Universal Tool Set - 1 SetCNC Control:Alpha200CNCi - "CNC" stands for "computerized, numerical control", "i" for "interpolation" and "PLUS" for "plus value". It is the evolution of an already astonishing product that today is even more amazing. The CNCi is an advanced numerical control Windows based able to manage two or more interpolated axes with unsurpassed progression and accuracy. The 15" touch screen can activate macro-instructions and commands by simply touching the icons presented on the screen. One of CNCi strength points is represented by its simple and intuitive software, that allows programming any types of geometrical shape - regular and irregular - by simply drawing it on the screen or importing it from a "dxf" file. The shape can then be modified by simply acting on its segments so to make them longer or shorter or clicking on the arrow to enlarge or reduce the bending curves; all tasks are recognized by the "bending program"Call for more information:
