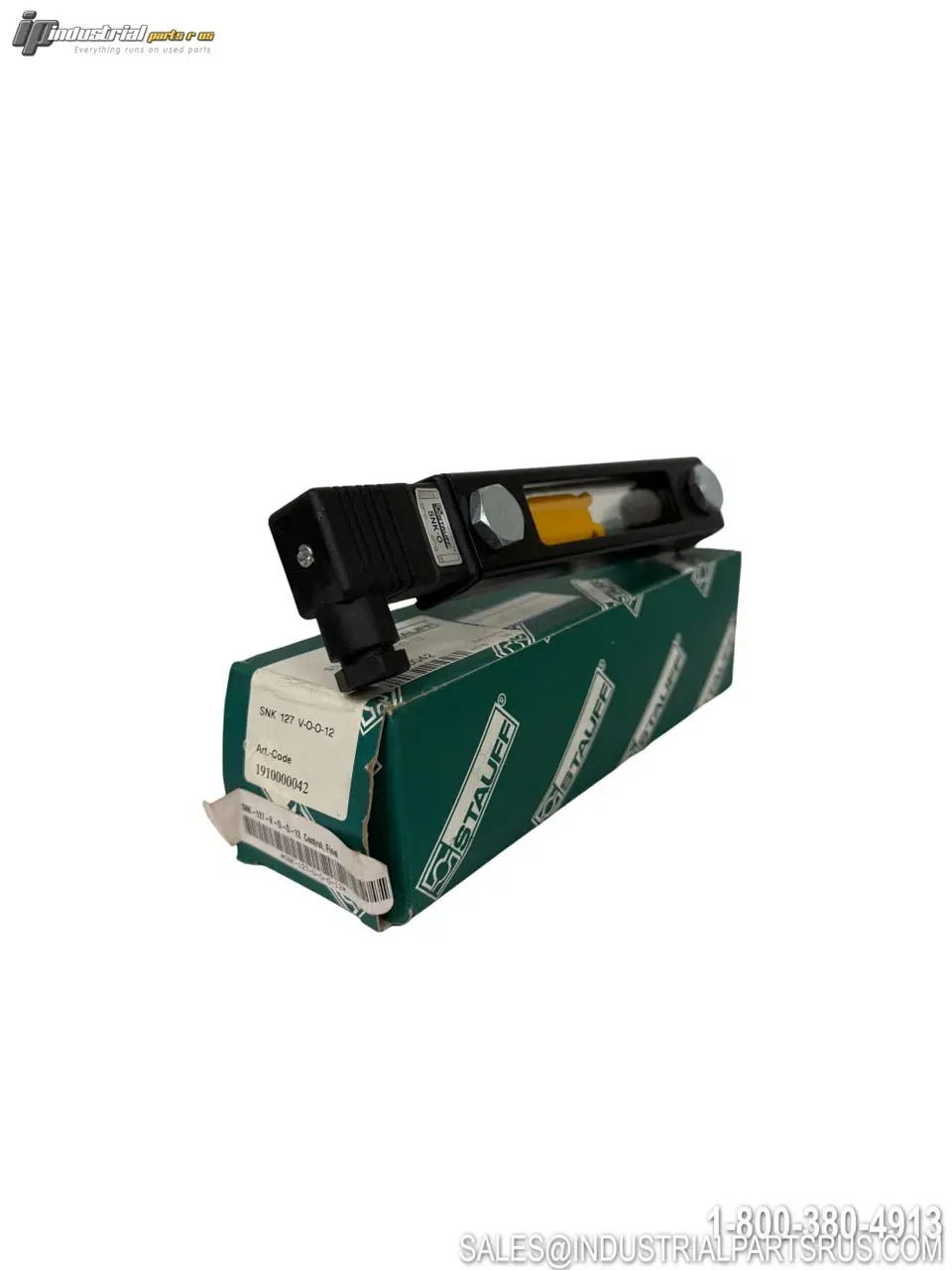

NEW STAUFF SNK 127 V-O-O-12

The Stauff SNK 127 V-O-O-12 is a hydraulic level gauge designed for visual and electrical fluid level indication in hydraulic reservoirs. This unit features a break contact (normally closed) electrical function, M12 standard banjo bolt connection, and does not include a thermometer. The gauge is suitable for maximum tank pressures not exceeding 29 PSI (2 bar).
Specification
Value
Brand
Stauff
Model/Part Number
SNK 127 V-O-O-12
Type
Level Sensor
Series
SNK
Size
127 mm (5.00 in)
Electrical Function
Break Contact (n/c)
Contact Type
Normally Closed
Banjo Bolt Size
M12 (Standard)
Thermometer
Without Thermometer
Seal Material
Viton FPM
Maximum Pressure
29 PSI (2 bar)
Operating Temperature
-22°F to +176°F (-30°C to +80°C)
Window Material
Polyamide
Housing Material
Aluminum
Finish
Powder-Coated Black
IP Rating
IP65
Length
61 mm
Width
215 mm
Height
34.5 mm
Gross Weight
0.279 kg
Stauff Material Number
1910000042
We warranty all items for 30 days from date of purchase.

SKU: AI1528
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Relay
Sensor Type: Float Level Sensor
Manufacturer: Stauff
Part Number: SNK 127 V-O-O-12
Shelf: K-49
Model: SNK 127 V-O-O-12
MPN: SNK 127 V-O-O-12
Type: Level Sensor
