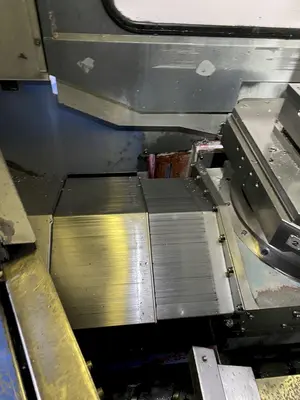

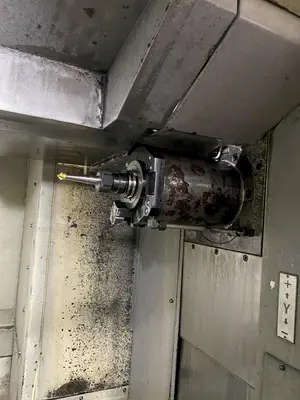

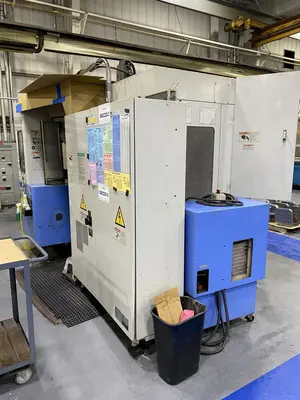

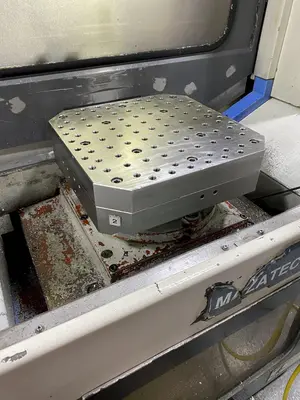

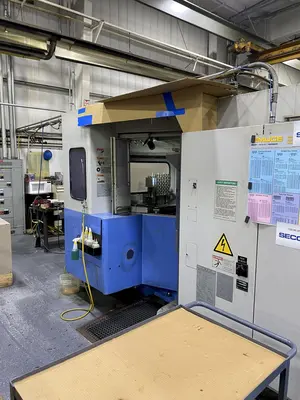

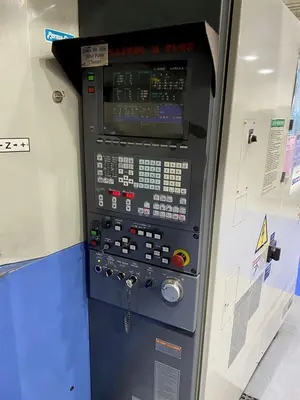

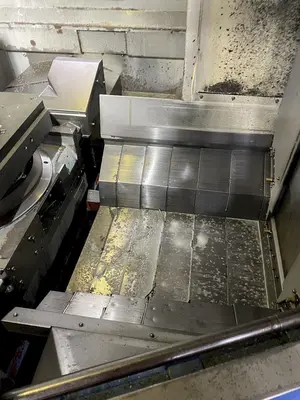

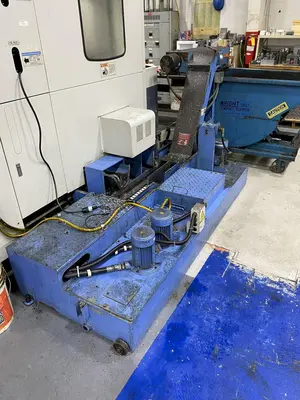

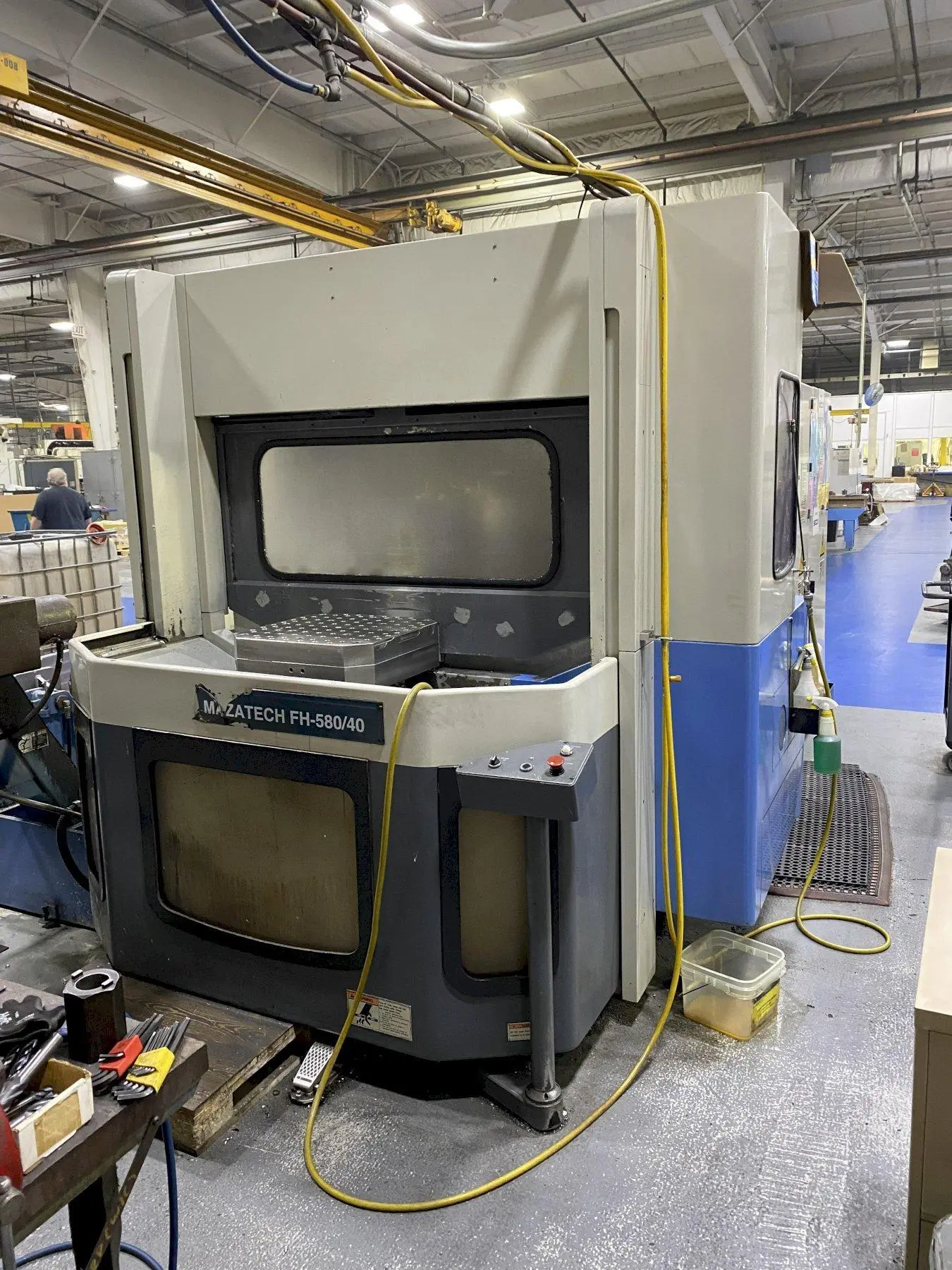

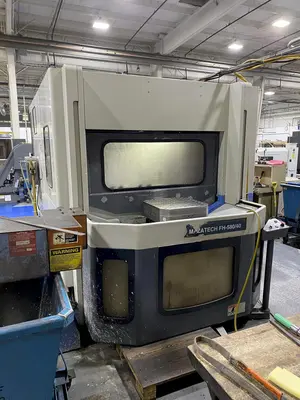

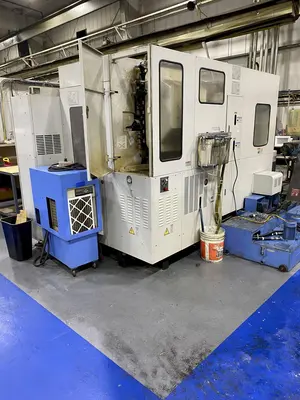

USED MAZAK FH-580/40

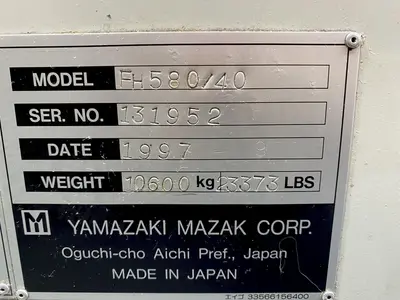

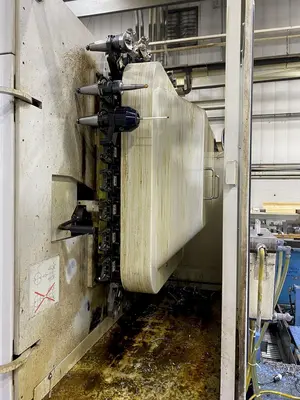

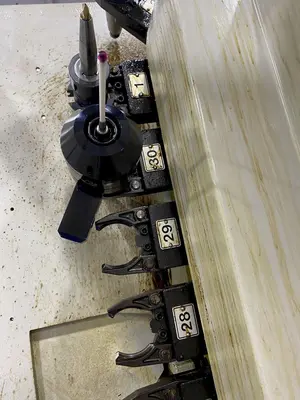

SERIAL #..............................: 131952MODEL.................................: FH-580/40SPECIFICATIONS:X AXIS................................: 27.95"Y AXIS................................: 24.02"Z AXIS................................: 25.98"A AXIS................................: INFINITE VARIABLEPALLET SIZE...........................: 20" X 20"ATC...................................: 30SPINDLE RPM...........................: 12,000MOTOR.................................: 30 HPSPECIFICATIONS: - X-axis 27.95" (710 mm)  Rapid Traverse 1260 IPM (32000 MM/min)  Cutting Feedrate .04-1260 IPM (1-32000 mm/min)- Y-axis 24.02" (610 mm)  Same As X-axis- Z-axis 25.98" (660 mm)  Same As X-axis- Center Spindle To Top Pallet 1.97-25.98" (50-660 mm)- Spindle Nose To Center Of Pallet 5.91-31.69" (150-810 mm)- Spindle Motor 30 HP- Spindle Nose ISO #40- Spindle Speed 35-12000 RPM- Pallet Dimensions 19.69 x 19.69" (500 x 500 mm)- Max Pallet Load 500 LB- Max Dia. Tool Handled By ATC 5.91" (150 mm)- Machine Eight 23408 LB (10640 Kg)- Overall Dimensions 127.17" W x 158.54" D x 103.19" H (3230 x 4027 x 2621 mm
