USED WITTMANN TEMPRO PLUS 200F

1. Advantage Engineering 3K-1035VEP
(Sentra SK-1035-VE series — "3K" prefix likely denotes 3-phase, 10kW)

Parameter Value
Heater Capacity 10 kW
Max Temperature 250°F
Min Temperature 32°F
Pump 3/4 HP / 35 GPM / 30 PSI
Cooling Valve 3/8" Solenoid
Voltage 230/460/575 V — 3ph — 60Hz
FLA (460V) 14.3 A
Process Connections 1¼" in/out
Dimensions (H×W×D) 28¼" × 12½" × 19½"
Shipping Weight 208 lbs
Control Type VE Series Digital

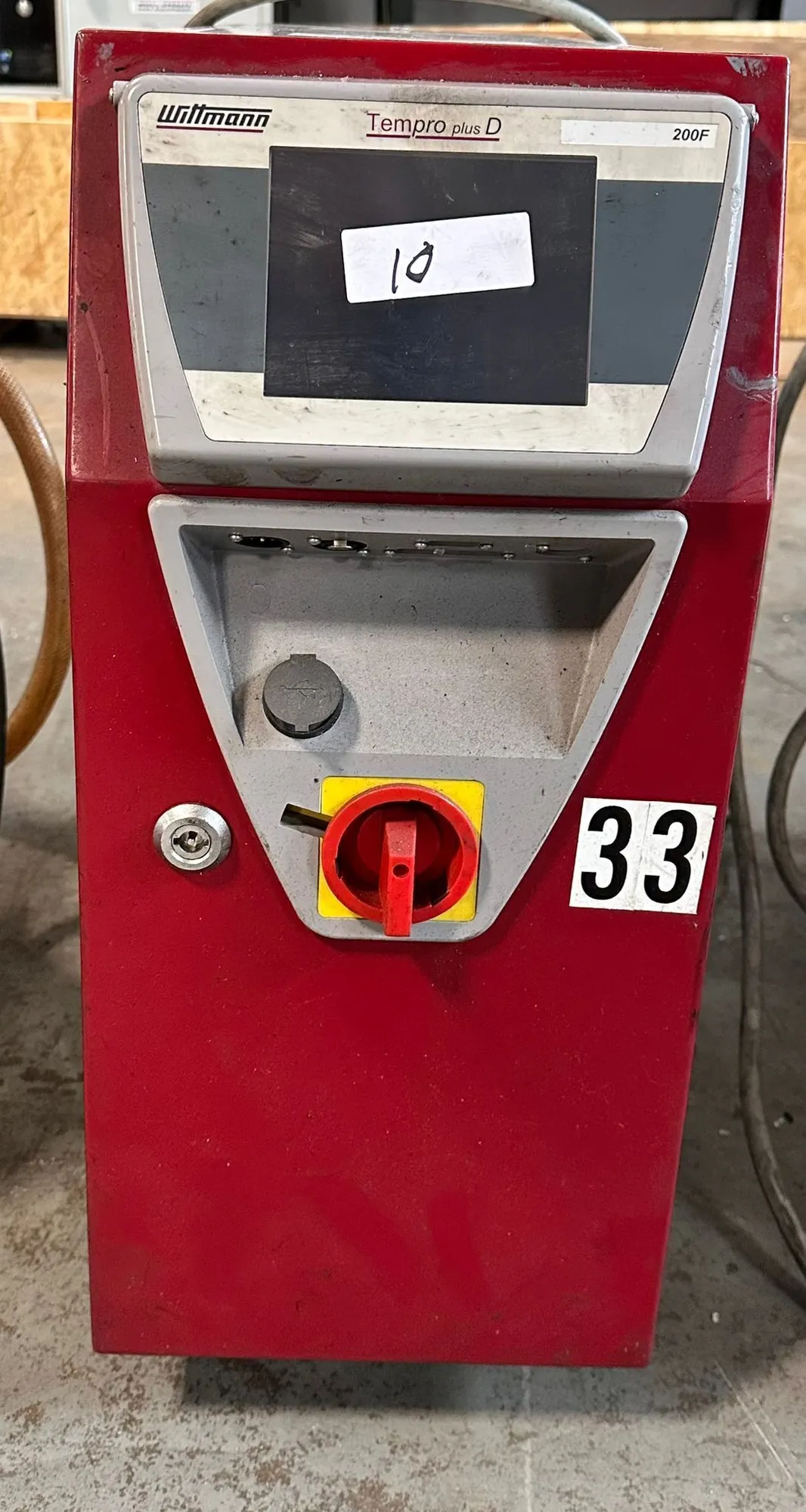

2. Wittmann Tempro Plus 200F
(Water unit — up to 200°F)

Parameter Value
Max Temperature 200°F (93°C)
Heating Capacity 18 kW
Pump 1.5 kW standard / up to 3.5 kW enhanced
Max Flow Rate 200 l/min (53 GPM)
Max Pressure up to 5.9 bar (85 psi)
Cooling Valve 3/8" standard
Mold Connection G 1¼"
Power Supply 3 × 380–415 V / 50Hz (or 460V/60Hz NA version)
Control Self-optimizing PID microprocessor
Accuracy ±0.2°C
3. Matsui Plus AID
⚠️ "Plus AID" is not in Matsui's current lineup — this may be an older model designation. Closest current equivalent is the MC5 series. Specs below are for reference:

Parameter Value
Max Temperature 203°F (standard) / 248°F (high temp)
Heater Capacity 4–9 kW (model dependent)
Pump Flow Rate 10.2–22.7 GPM (60Hz)
Power Supply 230V or 460V — 3ph — 50/60Hz
Temperature Accuracy ±1°C
Control K-type thermocouple input
4. Conair Tempro TC1-D1
(Water temperature control unit)

Parameter Value
Type Single zone water TCU
Media Water
Voltage 460V / 3ph / 60Hz
Control Digital
Manufacturer Conair (now part of Conair Group — Thermolator line)
