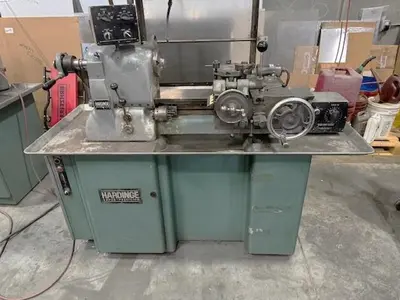

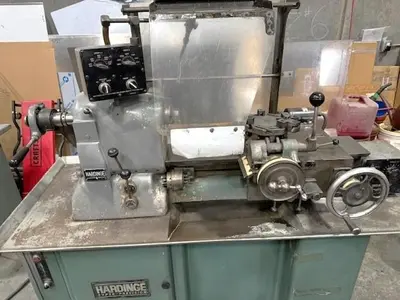

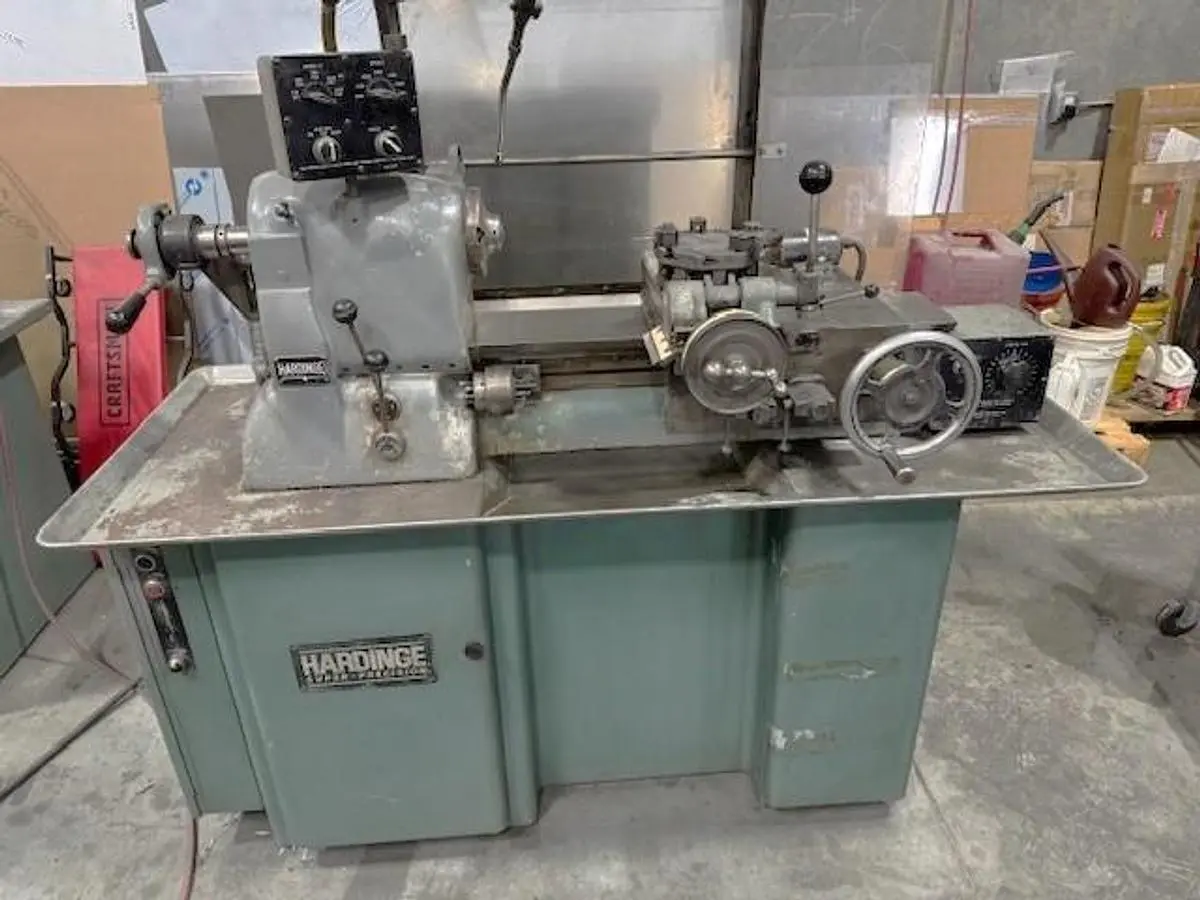

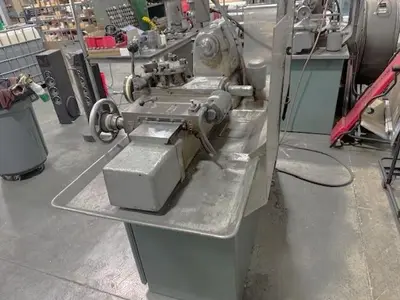

USED HARDINGE HC SUPER PRECISION CHUCKER TOOL ROOM LATHE

Collet Closer

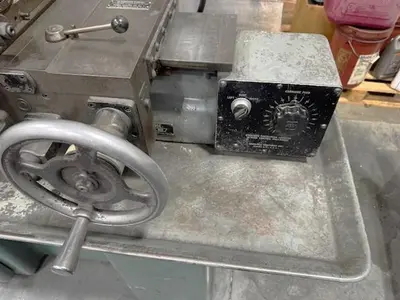

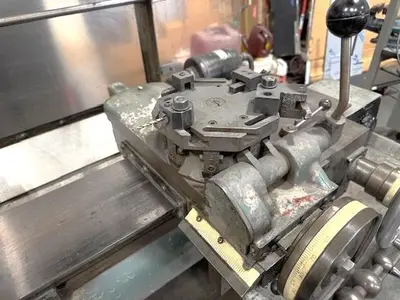

8 Station Turret Cross Slide Attachment

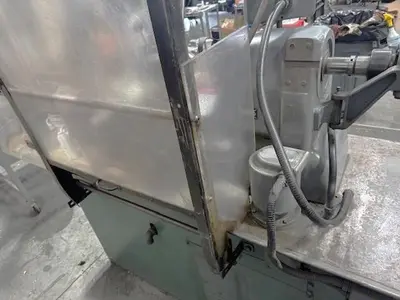

Backside Coolant Splash Guarding
Miscellaneous Tooling

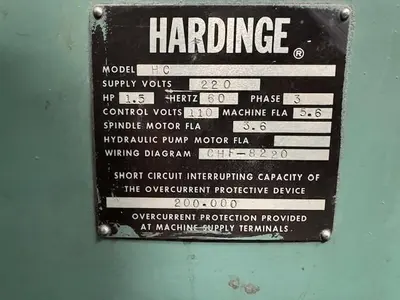

Wired 220V 3 Phase Power

The 1977 Hardinge HC Super Precision Chucker Tool Room Lathe is a reliable and precise conventional machine designed for high-quality machining tasks. It offers a maximum swing of 9 inches and a distance between centers of 13 inches, making it suitable for various small to medium-sized workpieces. The lathe features a cross slide travel of 4.5 inches and comes equipped with a Tapered Nose spindle that has a bore of 1.25 inches. For enhanced versatility, it supports spindle speeds ranging from 125 to 3,000 RPM powered by a 1.5 HP motor.

Additionally, the spindle is compatible with 5C collets, providing a spindle capacity of 1 1/16 inches. The tailstock spindle diameter is 1.375 inches with a #2 Morse Taper, which is ideal for precise tailstock operations. The overall machine dimensions are 70 inches by 30 inches by 57 inches, and it weighs 1,700 pounds, indicating it is a robust piece of equipment built to handle rigorous usage while maintaining stability.

This specific model, known for its fine engineering, caters to precision machining tasks and is regarded as an excellent performer in tool room settings. This lathe is a great option for those in need of a durable and accurate machining solution.

Maximum Swing: 9"
Distance Between Centers: 13"
Cross Slide Travel: 4.5"
Spindle Nose: Tapered Nose
Spindle Bore: 1.25"
Spindle Capacity with 5C Collets: 1 1/16"

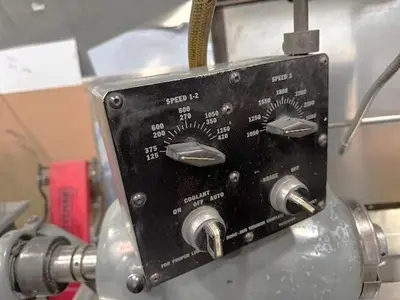

Spindle Speeds: 125 - 3,000 RPM
Spindle Motor: 1.5 HP
Tailstock Spindle Diameter / Taper: 1.375" / #2 MT
Machine Dimensions: 70" x 30" x 57"
Machine Weight: 1,700 lbs.
