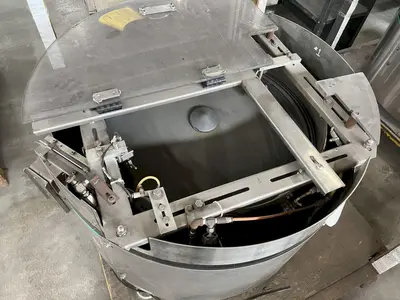

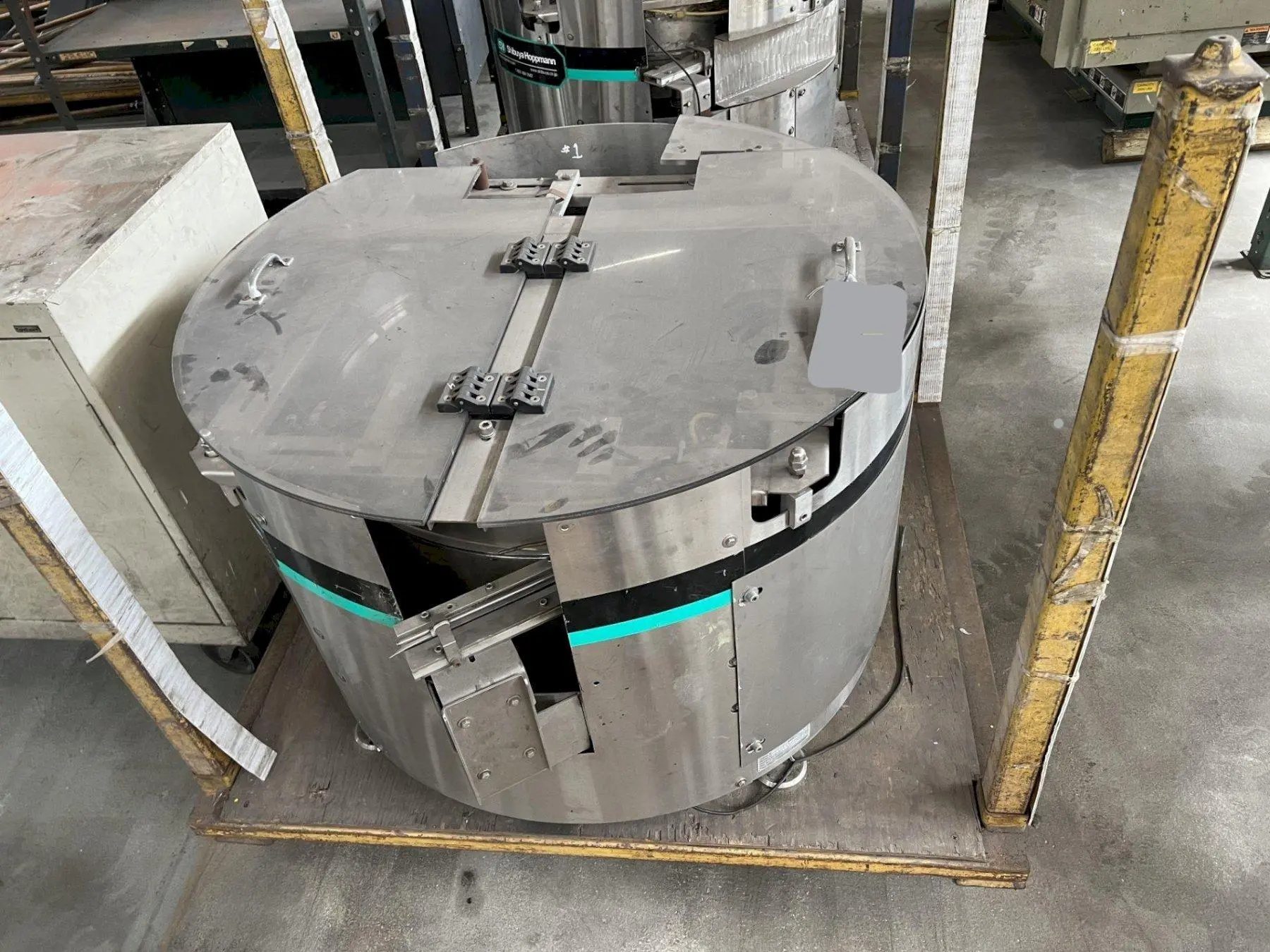

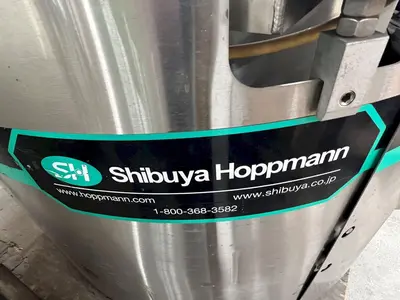

USED 2011 HOPPMANN FEEEDER FT-30 GE

Performance Specifications -------------------- ANSI ---- MetricMaximum Bowl Linear Speed (@ Rim ID)------------300 feet/min --- 91 meters/min Vertical Bowl Runout (Maximum)------------------ 0.010" --- 0.254mm Vertical Disc Runout (Maximum)------------------ 0.125" --- 3.175mmElectrical Specifications----------------- DC --- AC Motor Size------------------------------ 1/3hp--- 1/3hp Motor Frame Size------------------------ NEMA 56C--- 56C Supply Voltage ------------------------- 90 Volts --- 230/460 3 RPM ------------------------------------ 1750 --- 1725 Power Usage ---------------------------- 5 Amps --- 3 AmpsDimension Specifications------------------ ANSI --- MetricOuter Wall Diameter--------------------- 40.10" --- 1018.5mm Overall Frame Height ------------------- 27.13" --- 689.1mm Bowl Discharge Height ------------------ 17.88" --- 454.2mm Bowl Outside Diameter ------------------ 36.13" --- 918mm Bowl Inside Diameter ------------------- 28.80" --- 731.5mm Rim Width ------------------------------- 3.67" --- 93mm Bowl Depth ------------------------------ 4.50" --- 114.3mmLevel Foot Adjustment ----------------- ± 2.75" --- ±69.9mm Disc Diameter --------------------------- 28.50 --- 724mm Disc–Bowl Gap ---------------------------0.015" --- 0.38mm Overall Weight (Untooled)------------ ≈ 350 lbs --- ≈ 159 kg
