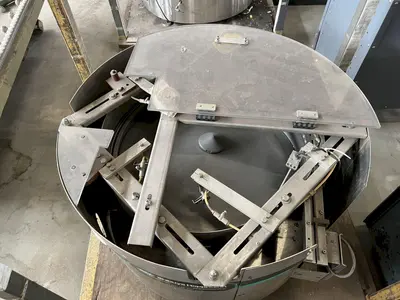

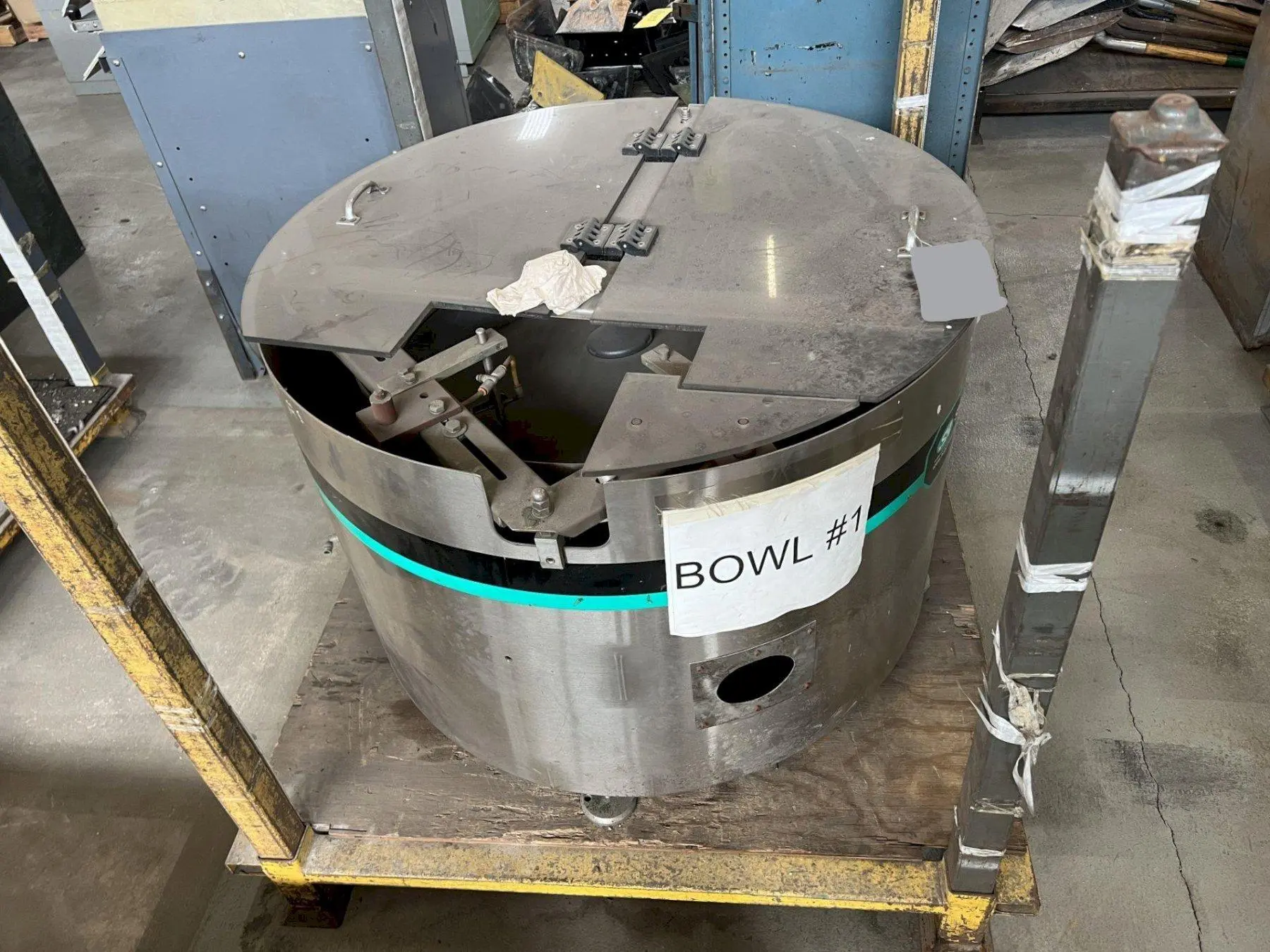

USED 2011 HOPPMANN FEEDER FT-30 GE

Performance Specifications -------------------- ANSI ---- MetricMaximum Bowl Linear Speed (@ Rim ID)------------300 feet/min --- 91 meters/minVertical Bowl Runout (Maximum)------------------ 0.010" --- 0.254mmVertical Disc Runout (Maximum)------------------ 0.125" --- 3.175mmElectrical Specifications----------------- DC --- ACMotor Size------------------------------ 1/3hp--- 1/3hpMotor Frame Size------------------------ NEMA 56C--- 56CSupply Voltage ------------------------- 90 Volts --- 230/460 3RPM ------------------------------------ 1750 --- 1725Power Usage ---------------------------- 5 Amps --- 3 AmpsDimension Specifications------------------ ANSI --- MetricOuter Wall Diameter--------------------- 40.10" --- 1018.5mmOverall Frame Height ------------------- 27.13" --- 689.1mmBowl Discharge Height ------------------ 17.88" --- 454.2mmBowl Outside Diameter ------------------ 36.13" --- 918mmBowl Inside Diameter ------------------- 28.80" --- 731.5mmRim Width ------------------------------- 3.67" --- 93mmBowl Depth ------------------------------ 4.50" --- 114.3mmLevel Foot Adjustment ----------------- ± 2.75" --- ±69.9mm Disc Diameter --------------------------- 28.50 --- 724mmDisc–Bowl Gap ---------------------------0.015" --- 0.38mmOverall Weight (Untooled)------------ ≈ 350 lbs --- ≈ 159 kg
