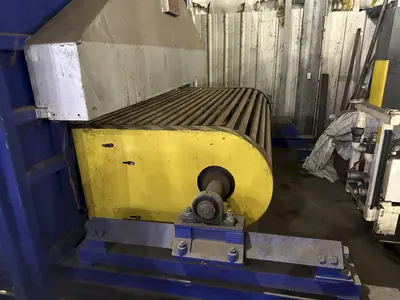

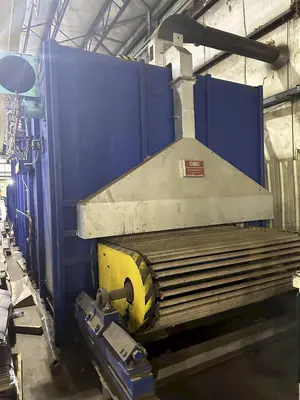

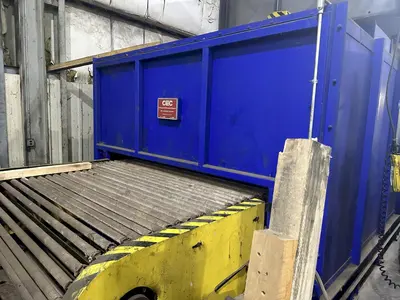

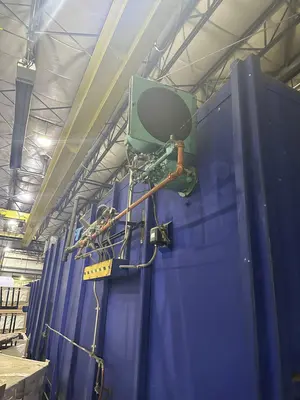

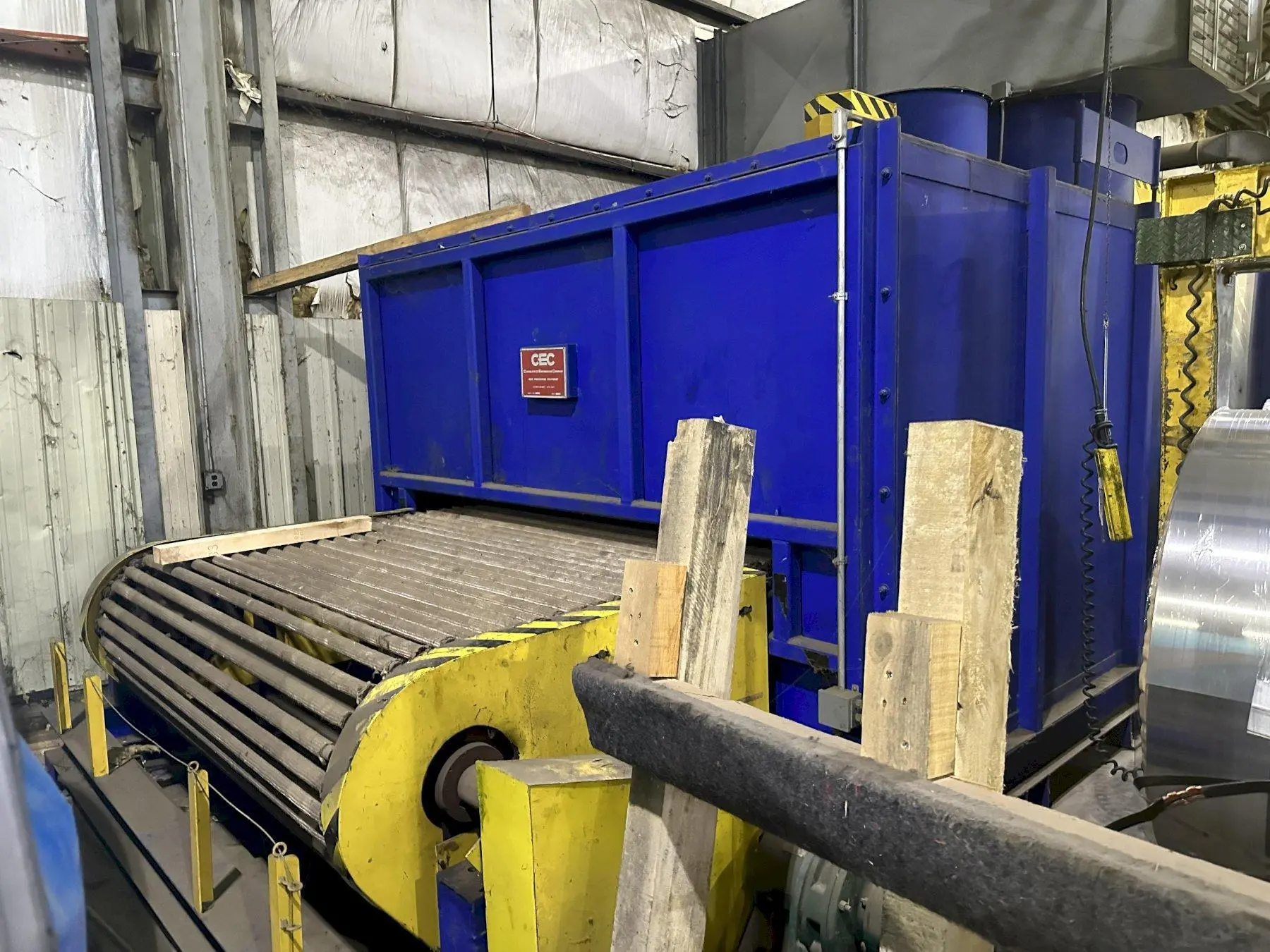

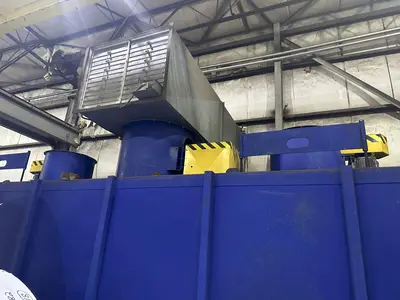

92" CONSOLIDATED ENGEERING COMPANY ANNEALING OVEN. STOCK # 1163323

TEMPARTURE: HEAT........................: 775DEG F USING 850DEG F AIR TEMPARTURECOOL........................: 150DEG F USING 90DEG F AIR TEMPARTUREELECTRICS...................: 480 VOLTS, 3 PHASE 60 CYCLEPRODUCTION:5,000 LBS PER HOUR OF ALUMINUM DISCS 5" TO 36" DIAMETER AND .015" TO .375" THICK. THE FURNACE LENGTH IS BASED ON A 60% COVERAGE OF THE CONVEYOR. IF THE BELT CAN BE COVERED 75% TO 80% THE PRODUCTION COULD BE INCREASED IN THE DIRECT PROPORTION
