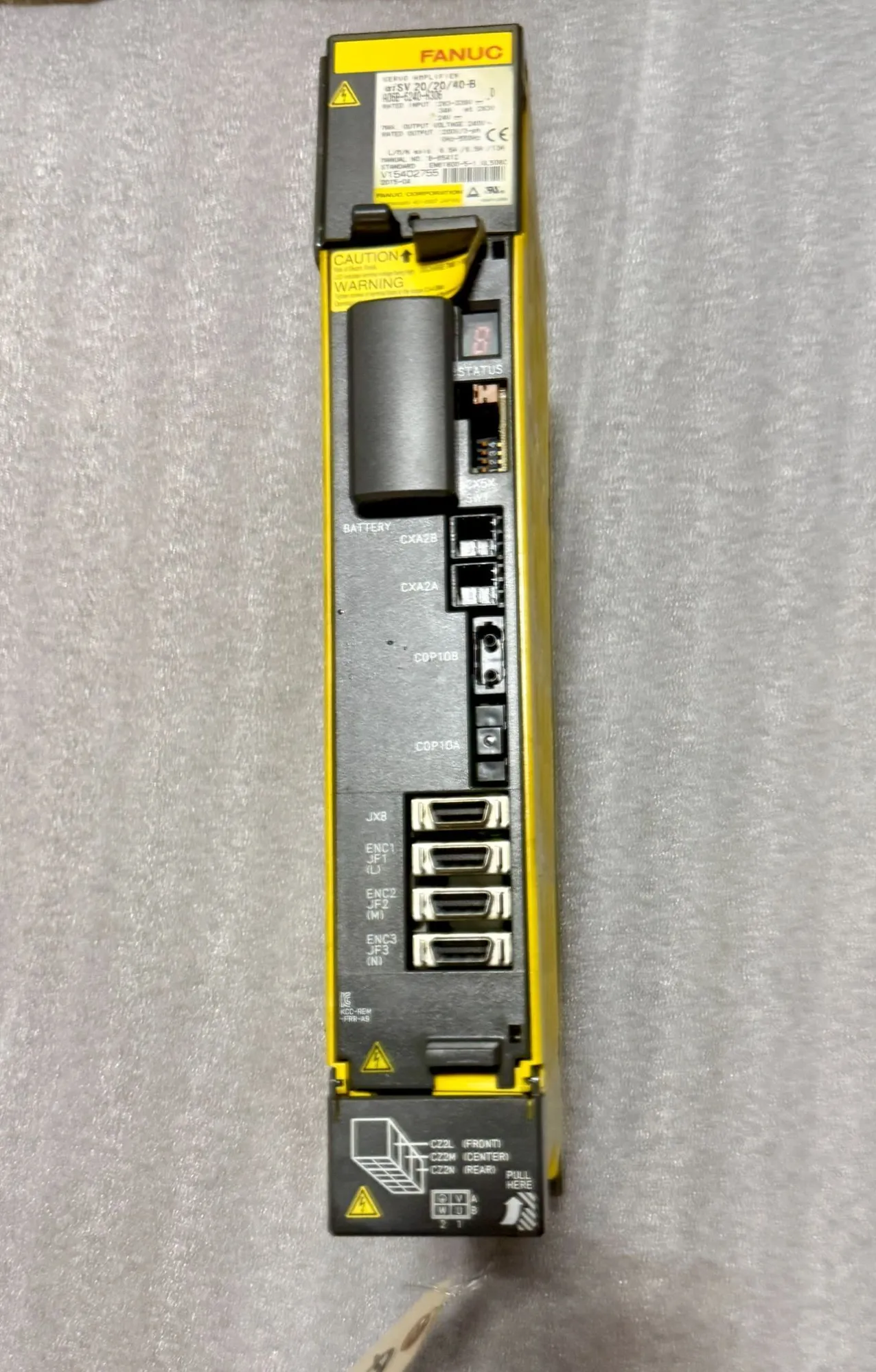

FANUC A06B-6240-H306 SERVO AMPLIFIER
| Mfr Part Number | A06B-6240-H306 | A06B-6240-H306 |
| Product Type | Servo Amplifier Module AiSV 20/20/40 | Servo Amplifier Module AiSV 20/20/40 |
| Function | Servo Control | Servo Control |
| # Axis | 3 | 3 |
| Rated Input | 283-339 VDC | 0 kW |
| Output Voltage | 240 VAC Max | 240 V |
| L-Axis Rated Output Current | 6.5 A | 6.5 A |
| M-Axis Rated Output Current | 6.5 A | 6.5 A |
| N-Axis Rated Output Current | 13 A | 13 A |
| Rated Output | 200 V | 200 V |
| Phase - Electrical | 3-Phase | 3-Phase |
| Frequency | 0 - 550 Hz | 550 Hz |
| Manual No | B-65412 | B-65412 |
| Standards | EN61800-5-1, UL508C | EN61800-5-1, UL508C |
| Dimensions | 15" x 7" x 14" | 15" x 7" x 14" |
| Weight | 19 lbs | 19 lbs |
